User interface

Focus:

Show/hide: View | Appearance | Navigation Bar

The navigation bar is a quick alternative to the Solution Explorer, where you can go through the structure of your solution, open specific files, and jump to specific code elements in the current file.

It is located in the status bar at the bottom of the main window. You can change its location: in the main menu, go to View | Appearance | Navigation Bar and select Top to display the navigation bar in the top part of the IDE window or Don't show to disable it.

Focus:

Use the editor to read, write, and explore your source code , resources, and decompiled code.

Open the list of available actions:

Various icons that appear in the gutter, for example, , help you notice quick-fixes and other actions. Clicking such action indicator or pressing opens an action list with all other actions that are available at the current caret position.

Show/hide: View | Appearance | Status Bar

The left part of the status bar at the bottom of the main window shows the most recent event messages. Click a message in the status bar to open it in the Notifications tool window. Right-click the message in the status bar and select Copy to paste the message text when you are searching for a solution to a problem or need to add it to a support ticket or to the JetBrains Rider issue tracker.

The status bar also shows the progress of background tasks. You can click to show the Background Tasks manager.

The right part of the status bar contains widgets that indicate the overall project and IDE status and provide access to various settings. Depending on the set of plugins and configuration settings, the set of widgets can change. Right-click the status bar to select the widgets that you want to show or hide.

The blinking icon in the status bar indicates that an internal IDE error has occurred. Click to view the error descriptions and submit reports.

Show/hide: View | Tool Windows

Tool windows provide functionality that supplements editing code. For example, the Explorer tool window shows you the structure of your solution, and the Run tool window displays the output of your application when you run it.

By default, tool windows are docked to the sides and bottom of the main window. You can arrange them as necessary, undock, resize, hide, and so on. Right-click the title of the tool window or click in the title for its arrangement options.

You can assign shortcuts to quickly access the tool windows that you frequently use. Some of them have shortcuts by default. For example, to open the Project tool window , press , and to open the Terminal tool window, press . To jump from the editor to the last active tool window, press .

You can right-click various elements of the interface to see the actions available in the current context of this element. For example, right-click a file in the Project tool window for actions related to that file, or right-click in the editor to see actions that apply to the current code fragment.

Most of these actions can also be performed from the main menu at the top of the screen or the main window. Actions with shortcuts show the shortcut next to the action name.

Popup menus provide quick access for actions related to the current IDE and solution context. Here are some useful popup menus and their shortcuts:

• opens the Generate popup for generating boilerplate code based on the context.

• opens the Refactor This popup with a list of contextually available refactorings.

• in the Project tool window opens the New popup for adding new files and directories to your solution.

• opens the VCS Operations popup with contextually available actions for your version control system.

• opens the NuGet quick list with most frequently used NuGet actions.

• opens the Unit Testing Quick List with all unit testing actions.

You can create custom popup menus using quick lists of actions that you often use.

The bars on the sides of the main window contain icons of tool windows. Click an icon to show or hide the tool window. A right-click on an icon will open the context menu, where you can hide or move the tool window. You can also drag tool window icons to rearrange tool windows.

Tool window icons in the upper parts of the left and right bars open vertical tool windows on the left and right sides of the IDE window.

The icons in the bottom parts of the bars open horizontal tool windows at the bottom of the IDE window.

Learn more from Tool window bars and buttons.

Several widgets are located in the toolbar in the window header. From left to right:

1. Main menu (Windows and Linux only)

   The main menu is now hidden under the menu icon. To access menu categories, click the icon or press . The elements will appear horizontally over other header widgets.

   You can display the main menu as a separate toolbar: go to Settings | Appearance & Behavior | Appearance and enable the Show main menu in a separate toolbar option. Alternatively, go to View | Appearance and enable Show Main Menu in Separate Toolbar.

2. Navigation widget

   The arrows on the toolbar help you move through navigation history.

3. Project widget

   The widget shows the name of the current solution, allows switching between recent solutions, creating new solutions, and opening existing ones.

4. Task widget

   The widget allows switching between tasks.

5. VCS widget

   The widget shows the current branch, allows switching branches, and provides the most popular VCS actions like update project, commit and push changes.

   It has replaced the branch widget previously located in the status bar at the bottom of the main window, and VCS actions icons previously located in the navigation bar in the upper right corner.

6. Build widget

   The widget allows you to start and stop solution build and provides access to build configurations.

7. Run widget

   The widget allows you to start run/debug configurations, select other configurations to run, and change the mode for the current configuration (run or debug). You can edit, pin, or delete configurations using this widget.

   When a process is running, you can restart or stop it using the widget.

tip

The toolbar in the window header is customizable. You can add and remove widgets and buttons, change the toolbar color and project icon, or hide the toolbar.

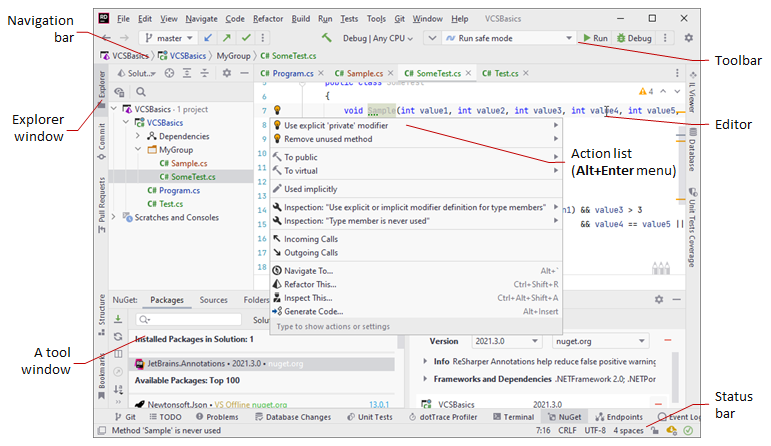

Toolbar in the classic UI

• If version control integration is enabled for the current solution, VCS operation widget displays the current VCS branch and lets you quickly perform various VCS operations.

• You can build the current solution and change build configurations.

• The run configuration widget displays and allows changing the current run configuration and also lets you run and debug it.

The gutter is the panel located in the editor on the left. It contains action icons that allow you to fix code issues, run or debug your code, and use other framework-specific features. Line numbers, breakpoints, and bookmarks are also shown in the gutter.

The gutter also allows you to fold code, marks modified lines for projects under version control, and shows code coverage results.

The main window lets you work with a single solution. You can open multiple solutions in multiple windows . By default, the window header displays the name of the current solution. You can hover it to see the full path to the current file.

To show the full path to the current solution, select Always show full paths in window header on the Appearance & Behavior | Appearance settings page  .
