Similar Retention

The Similar Retention view groups objects by the similarity of their retention paths. For each object set, the view shows the two shortest paths to roots. Note that from the whole variety of shortest paths, dotMemory selects only two paths that are most different from each other.

The Similar Retention view allows you to distinguish where the objects of the same type logically belong. For example, several int variables in an array will have the same retention path, which is different from variables of any other int array.

You can also use Similar Retention to identify why an object is still in memory. For example, it may be helpful when investigating potential memory leaks caused by objects retained on multiple paths (refer to Group by Dominators for details).

The list of objects for which the graph is built consists of the following columns:

Name

Description

Type

Type name.

Objects count

The number of objects with the same retention path.

Bytes

The overall size of objects in bytes.

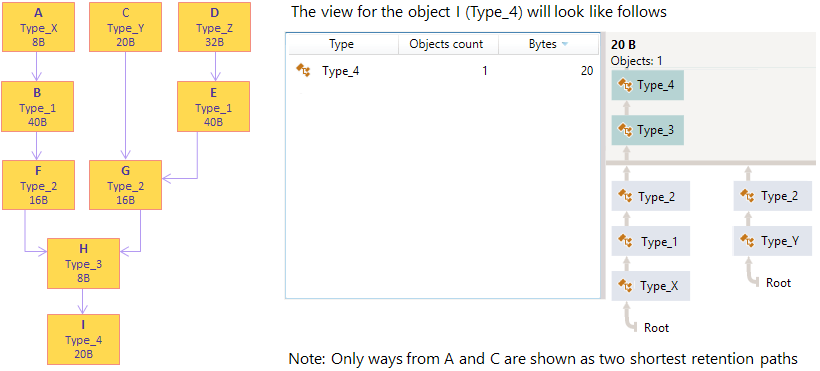

Example

Group by Similar Retention example

Filter objects

You can filter out objects that are of no interest to your analysis by type .

To narrow the list

  • Start typing the desired string pattern. dotMemory will highlight matching strings.

You can make your search more efficient by using the following tips:

  • Use CamelHumps. E.g. fo will return objects of both System.Drawing.Font and MS.Utility.FrugalObjectList types.

  • Use special symbols, like wildcards and others. The full list is shown in the table below.

Special symbols and filter examples

Symbol

Description

Example

*

Wildcard

*


All objects in the set

sys.*.data


All types and namespaces that match the pattern. E.g. System.Data, System.Windows.Controls.Datagrid, and System.Windows.Data.Binding.

sys.*.data.


Only namespaces that match the pattern. E.g. System.Windows.Data.Binding but not System.Windows.Controls.Datagrid.

Arrays

[]

Leave only arrays

str[]


Arrays, containing str in their type or namespace. E.g. String[].

[,


[,,


...


or


[,]


[,,]


...

Leave only arrays of the specified or higher (if brackets are not closed) dimension

str[,,


Arrays with the dimension 3 and higher containing str in their type or namespace. E.g. String[,,] and String[,,,].

str[,,]


Three-dimensional arrays containing str in their type or namespace. E.g. String[,,].

!a

Exclude arrays from the result

!a str


Objects (excluding arrays) containing str in their type or namespace. E.g. String but not String[].

Generic type arguments

<

Leave only types with generic type arguments

str<


Only objects containing str in their type or namespace and having generic type arguments. E.g. FileStreamStorage<Char> but not List<String>.

<str


Only objects containing str in their generic type arguments. E.g. List<String> but not FileStreamStorage<Char>.

<,


<,,


...


or


<,>


<,,>


...


Leave only objects with the specified number of generic type arguments

fun<,,>


Objects containing fun in their type or namespace and having three generic type arguments. E.g. Func<String, Object, Object>.

fun<str,,task


Objects containing fun in their type or namespace and having three or generic type arguments that match the pattern. E.g. Func<Stream, IAsyncResult, TaskResult, EventArgs>.

!g

Exclude generic type arguments from the search scope

!g str


Objects (that do not have generic type arguments) containing str in their type or namespace. E.g. String but not List<String>.

#c


#struct


#m


#ns

Search by type, value type, method, or namespace.

#ns Feature


Objects containing Feature in their namespace.

Select objects for further analysis

In the Similar Retention view, you can select the following subjects for further analysis:

To select objects of a particular type retained in the same way

  • Double-click the corresponding type in the list.

    After this, the [Type_name] with same retention paths subject will be added to the Analysis Path and the list of desired objects will be displayed in the Group by Types view.

To select the objects that are exclusively retained by the analyzed objects set

  • Click the Open retained objects Open objects retained by this set button.

    After this, the Exclusively retained objects subject will be added to the Analysis Path and the list of desired objects will be displayed in the Group by Types view.
