Shortest Paths to Roots

The Shortest Paths to Roots group of views shows the shortest paths to an instance from the application's roots: the shortest path for each root.

For convenience, dotMemory presents paths in two ways: as a plain list (Shortest Paths) and as a tree (Merged Shortest Paths). To select a certain way, click the corresponding button in the list of views.

Use the views to inspect the instance's retention paths and identify what prevents the instance from being collected. This can be useful when investigating not exclusively retained objects (For more information, refer to Group by Dominators).

Shortest Paths

For each path to roots, dotMemory shows the plain list of objects that reference the instance starting with an app's root. This can be useful when you want to examine the entire retention path.

To switch between paths, use the arrow buttons < > on the top of the list.

The list of paths consists of the following columns:

Name

Description

Field name

The name of the field through which an instance is retained.

Type

Type name.

Merged Shortest Paths

All paths to roots are shown in one expanding list. The list starts with the instance and descends to app's roots. This may be useful when you don't want to drill down the full retention hierarchy but just want to identify the closest object that holds the instance in memory.

The list of paths consists of the following columns:

Name

Description

Type

Type name.

Reachable roots count

The number of roots that can be reached from a certain instance.

Bytes

The size of a certain instance in bytes.

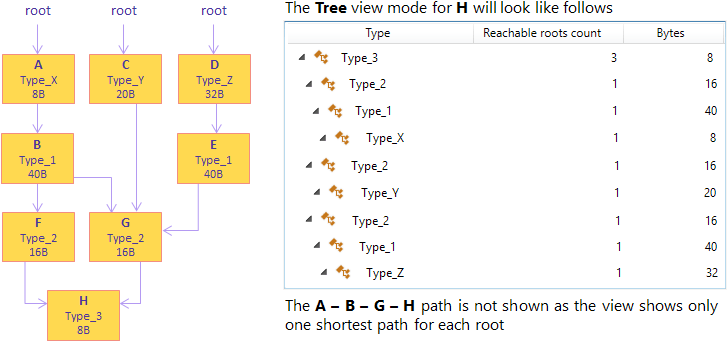

Example

Shortest Paths to Roots example

Select objects for further analysis

In the Shortest Paths to Roots view, you can select the following subjects for further analysis:

To select a particular instance

  • Do one of the following:

    • Double-click the instance in the list.

    • Right-click the instance and choose Open this instance.

    After this, the Shortest path to root subject will be added to the Analysis Path and you can use specific instance views to analyze the instance in more details.

To select the objects that are exclusively retained by the analyzed objects set

  • Click the Open retained objects Open objects retained by this set button.

    After this, the Exclusively retained objects subject will be added to the Analysis Path and the list of desired objects will be displayed in the Group by Types view.
