Gogs Integration

Follow the instructions on this page to integrate your project with VCS repositories that are hosted on a self-hosted Gogs server.

A Gogs integration enables the following features in YouTrack:

  • Apply commands to YouTrack issues in commit messages. For more information, see Apply Commands in VCS Commits.

  • Track commits that are related to specific issues in the activity stream for each issue. For more information, see Commits.

  • Display the status of pull (merge) requests directly in the activity stream of any issue that is referenced in the title or description of the pull request. For details, see Pull Requests.

  • Add links to YouTrack issues in commit messages or branch names. For more information, see Link Issues in VCS Commits.

Prerequisites

  • YouTrack is accessible to inbound connections. Specifically, you need to make sure that your network doesn't block connections between your VCS server and YouTrack.

  • The account that you use to connect to Gogs has access to the Gogs repository that you want to use with this integration. This is the user account whose private token is used for authentication. You can either use an account that has at least Master or Owner access level in the project or a Gogs administrator account.

If you're integrating with a Gogs installation and want to establish a secure (HTTPS) connection with the server, you may need to import the SSL certificate for your Gogs server into YouTrack.

  • If your Gogs server has a valid certificate that is signed by a well-known certificate authority (CA), the JVM vendor may have already added the root (CA) certificate to the certificate store. You should be able to connect to the server without importing its SSL certificate.

  • If the certificate for your server is self-signed, you need to import the certificate and public key to establish a secure connection. For security, use this option only when both YouTrack and your Gogs server run on a private computer network. This operation is only available to users with Low-level Admin Read and Low-level Admin Write permissions. For details, see SSL Certificates.

Generate an Access Token in Gogs

The first thing you should do is generate an access token in Gogs. This token grants YouTrack access to the repository based on the access that is granted to your Gogs account. You can use a single access token to set up multiple integrations.

To generate token in Gogs:

  1. Log into Gogs, and click your avatar to open the user menu, then select Your settings item. Make sure that your Gogs user account has admin access to the repositories that you plan to integrate with YouTrack projects.

    Select Your Settings
  2. When the settings page opens, select the Applications in the sidebar.

    In the Manage personal access tokens section, click Generate New Token.

    Manage access tokens

    In the New Personal Access Token dialog, type a name for the token and click Generate Token button.

  3. When the new token is generated, copy it you will need it to configure the integration in YouTrack.

Configure the Gogs Integration

Now that you have a personal access token, switch to YouTrack to establish a connection with a Gogs repository. Make sure that you are logged in YouTrack with an account that is granted system administrator permissions.

To connect to a Gogs repository:

  1. Open the Administration > Integrations > VCS Integrations page in YouTrack.

  2. Click the New VCS Integration button.

    • The New VCS Integration dialog opens.

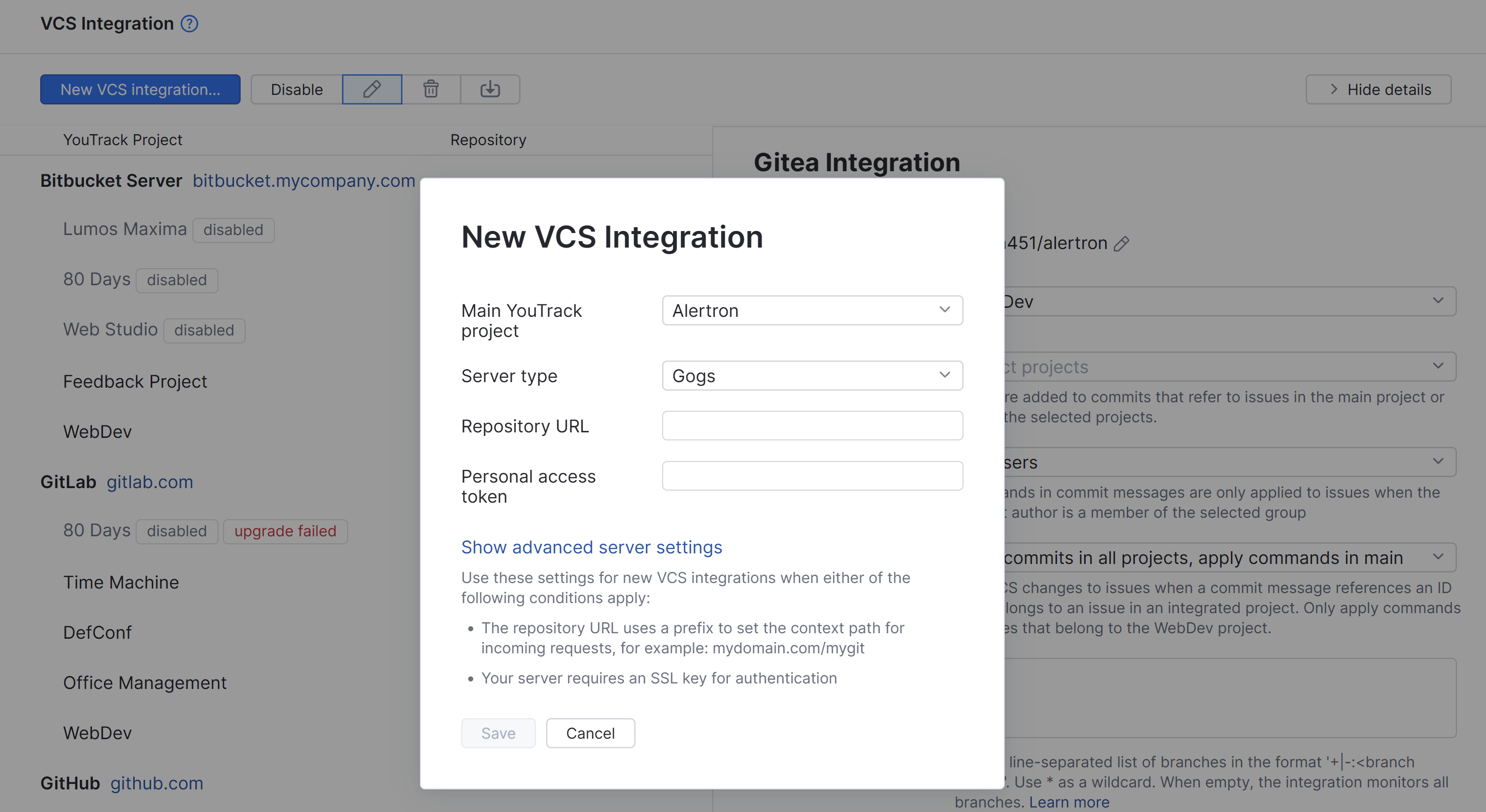

      The New VCS Integration dialog for an integration with Gogs.
  3. From the Main YouTrack project list, select the name of the primary project that you want to integrate with the VCS repository. You can add integrations with additional YouTrack projects after you have set up the connection to the repository.

  4. For the Server type, select Gogs.

  5. Paste the URL that points to your Gogs repository into the Repository URL input field.

  6. Paste the access token that you have generated into the Personal access token field.

  7. Click the Save button.

    • Your YouTrack project is integrated with the selected repository in Gogs.

    • Commits from the Gogs repository that reference an issue in the project are displayed in the activity stream of the referenced issue.

    • The sidebar displays additional settings for configuring the VCS integration.

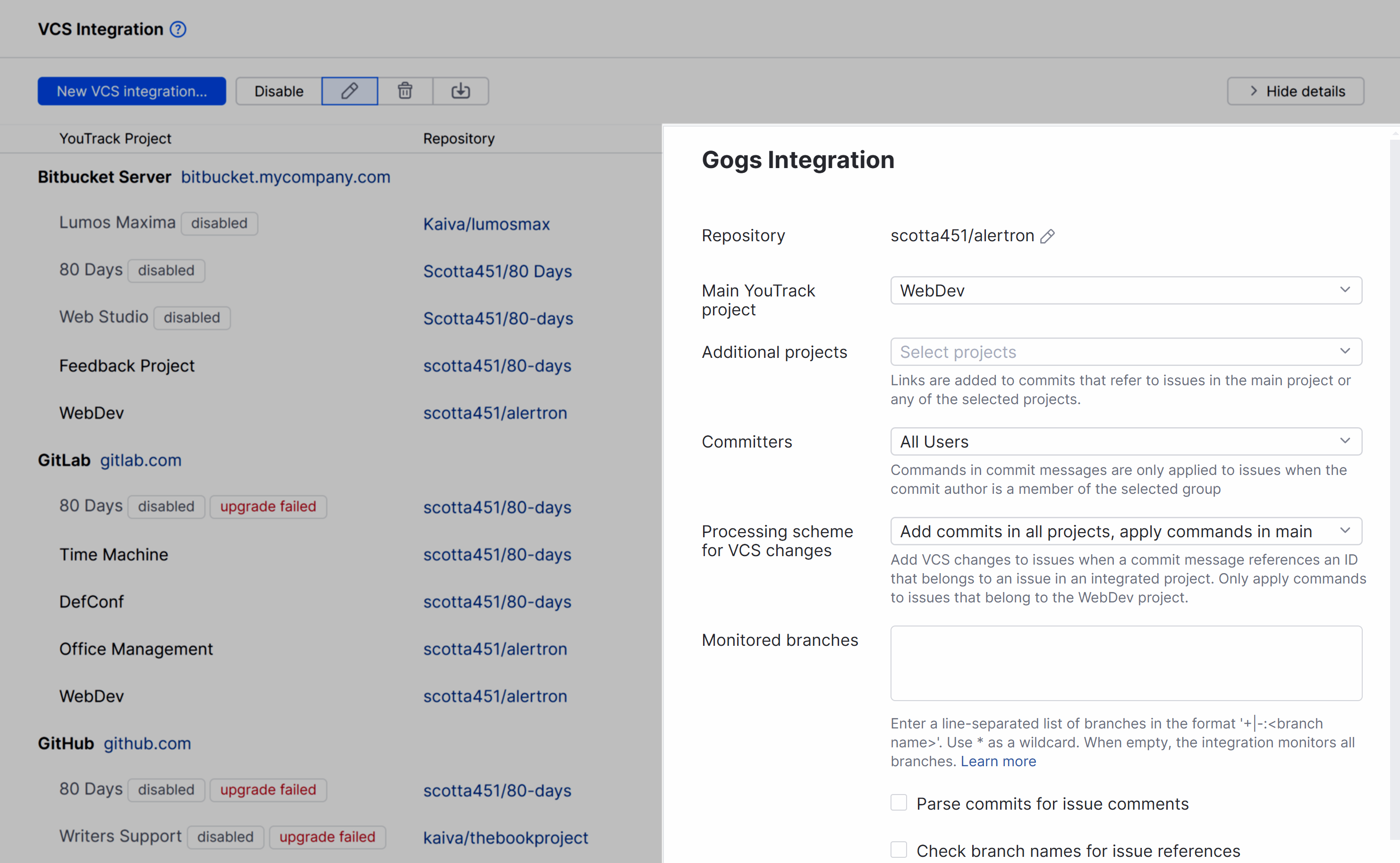

      Gogs integration settings

    To learn more about these settings, see Integration Settings.

Advanced Server Settings

If you are unable to establish a connection to your repository using the basic settings on the New VCS Integration dialog, click the Show advanced server settings link.

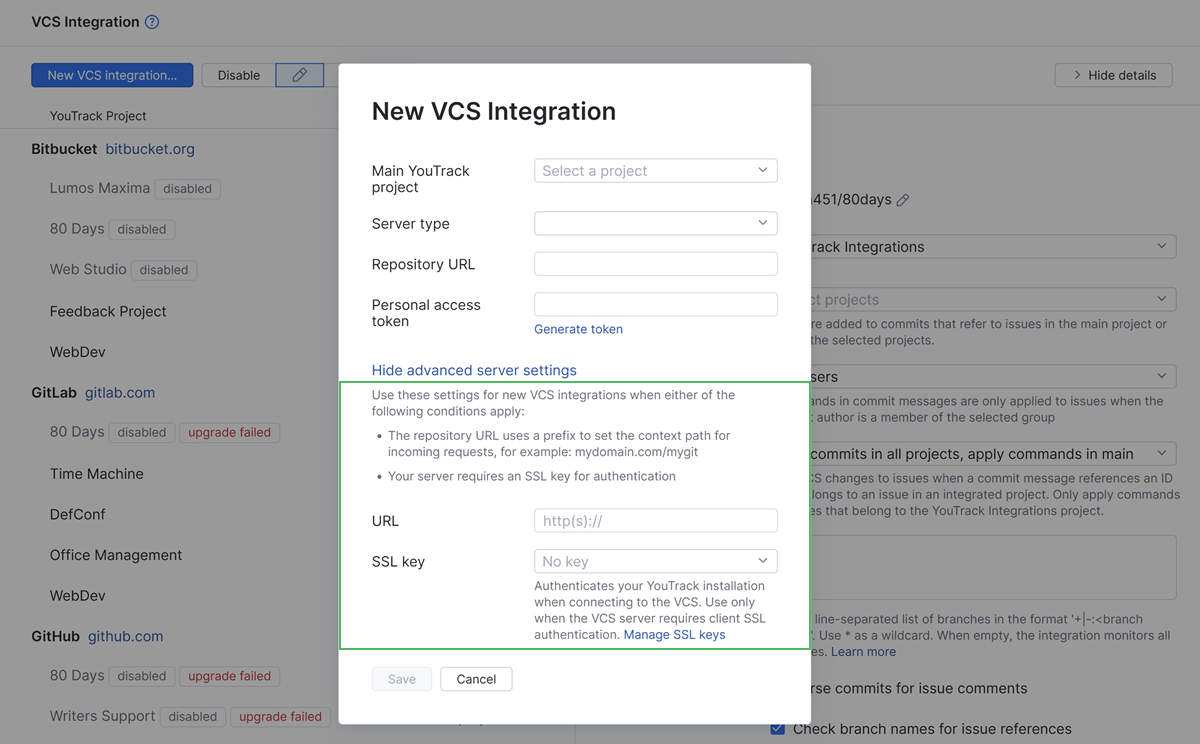

advanced server settings

You only need to enter values for these settings for new VCS integrations with the target server. If you already have a working integration with a single repository on the server, you can add integrations with other repositories without setting these parameters again.

Use the following guidelines to set the values for these settings:

Setting

Description

URL

This setting helps to identify the path to the Gogs repository. If the repositories for your Gogs server are available under https://host[:port]/SOME_CONTEXT_PATH, YouTrack is unable to determine where this context path ends and the actual path to the repository begins.

To resolve this problem, enter the base URL for your Gogs server. For example: https://host:port/context_path

SSL keys

If your server environment is set up to require client SSL authentication, select the keystore that contains the private key for your YouTrack server. This key identifies your YouTrack server when it tries to establish a connection with Gogs. This setting is only used to support HTTPS authentication as required by connections to your internal network.

The list only displays SSL keys that are already imported into YouTrack. To learn how to generate keystore files and upload them to YouTrack, see SSL Keys.

Integration Settings

By default, the VCS integration processes changes that are committed to the repository by any user in any branch. Any user who has access to the issue in YouTrack can view these changes in the issue activity stream.

If you only want to process changes by specific users in designated branches or restrict the visibility of VCS changes in YouTrack, you can customize the integration settings. Use the following settings to customize the integration:

Setting

Description

Repository

Displays the path to the repository in the integrated version control system.

If needed, you can edit the location of the repository after you have set up the integration. For instructions, see Edit Repository Settings.

Main YouTrack project

Sets the primary project in which the VCS integration is active.

Additional projects

Integrates the linked repository with one or more additional projects.

Committers

Restricts the ability to update issues with commands in commit messages to members of the specified group. VCS changes from users who are not members of the selected group are still attached to related issues, but any commands that are specified in their commits are ignored.

Processing scheme for VCS changes

Choose how to process VCS changes when the commit message references an issue ID. The following options are supported:

  • Add commits, ignore commands: Add VCS changes to issues when a commit message references an ID that belongs to an issue in an integrated project. Any command in the commit message is ignored.

  • Add commits in all projects, apply commands in main: Add VCS changes to issues when a commit message references an ID that belongs to an issue in an integrated project. Only apply commands to issues that belong to the currently selected main project.

  • Add commits and apply commands to all projects: Add VCS changes to issues when a commit message references an ID that belongs to an issue in an integrated project. Update issues in any integrated project when commit messages include commands.

Monitored branches

Stores the names of the branches that you want to monitor for changes.

  • Use + to include a branch.

  • Use - to exclude a branch.

  • For the branch name, use the fully qualified name of the branch. For example, refs/heads/<branch name>.

  • Use * as a wildcard. This placeholder matches one or more characters in a string. For example, to include all feature branches, use:

    +:refs/heads/feature/*

    You can only use one wildcard character per branch pattern. If you specify a pattern that contains more than one asterisk character, only the first is evaluated as a wildcard.

  • To monitor all branches, leave the input field empty.

If the address that you entered as the Repository URL when you connected to the repository points to a specific branch, this branch is automatically added to the list of monitored branches when you set up the connection.

Parse commits for issue comments

When enabled, specific lines of text in commit messages are copied to issues as comments. When you copy parts of the commit message to the issue as comments, you can trigger @mention notifications and expose information to users who don't have access to VCS changes.

This setting does not affect how commit messages are shown in VCS changes. The entire commit message, including commands and issue comments, is always shown as part of the VCS change record in the activity stream.

You should only enable this option when:

  • You want to mention other users in your commit messages and generate notifications when the text is copied to an issue comment.

  • You restrict the visibility for VCS changes and want to make commit-related information visible to external users as comments.

To learn more about how YouTrack processes commit messages, see Apply Commands in VCS Commits.

Check branch names for issue references

When enabled, the integration checks for references to issues in branch names for commits and pull requests. This option was added for teams that use a branch-per-ticket process, so their developers don't have to mention issue IDs in their commit messages explicitly.

VCS changes visibility

Restricts the visibility of VCS changes to one or more groups of users in YouTrack. When unrestricted, the list of VCS changes is visible to any user who has permission to read the issue.

Available Actions

When you select an integrated version control system in the list, the following actions are available in the toolbar:

Action

Description

Disable

Shuts off the connection between the integrated project and the VCS repository. The configuration is not changed and can be enabled at any time.

Edit

Opens the integration settings dialog in the sidebar for the selected project and repository.

Delete

Removes the settings for the integrated project from YouTrack.

This action also removes all VCS changes that were added to issues for commits in the linked repository.

Last modified: 09 October 2024
