Visual interface for EF Core commands

In Entity Framework Core projects — projects where Microsoft.EntityFrameworkCore.* 5.0.0 or later is installed — JetBrains Rider helps execute dotnet EF Core commands using a visual interface. Each command has a dedicated dialog that provides fields for most arguments that are allowed, autofills most of them, and ensures that all required arguments are specified and valid.

This functionality is a visual wrapper around the dotnet ef command; therefore, first you need to make sure that the corresponding dotnet tool is installed and available.

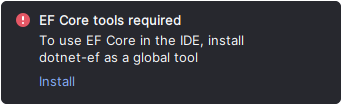

When you open a solution with at least one EF Core project, JetBrains Rider will check whether the dotnet ef is available as a local or as global tool (dotnet ef 5.0 or later is required). If not, it will prompt you to install the latest version as a global tool.

You can also install any other version using the corresponding command, for example:

dotnet tool install --global dotnet-ef

Execute EF Core commands

Select Tools | Entity Framework Core | [command name] from the main menu.
Right-click the desired project in the Solution Explorer and choose Entity Framework Core | [command name].

The details of specific EF Core commands are described in the dedicated topics:

Prerequisites

Target frameworks: netcoreapp3.1 and later for the Startup project, and netstandard2.1 and later for the Migrations project.
EF Core packages: Microsoft.EntityFrameworkCore.* 5.0.0 or later.
Tools: dotnet ef 5.0 or later.

Troubleshooting

Project does not appear in the 'Startup projects' field

Check that the desired project satisfies the following requirements:

Microsoft.EntityFrameworkCore.Design or Microsoft.EntityFrameworkCore.Tools NuGet package is installed.
Project's target framework is at least netcoreapp3.1.

`dotnet ef` tools installed globally are not working from the terminal

If you see the following message:

                    Could not execute because the specified command or file was not found.
                    Possible reasons for this include:
                        * You misspelled a built-in dotnet command.
                        * You intended to execute a .NET program, but dotnet-xyz does not exist.
                        * You intended to run a global tool, but a dotnet-prefixed executable with this name could not be found on the PATH.


Make sure that .dotnet/tools folder is included in the PATH environment variable. For more information, see this troubleshooting guide.

On Windows, you can also run the .NET SDK installer with the 'Repair' option.
