FlexInspect

Starting from version 2024.1 of IntelliJ IDEA, you can develop your own inspections specific to your project using the IntelliJ API and Kotlin under the Ultimate Plus license. You can:

  • Access the PSI representation of the source code.

  • Debug new inspections on the fly.

  • Observe your new custom inspections in action, including the highlighting of code fragments that don't behave as expected.

With FlexInspect, you get access to the same API that is used by all IntelliJ IDEA and Qodana inspections. This allows you to run these inspections on your entire project using Qodana to ensure that your entire team follows the standards defined by you.

You can develop local inspections that run within a file scope and global inspections that run within a project scope as described in the Run Qodana locally section, and you can even inspect your code in CI pipelines. Currently, FlexInspect supports any language covered by IntelliJ IDEA either natively or through additional plugins. For example, Java, Kotlin, JavaScript, TypeScript, PHP, Go, Python, Ruby, SQL, XML, CSS, YAML, JSON, Shell, and Dockerfile are supported.

Prerequisites

Start by verifying that IntelliJ IDEA is installed on your machine.

Then, ensure that your version of IntelliJ IDEA supports the language for which you want to develop an inspection. Out of the box, IntelliJ IDEA supports Java and Kotlin. The Ultimate edition of IntelliJ IDEA also provides default support for JavaScript and TypeScript. To get support for other languages like PHP, Go, and Python, you can install plugins from JetBrains Marketplace. More detailed information about language support is available via the IntelliJ IDEA documentation portal.

Since all inspections are developed using the Kotlin language, you'll need to know the basics of Kotlin before you can begin developing your own inspections.

How it works

You write your inspections in Kotlin and store them in the inspections directory of your project as .inspection.kts files. Each .inspection.kts file contains Kotlin code that is used to check your code using the API provided by the Program Structure Interface or PSI. IntelliJ IDEA reads .inspection.kts files, compiles the inspection code on the fly, and then executes the compiled inspections.

Program Structure Interface (PSI)

The PSI is an AST representation of your code corresponding to a source file's structure. In the case of Java code, the PSI reflects the basic blocks of a Java file like package and import statements, class statements, method invocations, and other nodes. FlexInspect uses the PSI tree representation of your code to obtain the list of the code nodes that can be inspected using your inspections.

In IntelliJ IDEA, you can navigate through the PSI using the PSI Viewer tool window. To do this, open a file that you would like to view with the PSI Viewer, and then navigate to Tools | View PSI Structure of Current File.

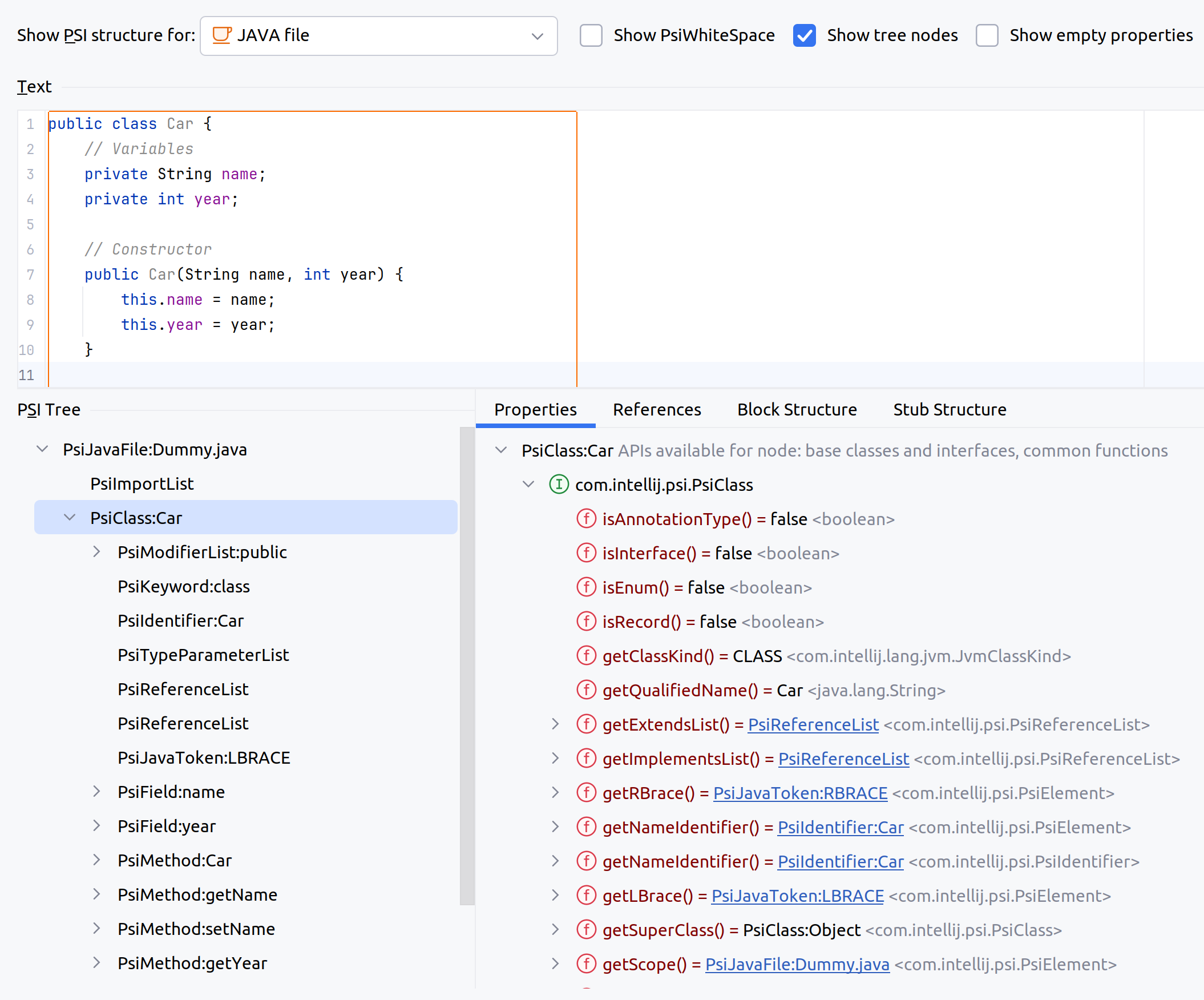

PSI tree overview

Inspection types

With IntelliJ IDEA, you can create both local and global inspections.

Local inspections operate on the file level and inspect each file of your project individually. Once you create a local inspection, IntelliJ IDEA will run it on any file opened in the editor.

Global inspections operate on the project level and use the project scope as a basis for inspection. For example, you can create inspections that can check whether specific files exist in your project. See the Run Qodana locally section of the documentation for more information about how to run global inspections.

How to start

This section shows how to create an example inspection that will inspect whether a Java class has a constructor method.

Create an inspection file

To create a new .inspection.kts template file, follow the procedure below.

  1. In your project, create an inspections directory.

  2. In the project navigator of IntelliJ IDEA, hover over the inspections directory, right-click on the directory, and then navigate to New | Custom Inspection.

  3. On the resultant dialog, you can choose from among various local and global inspection templates that you can use as a basis for your inspection. Empty local and global templates are universal for any language supported by FlexInspect, while the local Java, Kotlin, JavaScript, and Typescript templates are language-specific.

    Note that each file can contain multiple inspections, and CamelCase is the preferred naming method for .inspection.kts files.

Here's an animation showing you how to create an inspection following the above method.

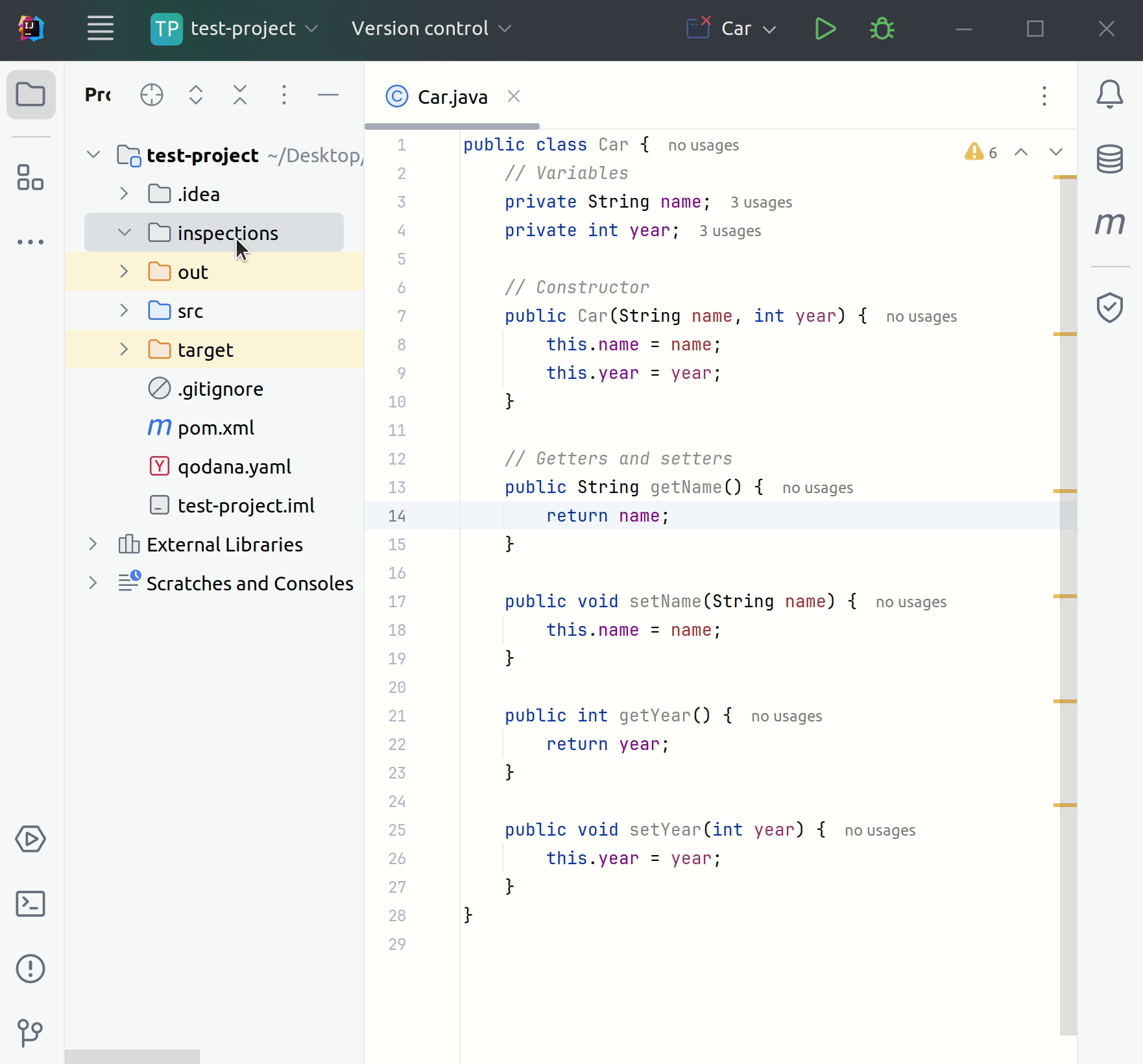

Creating a template inspection

The created file already contains code examples and explanations, which you can then use to develop your own inspection.

Review the PSI tree of your code

  1. In IntelliJ IDEA, open the file that you would like to analyze using your inspection.

  2. Navigate to Tools | View PSI Structure of Current File. Here, you can explore the PSI tree of your file. APIs are available for PSI nodes contained in the file. These APIs can generate algorithms that would operate within the PSI tree.

For example, to check whether a method is a constructor, you can use the isConstructor() PSI method, which is available for each method of a class.

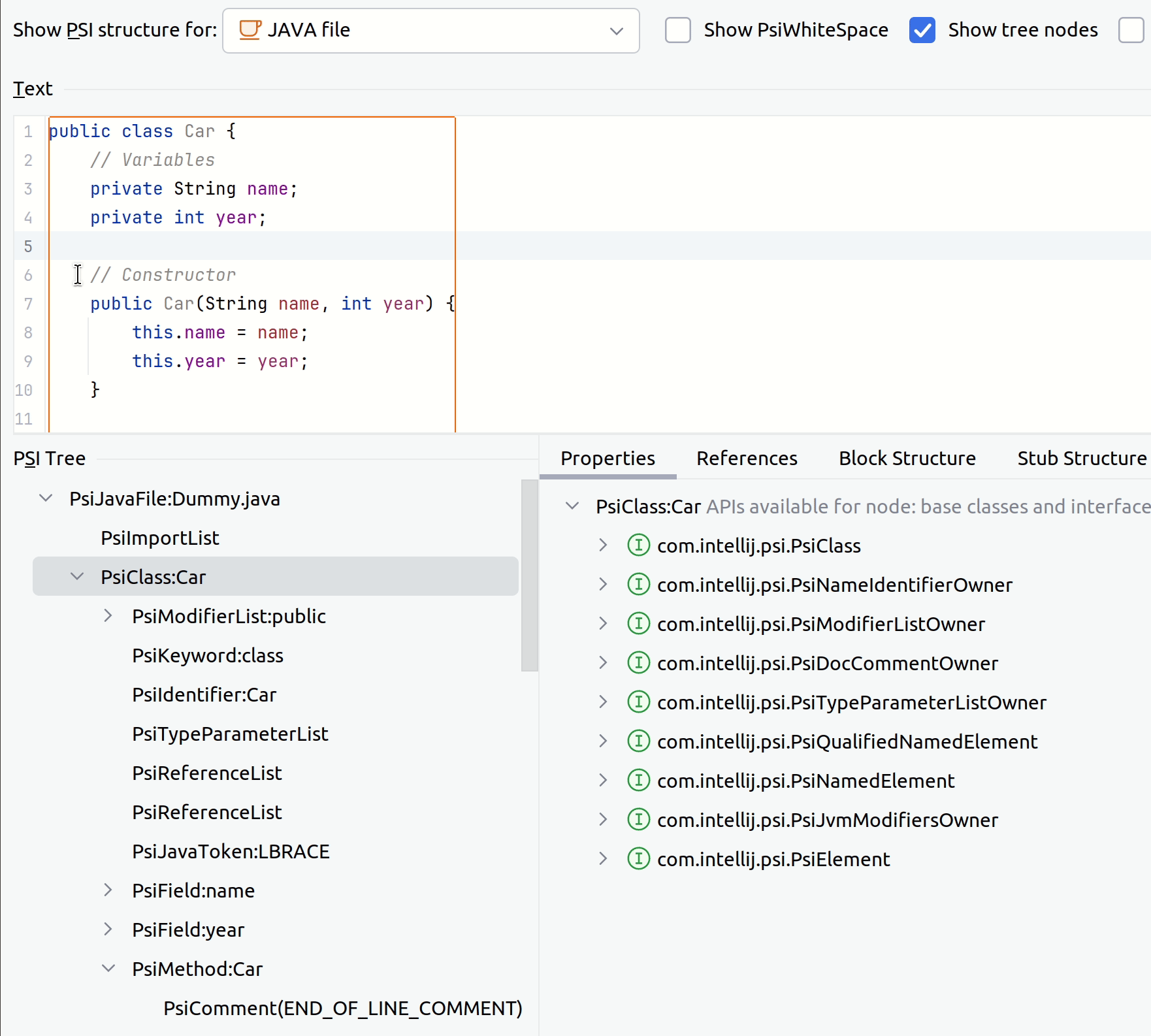

Reviewing a PSI tree of a file

Create your inspection

You can develop your inspection using the template that you've already created. In this example, you can iterate over all methods and use the isConstructor() method to check whether a class has a constructor method. If there is no constructor method, the inspection generates an error showing that a class has no constructor method.

Here's the Kotlin snippet for the NoConstructor.inspection.kts file containing inline comments.

import org.intellij.lang.annotations.Language import com.intellij.psi.PsiClass /** * Full HTML description of inspection: Describe here motivation, examples, etc. */ @Language("HTML") val htmlDescription = """ <html> <body> A class has no constructor </body> </html> """.trimIndent() val noConstructor = localInspection { psiFile, inspection -> val classes = psiFile.descendantsOfType<PsiClass>() classes.forEach { clazz -> // Ignore interfaces if (clazz.isInterface) { return@forEach } // Iterate all methods of a class, check if there is a constructor val hasConstructor = clazz.methods.any { method -> method.isConstructor } if (hasConstructor) { return@forEach } val className = clazz.qualifiedName val message = "The class $className has no constructor" inspection.registerProblem(clazz, message) } } listOf( InspectionKts( id = "NoConstructor", // inspection id (used in qodana.yaml) localTool = noConstructor, name = "The class has no constructor", // Inspection name, displayed in UI htmlDescription = htmlDescription, level = HighlightDisplayLevel.WARNING, ) )

Test your inspection in the IDE

After creating the inspection, you can see the compilation status on the toolbar in the upper part of the inspection file. When you change the inspection code, you need to explicitly recompile the inspection using the recompile button in the left part of the toolbar or use the Alt+Shift+Enter (Windows) or ⌥⇧↩ (macOS) shortcut.
You can also open files using the PSI Viewer and review inspection examples.

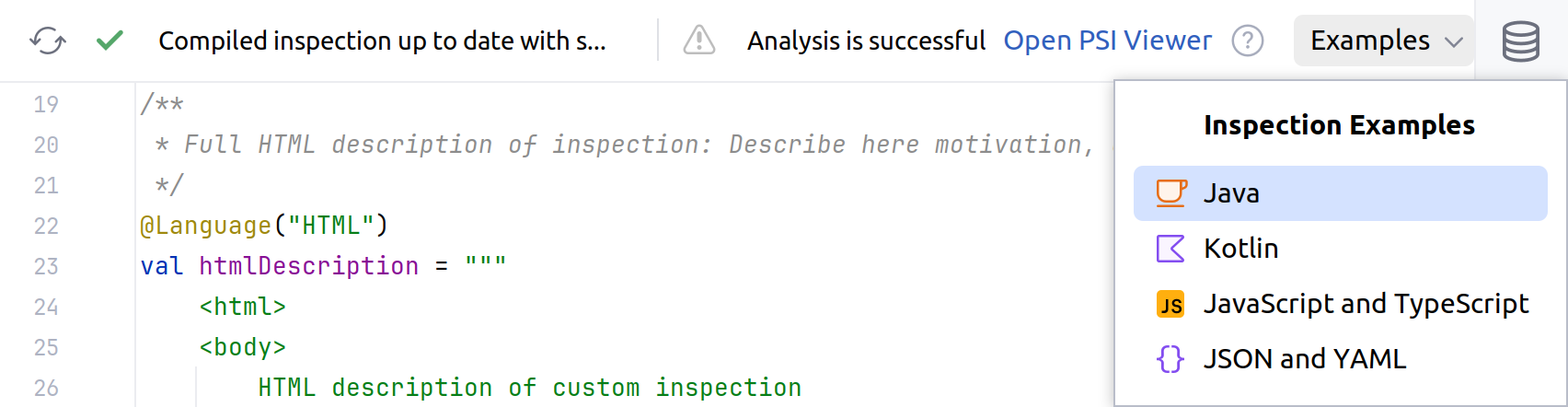

FlexInspect toolbar

To see how the new inspection functions on your code, open a file containing a problem the inspection is supposed to highlight.

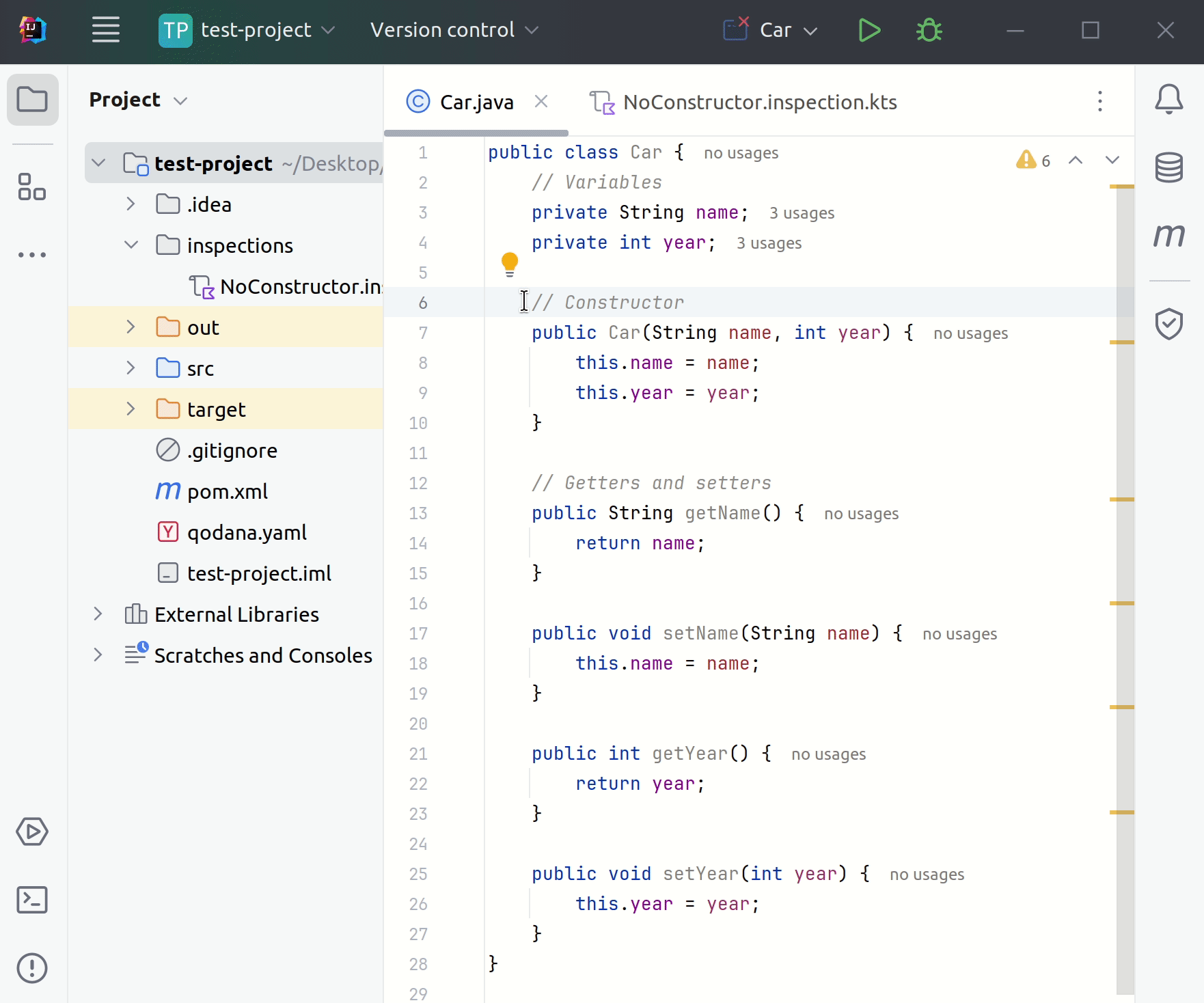

Testing the inspection in IDE

Run your custom inspection using Qodana

FlexInspect is supported by the default inspection profiles.

To inspect your entire project with the new inspection locally, run Qodana as explained in the Run Qodana locally section.

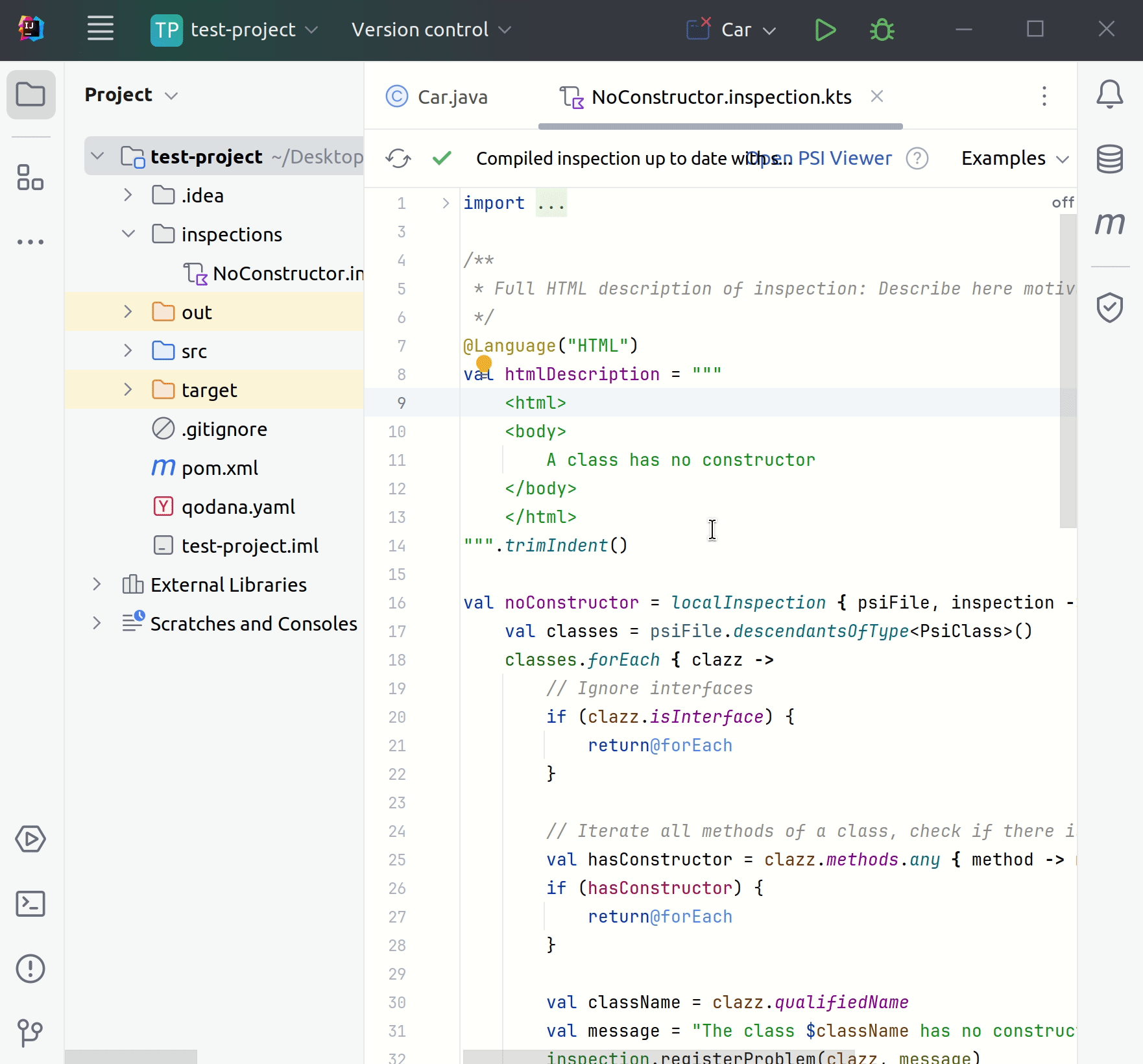

Running Qodana locally with a new inspection

To run your custom inspection in a CI pipeline, you can visit the Integration with CI systems section and find the instructions for your specific CI/CD solution. Because your inspection is already contained in the inspections directory of your project, it's already available for inspecting your code.

You can use the inspection name from the id field of the inspection file to disable or enable your custom inspection in the qodana.yaml file.

Last modified: 25 July 2024
