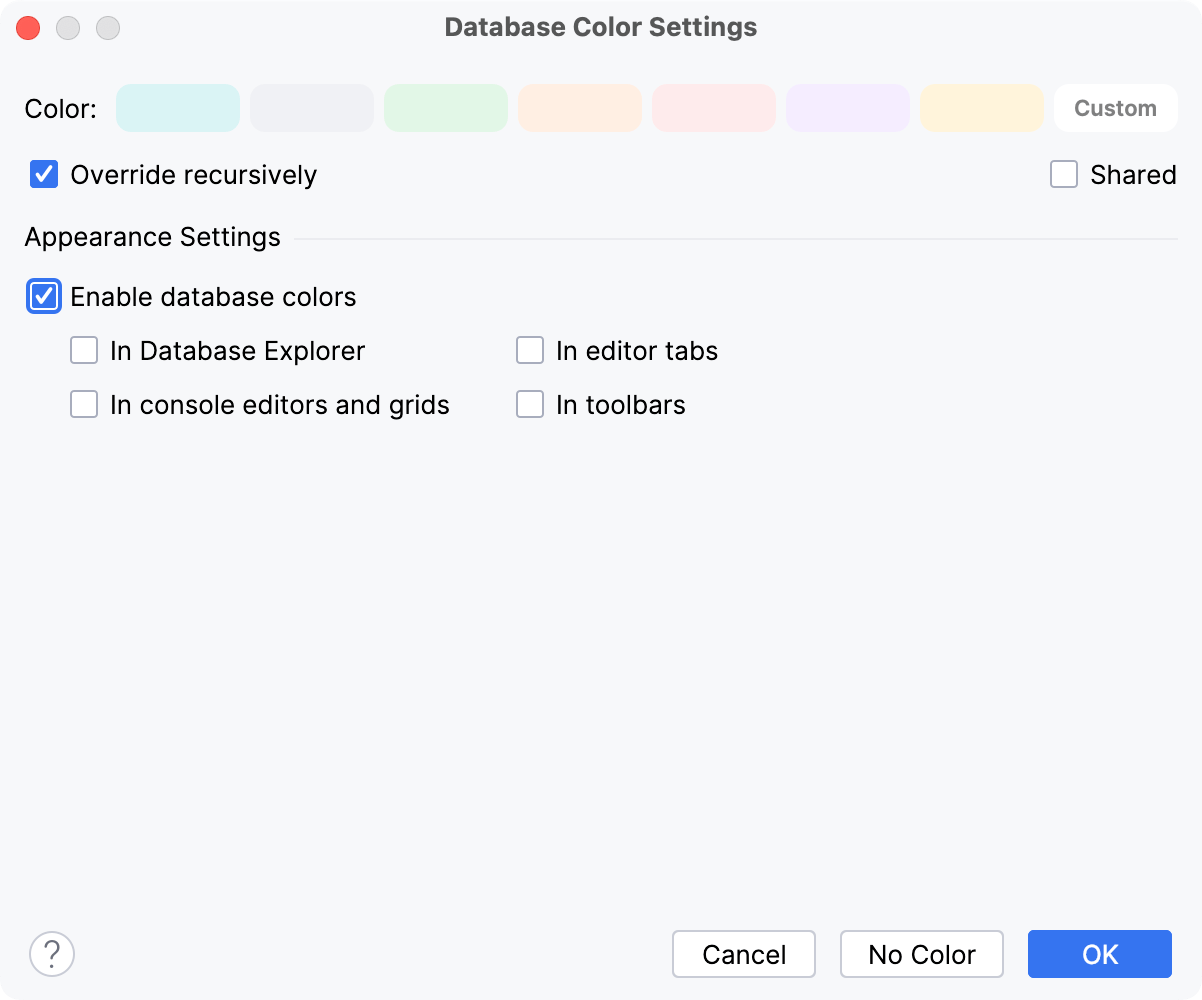

Database Color Settings dialog
In the Database tool window ( ), right-click any object (for example, a table or a data source) and select .
Select the color and specify how this color should be used (refer to Shared and Override recursively). Use the checkboxes in the Appearance Settings section to enable or disable the database colors in various places in the user interface.
Item | Description |
|---|---|
Color | Click the color that you want to use for the element or elements selected in the Database tool window. If the color that you want is missing, click Custom and specify the color in the dialog that opens. The color which is currently selected is marked with its name. If you don't want to use any color, click No color. |
Shared | Select the checkbox if you want to share the change of color you are about to make with your team. The database color settings are shared through version control. The new color for the selected element or elements will be stored in the following files:
The workspace.xml or the .iws file, normally, is not shared through version control while the rest of PyCharm configuration files are. For more information about PyCharm configuration files and their sharing, refer to Configure projects in PyCharm. |
Override recursively | If the checkbox is selected, the selected color will be applied to the element itself and all its subordinate elements recursively. If the checkbox is not selected, the colors set individually for the subordinate elements won't change. |

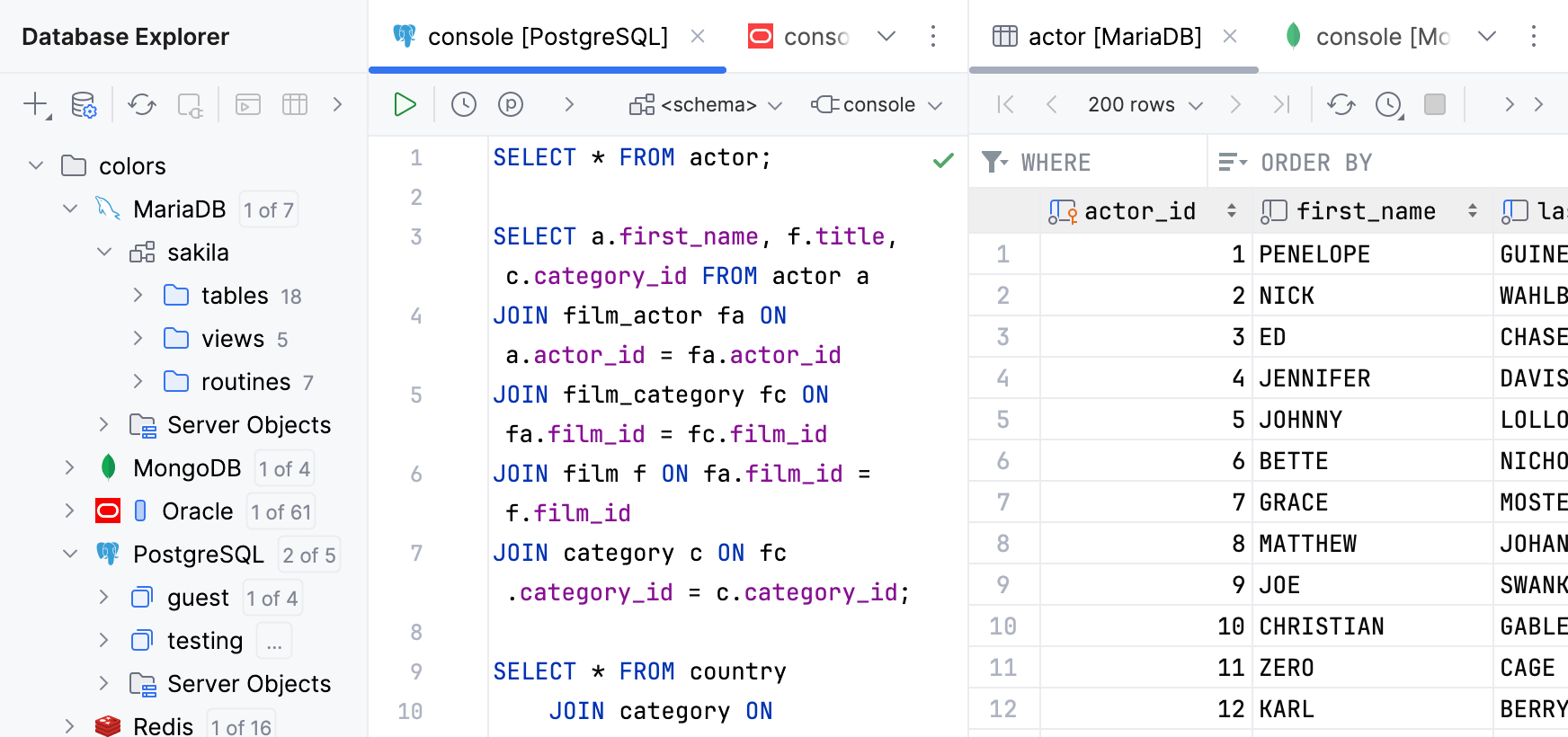

Enable database colors | Clear the checkbox to disable the database colors everywhere in the user interface. |

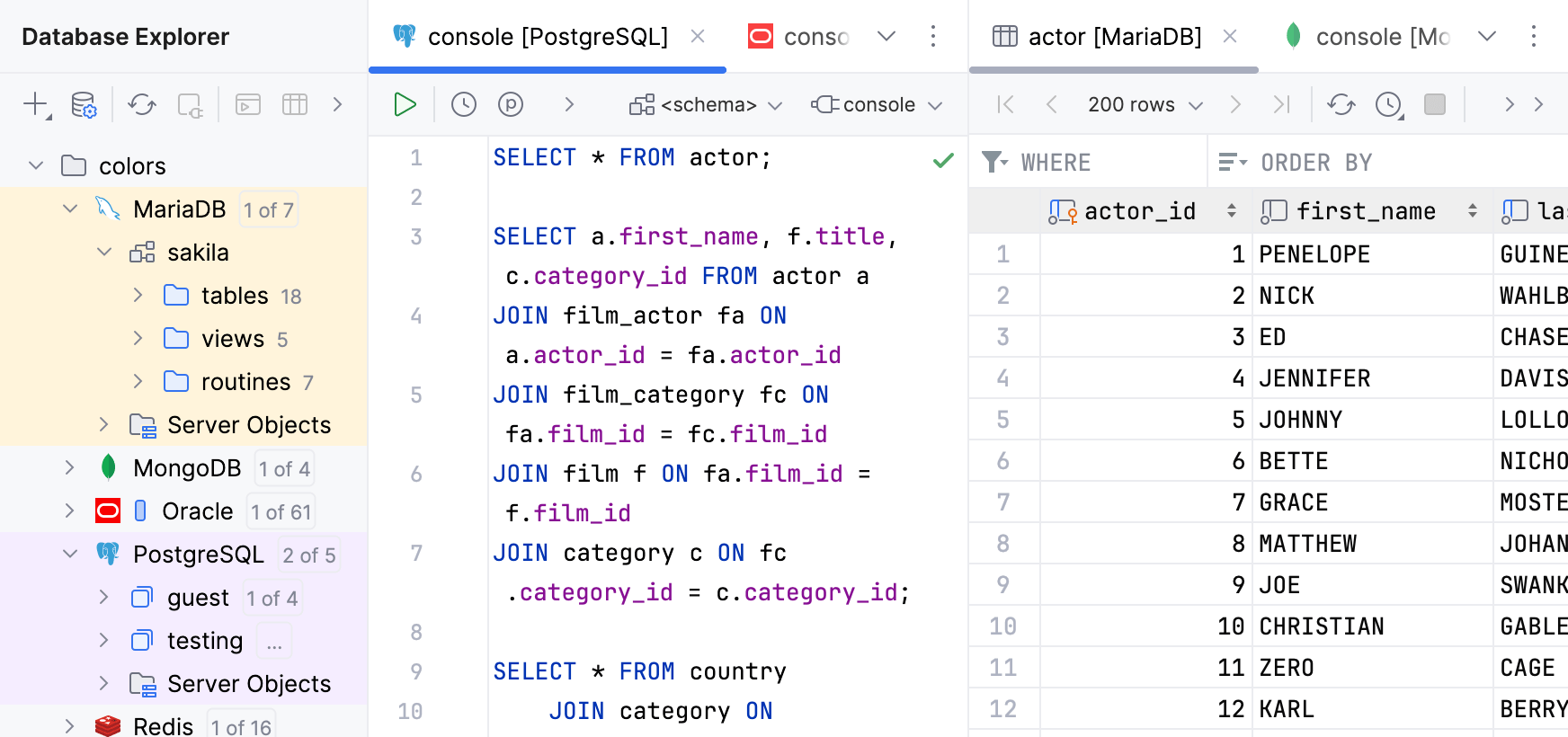

In Database Explorer | Select the checkbox to apply a color to the database node. When this option is on, database nodes have the color that you have selected.   |
In editor tabs | Select the checkbox to use the database colors for editor tabs. When this option is on, the tabs have the same color as the corresponding data source or table.  |

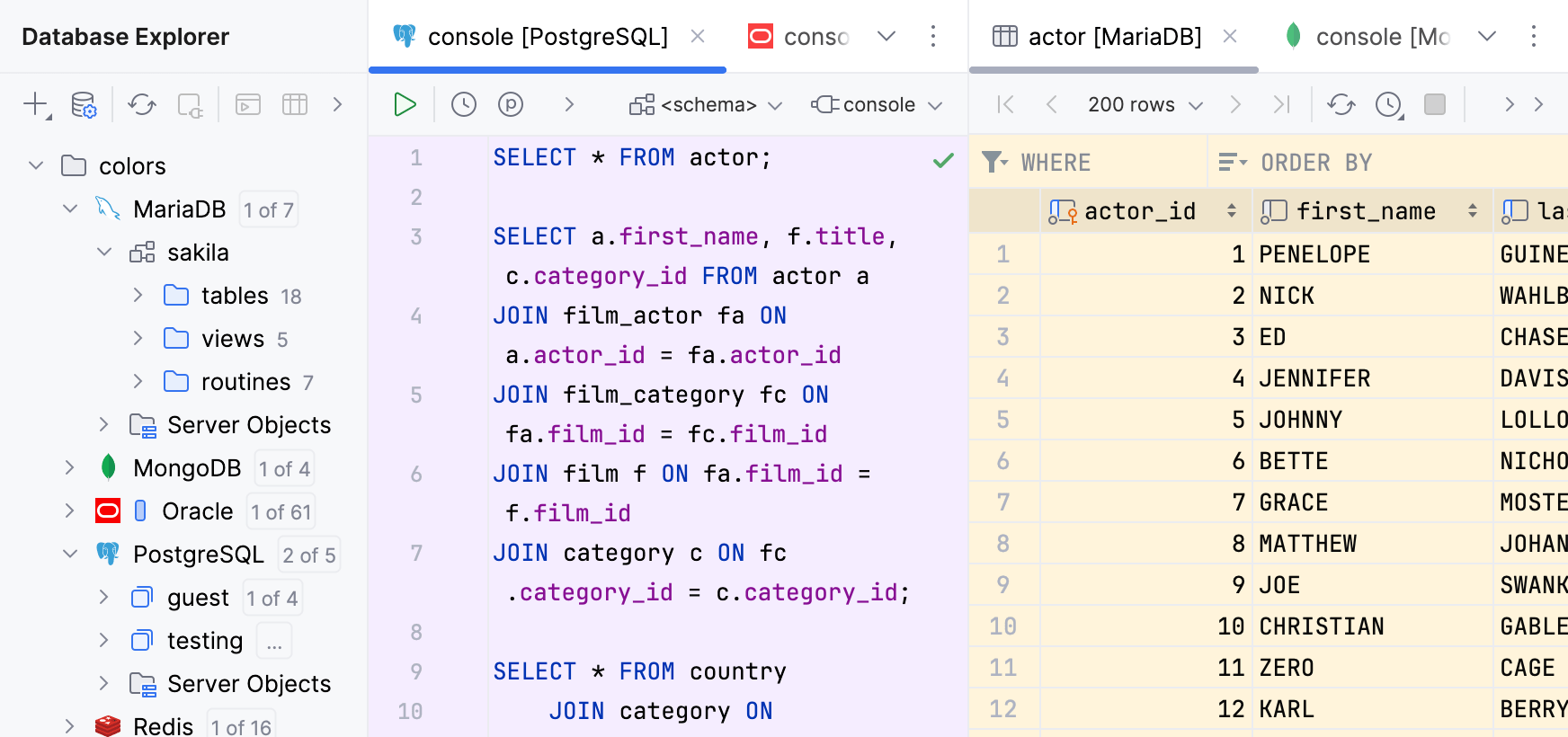

In console editors and grids | Select the checkbox to use the database colors for the editing area in database consoles and data editors. When this option is on, the background of the editing area has the same color as the corresponding data source.  |

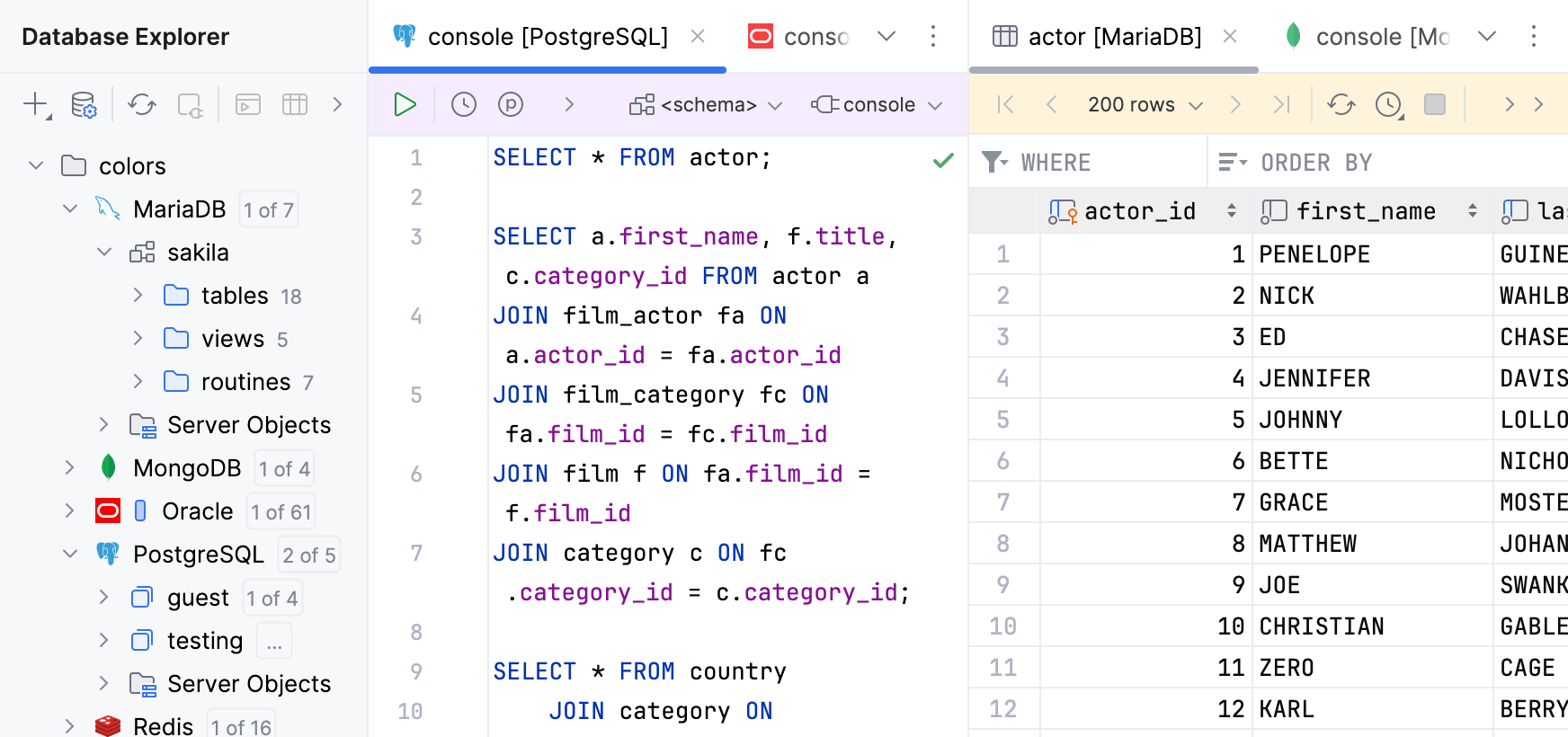

In toolbars | Select the checkbox to use the database colors for the toolbars of database consoles and data editors. When this option is on, the toolbar background has the same color as the corresponding data source.  |
No Color | Reset all color settings for the selected element. |
