Overview


Overview provides some general information about a snapshot, system configuration, profiled application and profiling results.

To open Overview

  • Use the View | Snapshot Overview menu or the Ctrl+Shift+O shortcut.

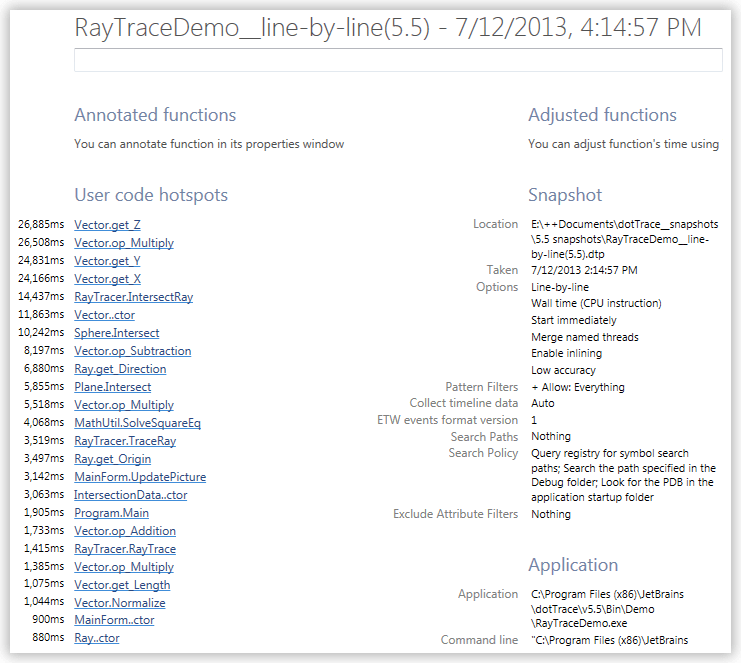

Overview consists of the following sections:

  • Runtime chart shows application CPU activity and memory consumption during profiling. Double arrow lines show timeframes when performance data were collected.

  • Annotated Functions contains the list of function annotations you have added. Click a function name to open the function in a new tab.

  • Adjusted Functions contains the list of adjusted functions. Click a function name to open the function in a new tab. If you want to restore original values for all functions, click Clear all.

  • User code hotspots displays the list of top hotspots from the user code subsystem.

  • Snapshot contains information about snapshot location, creation date and time, profiling settings.

  • Application contains information about profiled application, which varies depending on the selected application type; the total number of functions and modules in the current snapshot

  • Environment lists system information about the computer where the application was profiled.

  • Main Thread displays time distribution between subsystems for the Main Thread.

  • Other Threads displays combined time distribution between subsystems for all other threads.

You can edit the snapshot description by typing in the field below a snapshot name.
