Service Settings

The settings page for a service provides several options that you can use to manage the service. To access this page, select Services from the Server Settings section of the Administration menu, then click the name of a service in the list.

The following controls are visible in the header:

Control

Description

Trust/Distrust

Toggles the trust status for the service.

Delete service

Removes the service from Hub.

Settings

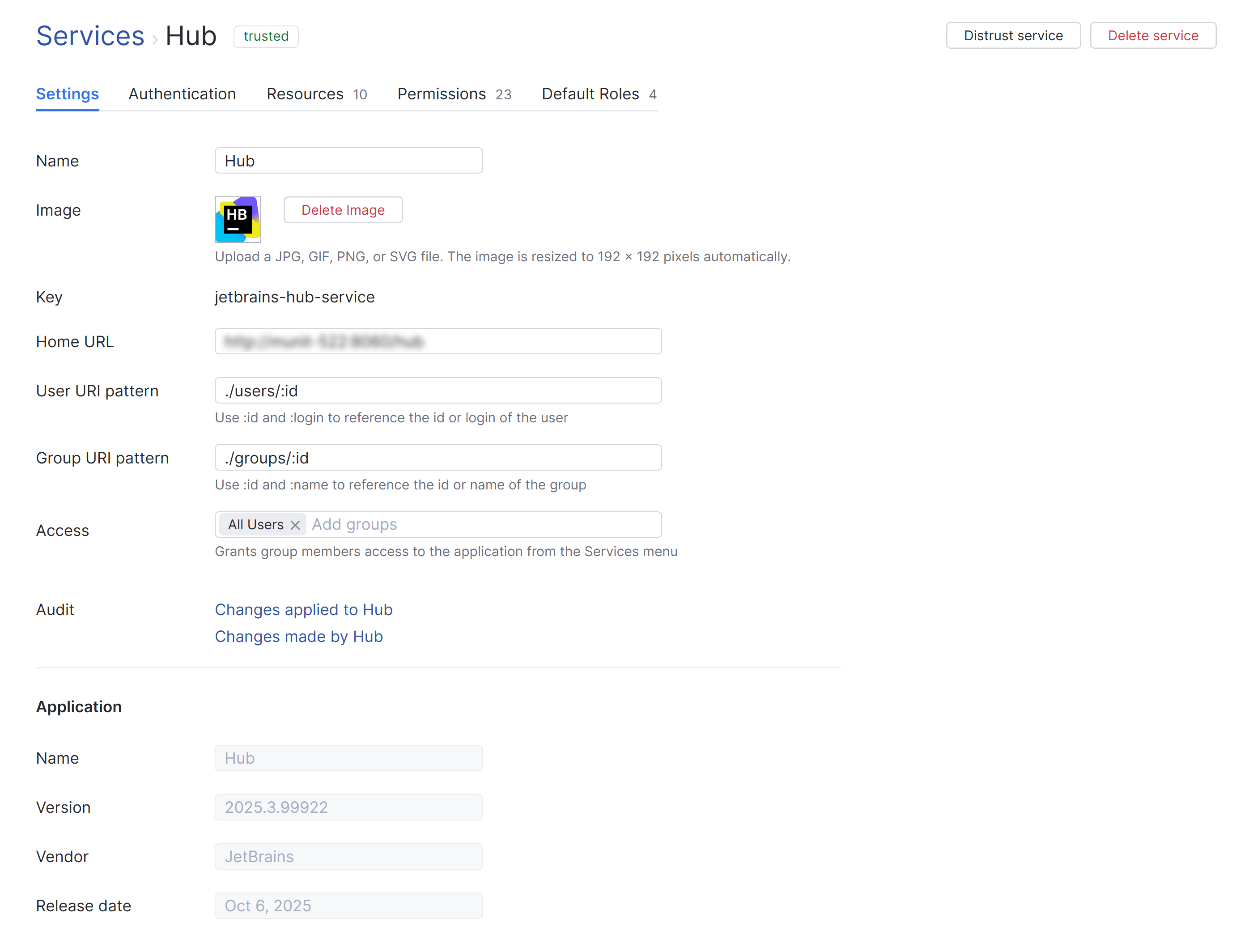

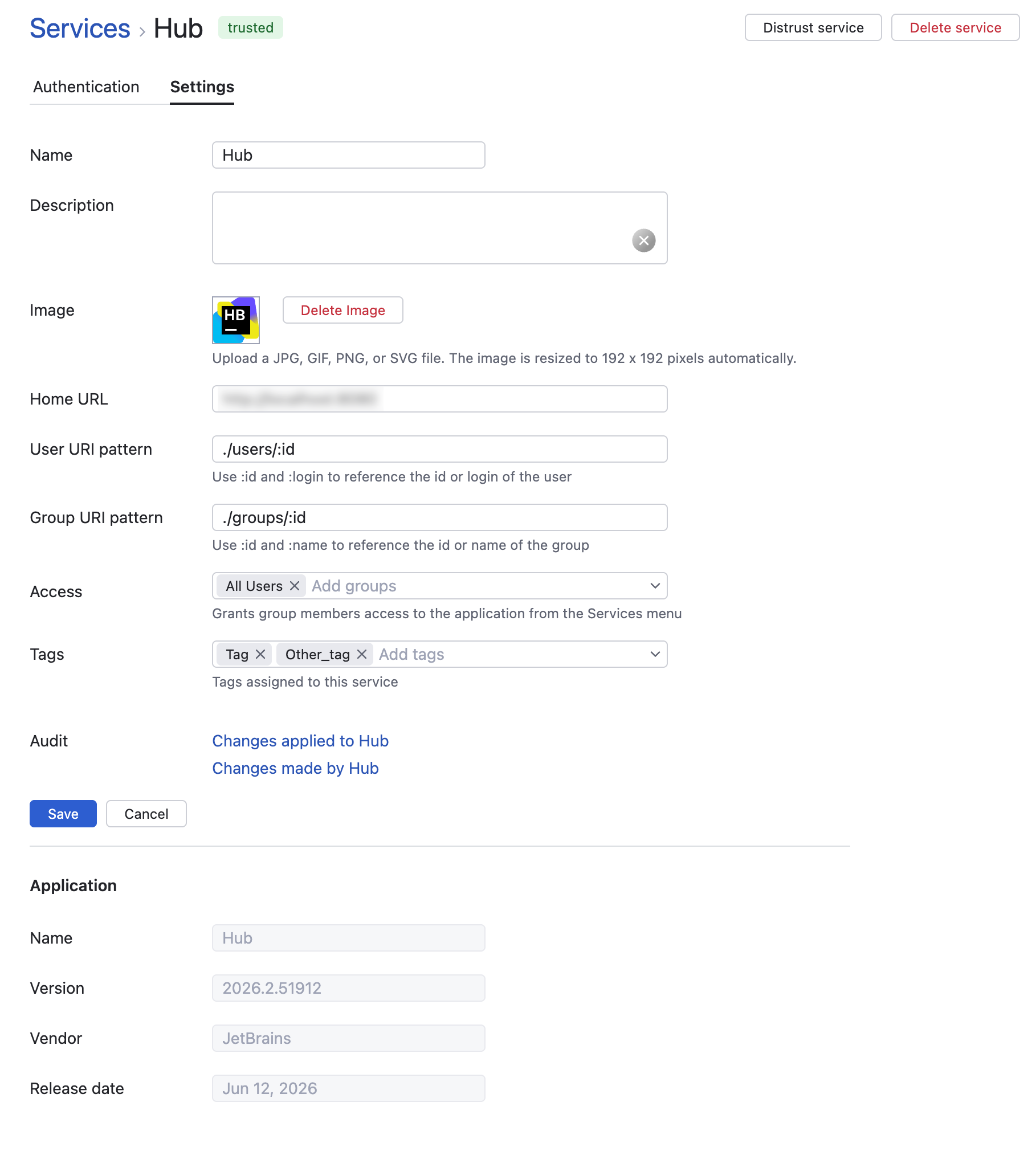

The Settings tab displays the settings and parameters for the selected service.

Service settings tab

The following settings are available for each service:

Setting

Description

Name

Sets the name of the service. Use this setting to distinguish this service from other services for the same application.

ID

Displays the unique service ID. When a service is connected to Hub, it is assigned a unique service_id. If you want to connect to a service using the REST API, you will need to know the service_id to authorize and access the service.

Key

Displays the unique service key.


Sets the image that is displayed in for the service in Hub.

Secret

Opens the Change Service Secret dialog. For more information, see Change the Service Secret.

Home URL

Displays the absolute base URL for the service. Click the Open URL button to navigate to the service home URL.

User URI pattern

Displays the pattern that is used to recognize user accounts in the service.

Group URI pattern

Displays the URI pattern that is used to recognize groups in the service.

Base URLs

Displays a list of absolute URLs that are used in addition to the Home URL to resolve redirect URIs

Redirect URIs

Displays the registered redirect URIs that are used for authentication by the service. For more information about how Hub validates redirect URIs, see Redirect URI Validation.

Untrusted redirect URIs

Displays a list of untrusted endpoints that have been used to request access to the service. The following options are available:

Option

Description

Accept access

Adds the endpoint to the list of registered redirect URIs. The address is used to authenticate access for the service.

Ignore

Removes the endpoint from the list of untrusted redirect URIs. The address is not allowed to be used to authenticate access for the service.

Access

Gives members of the selected groups access to the application. Members of these groups can access the application that is provided by the service from the Services menu in the header. For more information, see Add a Service to the Services Menu.

Audit

Links to the Audit Events page in Hub. There, you can view a list of changes that were applied to this service or changes that were applied by this service.

The Application section of the page displays the name, version number, vendor, and release date of the application, when available. These properties are imported from the connected service and cannot be changed.

Resources

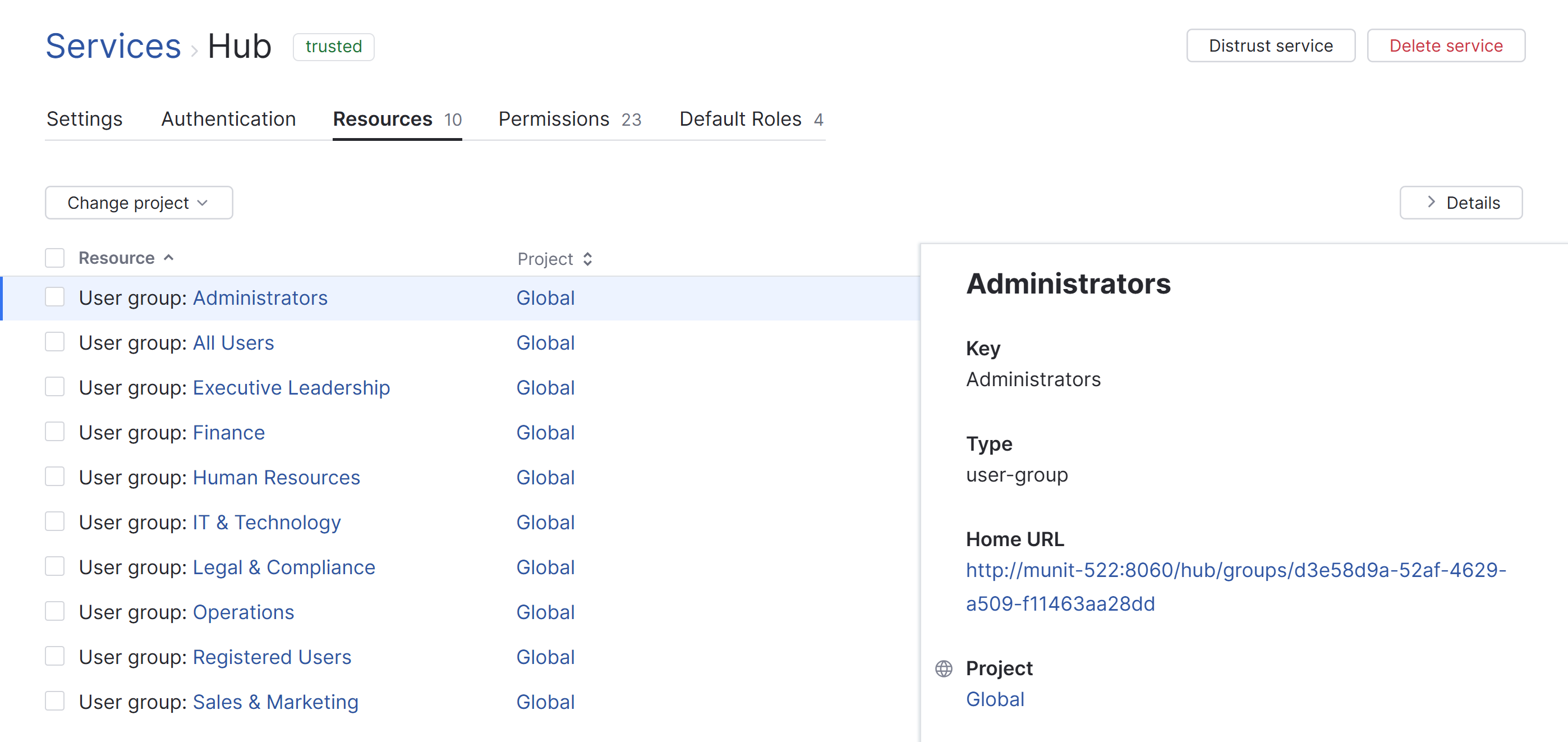

The Resources tab displays a list of resources that are available in the selected service. The type of resource varies by service. For example, a YouTrack service displays a list of projects in YouTrack. A Hub service displays a list of user groups.

Service resources tab

The following information is displayed in the Details sidebar for each service:

Column

Description

Key

The unique ID that is assigned to the resource in Hub.

Type

The entity type of the resource.

Home URL

The URL of the resource. Click the link to open the resource in the connected service.

Project

The name of the Hub project that uses this resource. Click the link to open the project in the Projects page.

Permissions

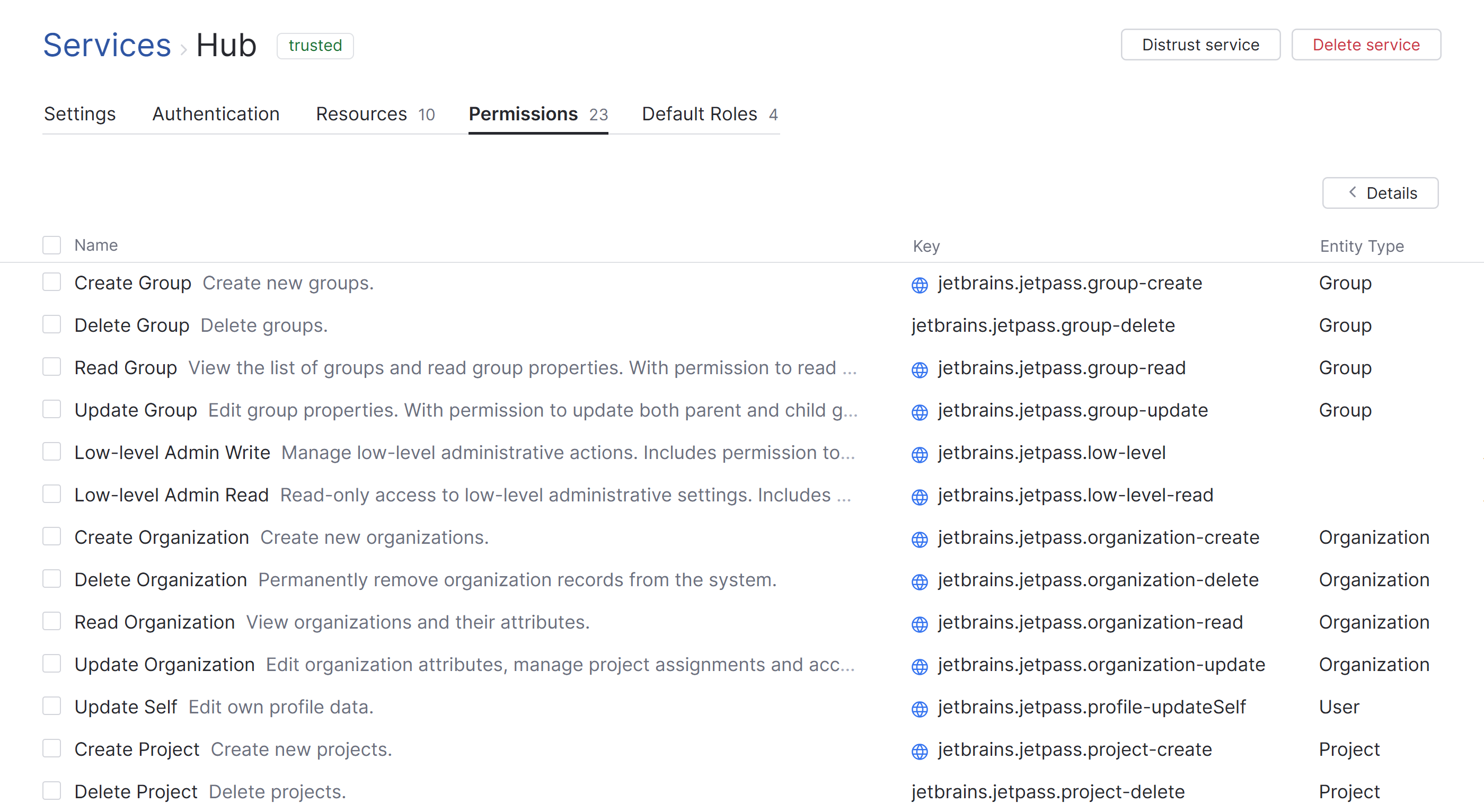

The Permissions tab displays a list of permissions that are available in the selected service.

Service permissions tab

The following information is displayed in the permissions list for each service:

Column

Description

Key

The unique ID that is assigned to the permission.

Name

The name and short description of the permission.

Type

The entity type that the permission grants access to.

Operation

The type of operation that the permission grants access to perform.

Default Roles

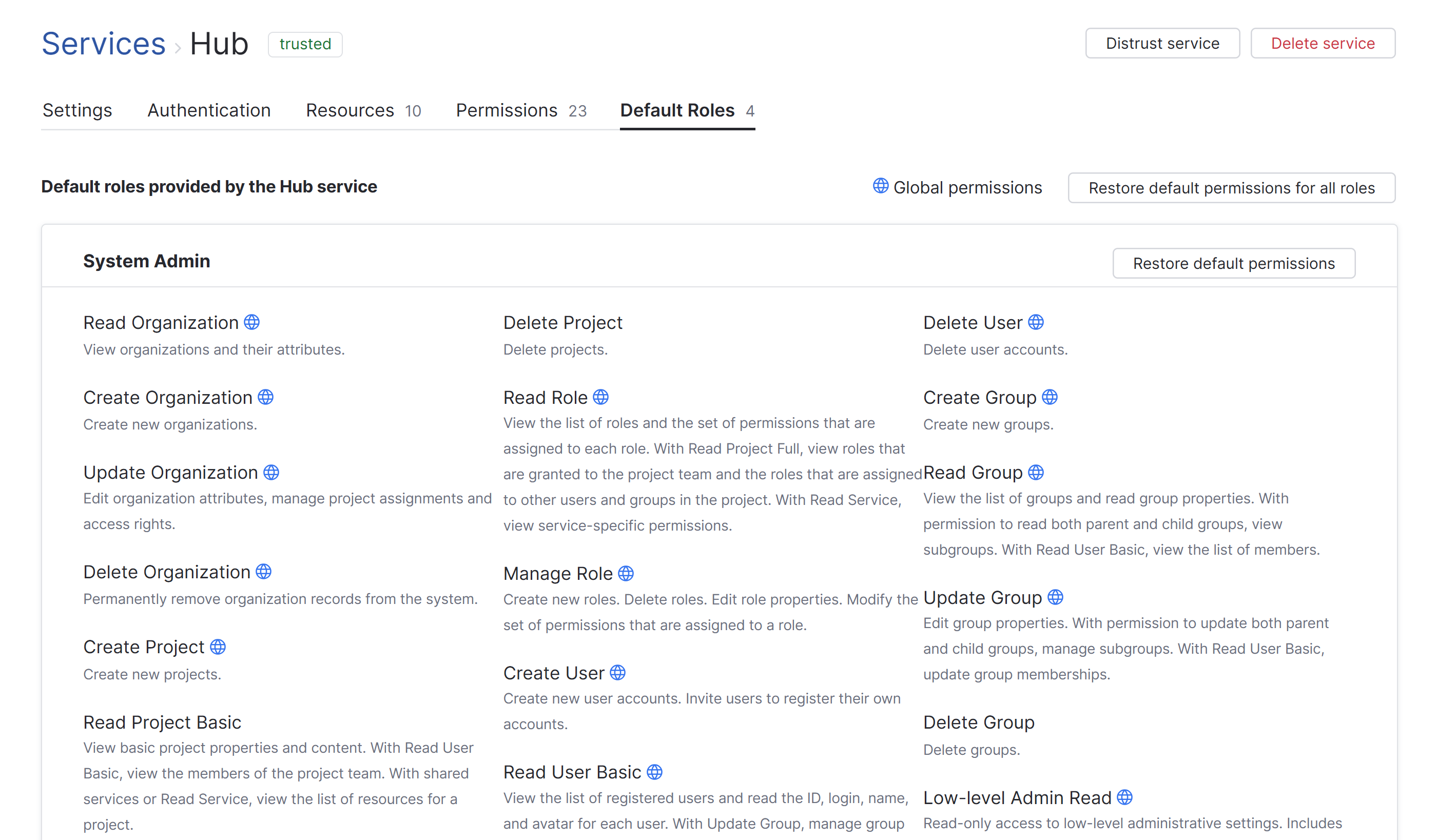

The Default Roles tab displays a list of default roles that are defined in the selected service. Each default role is listed on the page with a list of the permissions that are currently assigned to the role.

Service default roles tab

The following controls are available:

Control

Description

Reset to default permissions

Resets all of the default roles to the default permissions that are defined by the service.

Reset

Resets a single default role to the default permissions that are defined by the service. This button is displayed in the header of each default role.

License

The License tab displays the properties of the license for the selected service.

Here, you can manage the list of users who are granted a per-user license. For more information, see Manage Service Licenses.

Services license tab
Last modified: 09 November 2023
