Project tool window

The Project tool window lets you take a look at your project from various viewpoints and perform different tasks such as creating new items (directories, files, classes, and so on) , opening files in the editor, navigating to the necessary code fragments, and more.

Views

The tool window has several views:

Project view. This view displays all the project items along with their dependencies (SDKs and libraries) . The emphasis is on the directory structure, although the packages are also shown.

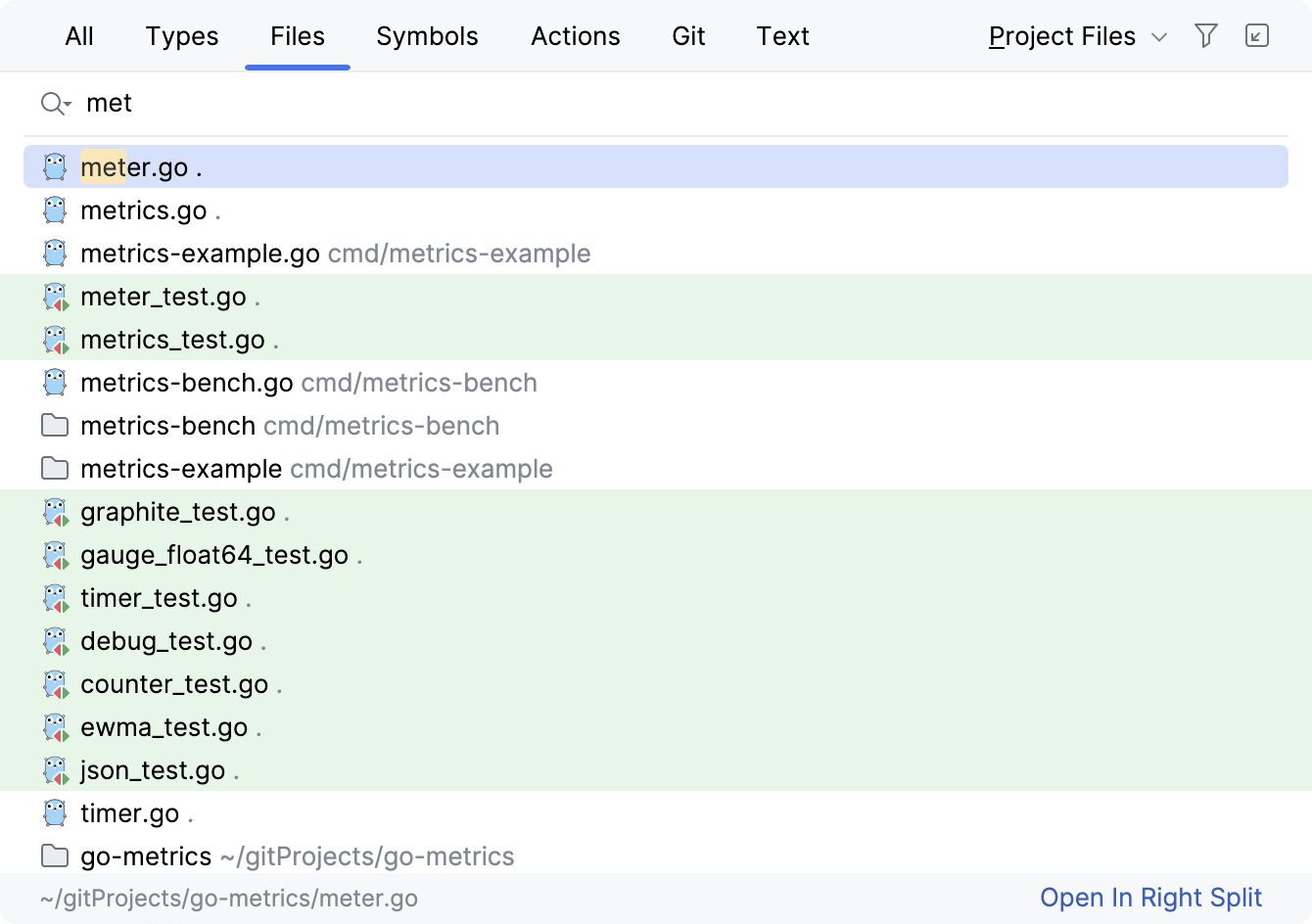

Scope views (Project Files, Open Files, and so on). These views display the contents of the predefined and user-defined scopes. In other respects, depending on the currently selected view options, a scope view may resemble the Project view.
Scratches and Consoles view. This view lets you manage your scratch files and query consoles.

To switch between views, press Alt+Right/Alt+Left or select the desired view from the list on the header.

You can also display each view in a separate tab: click and disable the Group Tabs option.

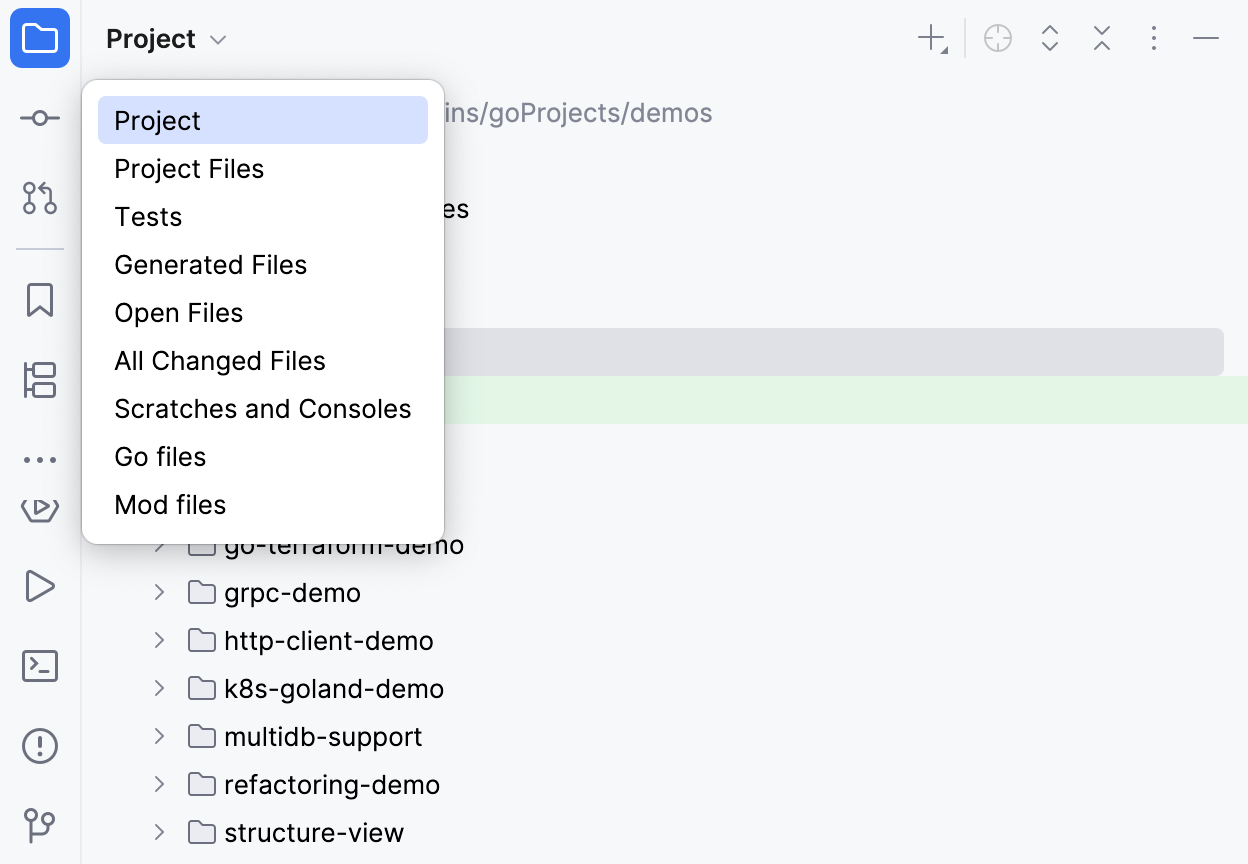

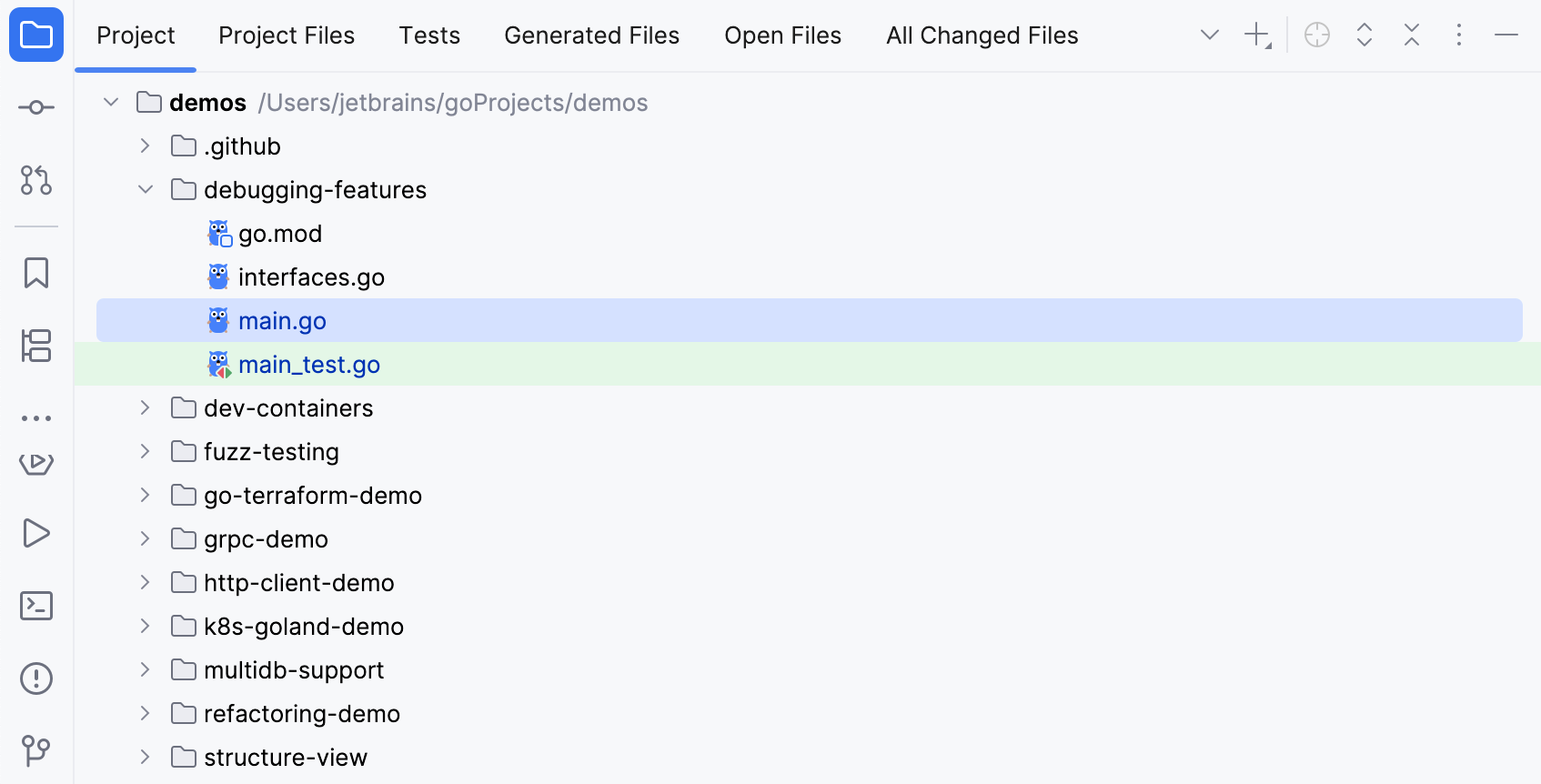

GoLand: choosing a view in the Project tool window

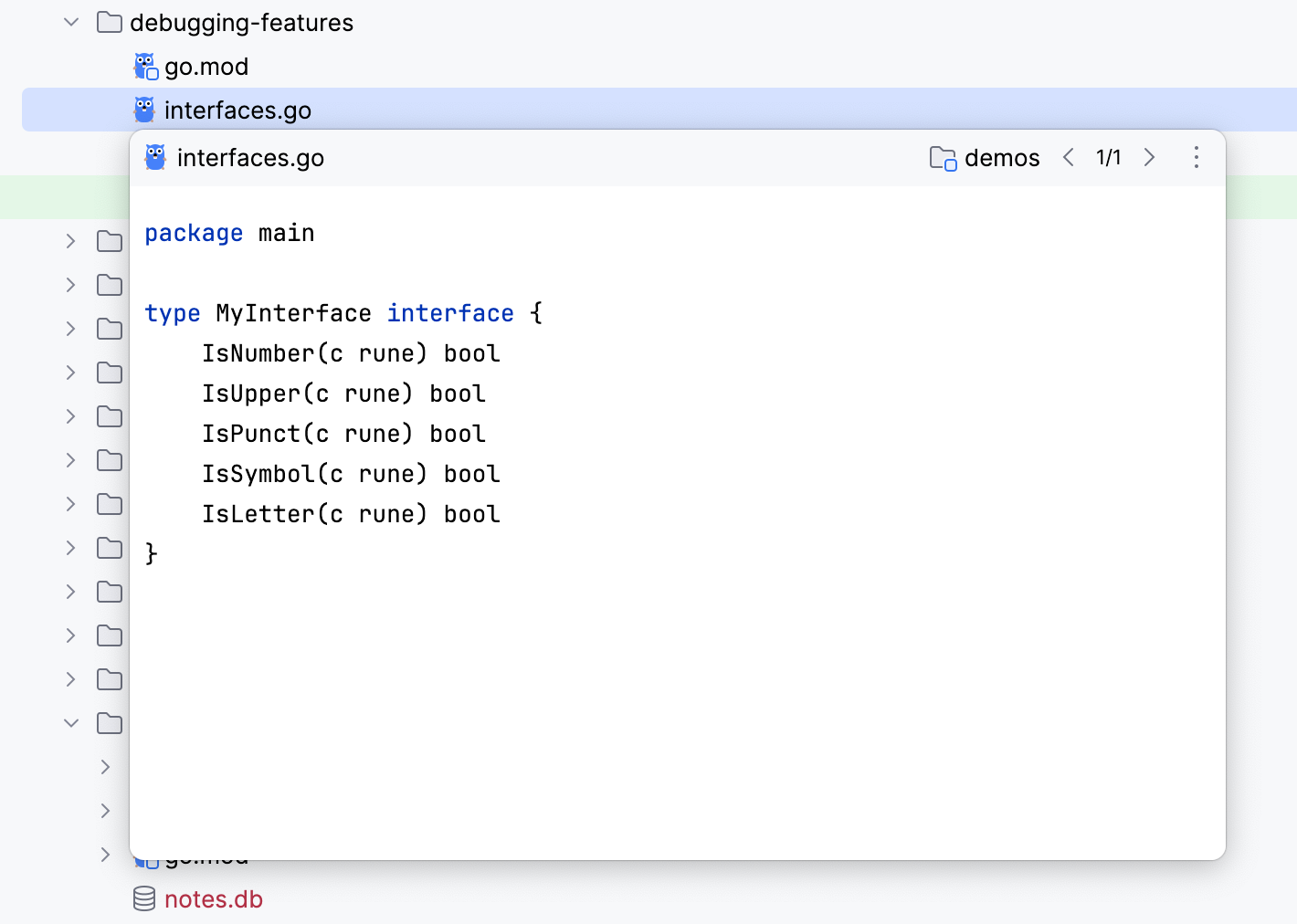

Preview files

There are two ways to preview files without opening each one in a separate tab:

Use the file preview popup: select a file in the Project tool window and press Space.
Enable the preview tab: click and select Behavior | Enable Preview Tab.

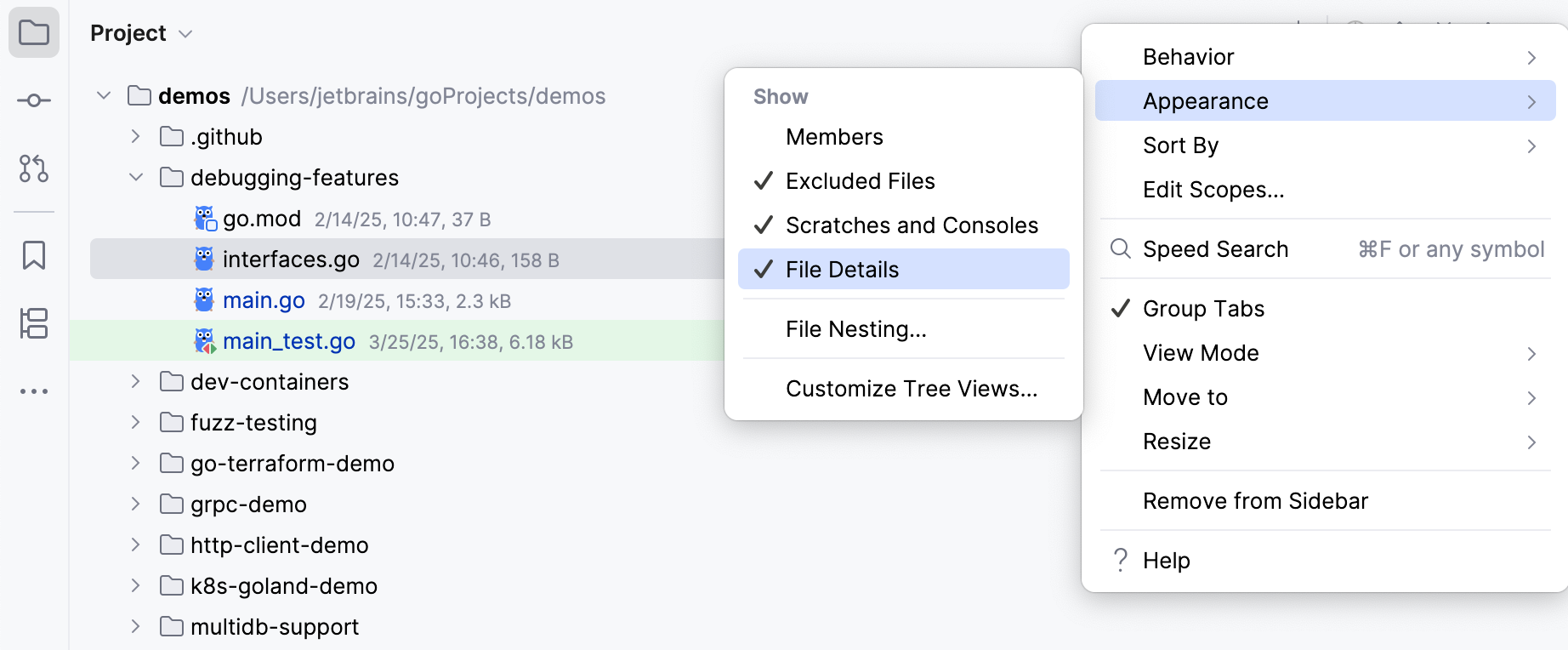

Show file size and modification timestamp

You can view the size and modification timestamp for the files in the project tree.

In the Project tool window, click and select Appearance | File Details.

Descriptions in Tree Views option on and off

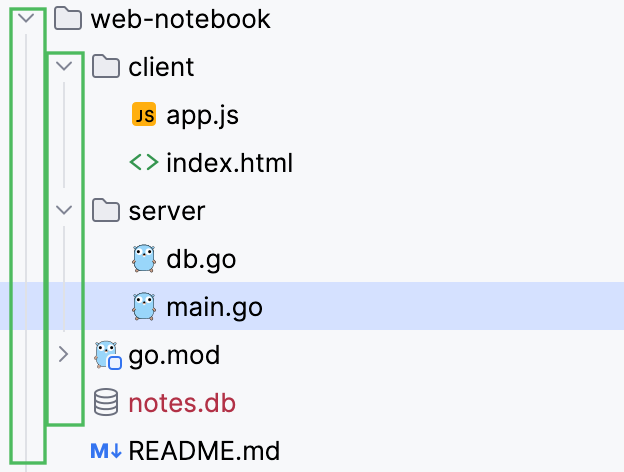

Show tree indent guides

In the Project tool window , you can display vertical lines that mark indent levels and help you better understand the hierarchy of the components in your project.

Press Ctrl+Alt+S to open settings and then select Appearance & Behavior | Appearance.
Enable the Show indent guides option.

Header context menu

The context menu that appears by right-clicking the header or clicking the Options button () provides settings for project views, viewing modes, as well as for switching between the views, resizing the tool window, and more.

The following table lists and briefly explains the available commands and options.

Item

Shortcut

Description

Select Next View or Tab

Alt+Right

Use this option to switch between different views.

Select Previous View or Tab

Alt+Left

Use this option to switch between different views.

Show List of Views or Tabs

Alt+Down

Use this option to switch between different views.

Behavior

Enable Preview Tab

Enable the preview tab that allows you to view files in a single tab one by one without opening each file in a new tab.

Open Files with Single Click

Open an item in the editor by clicking it in the Project tool window once. Otherwise, you need to double-click items to open them.

Note that you cannot disable this option if you enable the preview tab.

Open Directories with Single Click

Expand and collapse directories in the Project tool window by clicking them once. Otherwise, you need to double-click a directory to open it or use the icon next to the directory's name.

Always Select Opened File

If this option is on, GoLand automatically locates documents that you open in the editor in the current view of this window.

Appearance

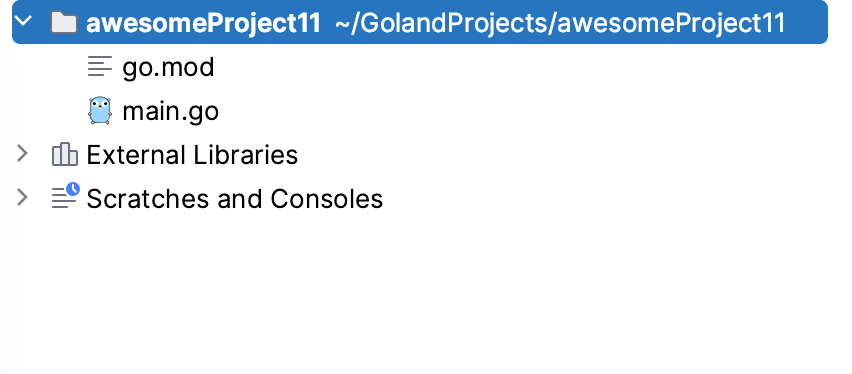

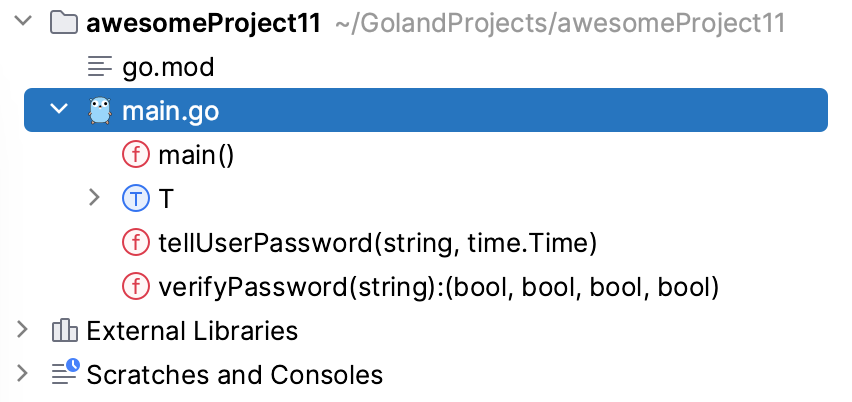

Members

If this option is on, the files in the tree that contain classes turn into nodes. When such a node is unfolded, the contained classes with their fields, methods, and other members of the selected item are shown.

Group Tabs: ON	Group Tabs: OFF

Excluded Files

This option is available only in the Project view.

Turn this option on or off to show or hide excluded folders and files.

Scratches and Consoles

Hide or display the Scratches and Consoles node.

This node contains your scratch files and query consoles.

File Nesting

Opens the File nesting dialog where you can configure presentation of files that have same names but different extensions.

Customize Tree Views

Navigate to Settings | Appearance & Behavour | Appearance | Tree Views to configure options for tree views.

Sort By

Name

Sort files alphabetically by their names.

The option does not affect the order of folders, they are always sorted alphabetically.

Type

Sort files by their extensions.

The option does not affect the order of folders, they are always sorted alphabetically.

Modification Time (Newest First/Oldest First)

Sort files by the time they were modified. To display this information, select View | Appearance | Details in Tree View from the main menu.

The option does not affect the order of folders, they are always sorted alphabetically.

Folders Always on Top

If the option is on, folders are shown above the files. Otherwise, all items are sorted alphabetically, and files and folders appear intermixed.

Edit Scopes

Open the Scopes dialog in which you can create and edit used-defined scopes.

Note that this command is available only if the current view is a scope view.

Speed Search

Ctrl+F

Search for an item. Learn more from Speed Search in tool windows

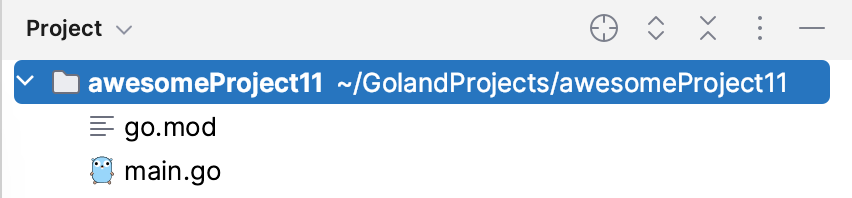

Group Tabs

If this option is on, there is a list in the left-hand part of the header from which you can select the necessary view.

If this option is off, the views are represented by tabs which appear in the left-hand part of the header.

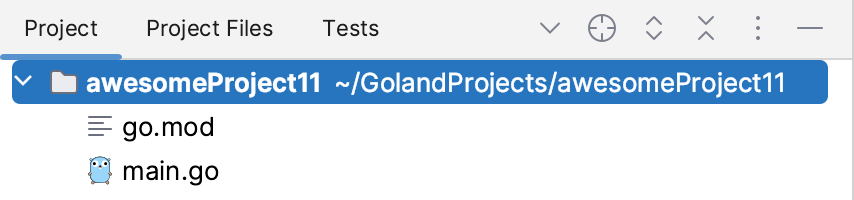

Group Tabs: ON	Group Tabs: OFF

View Mode

This option lets you control general appearance and behavior of the tool window. For full information, refer to Tool window view modes.

Move to

To associate the tool window with a different tool window bar, select this command, and then select the destination tool window bar (Top, Left, Bottom or Right). For full information, refer to the Move tool windows chapter.

Resize

To resize the tool window by moving one of its borders, select this command, and then select the necessary Stretch to option.

Note that this command is not available for the floating mode.

Remove from Sidebar

This command hides the tool window, removes the associated tool window button from the tool window bar, and removes the tool window from the quick access menu ( or ).

To open the tool window again (and restore the associated features), use the main menu: View | Tool Windows | <Window Name> or press Alt+1.

Hide

Shift+Escape

Hide the tool window.

Help

This command opens the description of the Project tool window in the GoLand online help.

Title bar actions

Item	Shortcut	Description
Select Next View or Tab Select Previous View or Tab	`Alt+Right` `Alt+Left`	If the views are currently shown as tabs (the Group Tabs option is off), this button appears to the right of the last visible tab. Open the list of views, for example, to select a different view.
		Navigate from a file in the editor to the corresponding node (file, class, field, method, and so on) in the Project tool window. This icon is not available if the Always Select Opened File option is currently on.
	`Ctrl+NumPad +`	Expand all nodes.
	`Ctrl+NumPad -`	Collapse all nodes.
		Open the menu for configuring the current view and changing the tool window viewing modes. The available options are a subset of the header context menu items. Note that most of the menu items are options that you can turn on or off. An option which is on has a check mark to the left of its name.
	`Shift+Escape`	Hide the tool window `Shift+Escape`. To hide all the tool windows, press `Ctrl+Shift+F12`.

Content pane

The content pane shows the project items such as directories, files, and other elements.

Item	Description
	A folder (directory). Different folder categories have different colors.
	Files marked as plain text.

Context menu commands for the content pane items

The context menu of an item provides access to all the functions available for this item.

Item	Shortcut	Description

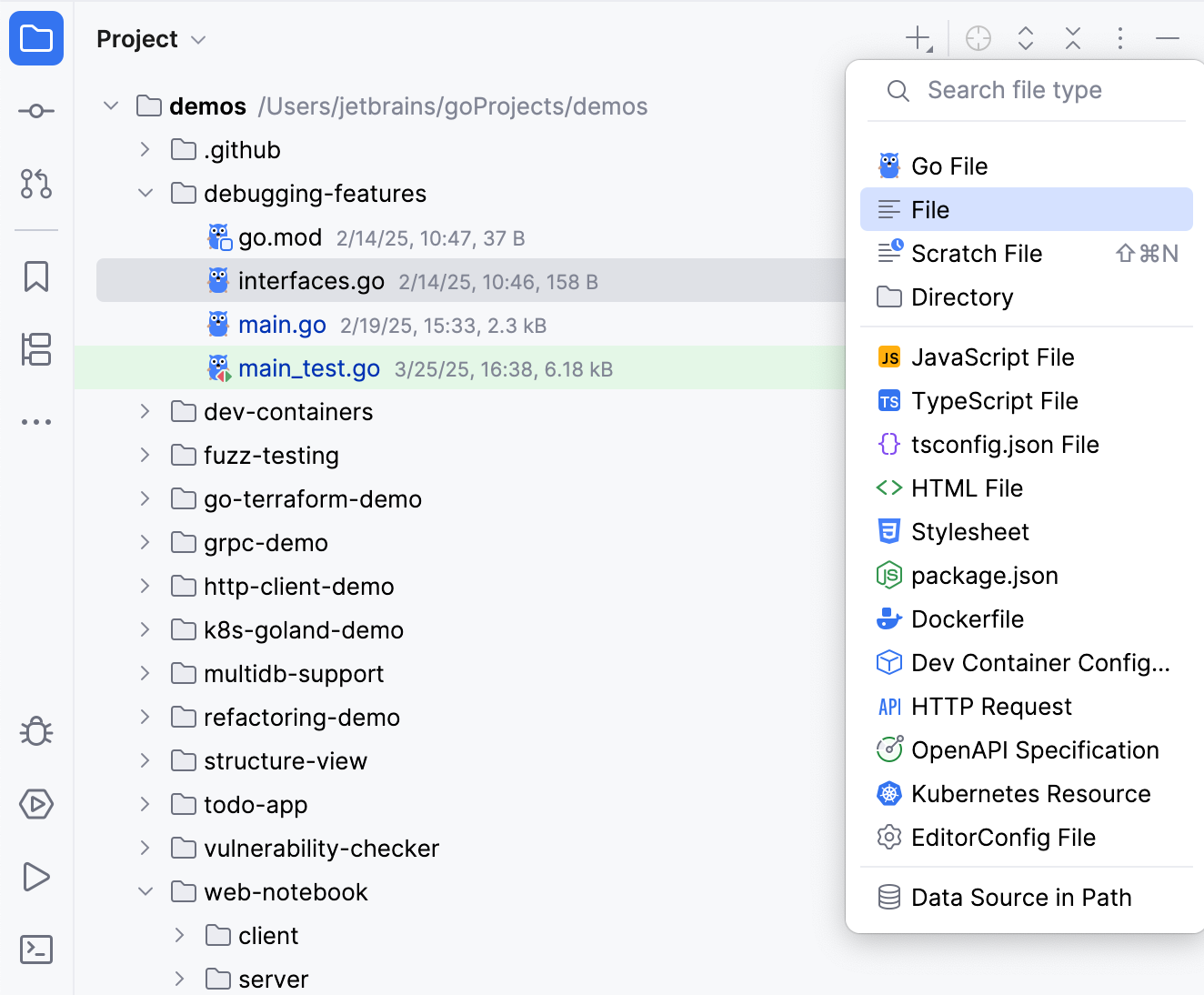

New	`Alt+Insert`	Create a new item (directory, file, or class) within the selected one. (project or directory).
Cut	`Ctrl+X`	Move the selected item or items from the current location to the clipboard.
Copy	`Ctrl+C`	Copy the selected item or items to the clipboard.
Copy Path/Reference		Use this command and one of the following options to copy the selected item(s) to the clipboard: Absolute Path: copies the full path(s) of the selected item or items. File Name: copies only the filename to the clipboard. Path From Content Root: copies the path relative to the directory that contains the application content files. Path From Repository Root: copies the path relative to the project repository. GitHub Repository URL: copies the path relative to the project repository on GitHub. Toolbox URL: if you have GoLand Toolbox installed, you can insert the copied path in the browser to open the Toolbox application with the selected project. Copy Reference (`Ctrl+Alt+Shift+C`): copies the reference of the selected item including the line number.
Paste	`Ctrl+V`	Insert the contents of the clipboard into the selected location.
Jump to Source	`F4`	Open the selected file in the editor. If the file is already open, the corresponding editor tab will become active.
Find Usages	`Alt+F7`	Search for the usages of the selected item. (The Find Usages dialog will open.)
Find in Files	`Ctrl+Shift+F`	Perform a text search. (Find in Files dialog will open.)
Replace in Files	`Ctrl+Shift+R`	Perform text search-and-replace. (Replace in Path dialog will open.)
Rename	`Shift+F6`	Rename the selected item.
Refactor		Perform one of the refactorings available for the selected item.
Bookmarks		Add the selected item to an existing or new list of bookmarks.
Reformat Code	`Ctrl+Alt+L`	Reformat the source code in the selected file or in all files in the current directory. See also, Reformat and rearrange code.
Delete	`Delete`	Delete the selected item. Use with care!
Change Dialect (<CurrentDialect>)		For SQL files and database consoles, change the SQL dialect associated with the file or console.
Run '<item_name>'	`Ctrl+Shift+F10`	For an SQL file or query console: execute all the statements contained in the selected file or console.
Open in Right Split	`Shift+Enter`	Split the editor into two parts and show the file in the right section. For more information, refer to Split screen.
Open in		Open a file in your system file manager or in Terminal.
Local History		View local history for the selected file or directory, or create a label for the current version of your project.
Synchronize '<item_name>'		Synchronize the view in the tool window with the view saved in the file system. If you change a file or directory contents externally, GoLand, under certain circumstances, may not be aware of the corresponding changes unless you use this command.
Compare With	`Ctrl+D`	Compare the selected file or directory with another file or directory. See Compare files, folders, and text sources and Diff Viewer for folders.
Compare File with Editor		Compare the selected file with the file open on an active editor tab. See Compare files, folders, and text sources and Diff Viewer for files.
External Tools		Launch a third-party tool.
Mark Directory As		Make the selected directory a source root or a test source root , to make the directory excluded, and so on. The necessary category for the directory is selected from the submenu.
Diagrams	`Ctrl+Alt+Shift+U` or `Ctrl+Alt+U`	Open a diagram (for example, a UML diagram) for the selected item.

File status highlights

If VCS integration is enabled for the current project, GoLand uses colors to denote VCS file status in the Project tool window.

You can configure VCS file status colors on the Version Control | File Status Colors page of settings Ctrl+Alt+S.

The table below lists default file status colors and their meanings in some of the color schemes.

Color	File Status	Description
#0A7700	Added	The file in the active changelist is scheduled for addition to the repository.
#0EAA00	Added in not active changelist	The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings \| Version Control \| Changelists.
#FF0000	Changelist conflict	The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open, prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings \| Version Control \| Changelists.
#0A7700	Copied	If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.
#616161	Deleted	The file is scheduled for deletion from the repository.
#773895	Deleted from file system	The file has been deleted locally but hasn't been scheduled for deletion, and it still exists in the repository.
#8AA4C8	Have changed descendants	If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Highlight directories that contain modified files in the Project tree option is enabled in Settings \| Version Control \| Confirmation.
#3264B4	Have immediate changed children	If a file is modified, the IDE will highlight its parent directory. This status is available if the Highlight directories that contain modified files in the Project tree option is enabled in Settings \| Version Control \| Confirmation.
#B28C00	Hijacked	[Perforce, ClearCase, VSS] The file is modified without checkout.
#727238	Ignored	A file is intentionally untracked by VCS.
#7503DC	Merged	The file is merged by your VCS as a result of an update.
#FF0000	Merged with conflicts	During the last update, the file has been merged with conflicts.
#FF0000	Merged with property conflicts	During the last update, the IDE has detected differences between the properties of the local file and its server version.
#FF0000	Merged with text and property conflicts	Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.
#0032A0	Modified	The file has changed since the last synchronization.
#0047E4	Modified in not active changelist	The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings \| Version Control \| Changelists.
#7C7C00	Obsolete	The file should no longer be in your working copy of the repository.
#007C7C	Renamed	Since the last update, the file has been renamed.
#08978F	Switched	[SVN] The file is taken from a different branch than the whole project.
#993300	(Unknown) Unversioned	The file exists locally but is not in the repository and is not scheduled for addition.
None (default color)	Up to date	The file hasn't been changed.

Color	File Status	Description
#629755	Added	The file in the active changelist is scheduled for addition to the repository.
#629755	Added in not active changelist	The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings \| Version Control \| Changelists.
#D5756C	Changelist conflict	The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open, prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings \| Version Control \| Changelists.
#0A7700	Copied	If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.
#6C6C6C	Deleted	The file is scheduled for deletion from the repository.
#6C6C6C	Deleted from file system	The file has been deleted locally but hasn't been scheduled for deletion, and it still exists in the repository.
#6897BB	Have changed descendants	If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Highlight directories that contain modified files in the Project tree option is enabled in Settings \| Version Control \| Confirmation.
#6897BB	Have immediate changed children	If a file is modified, the IDE will highlight its parent directory. This status is available if the Highlight directories that contain modified files in the Project tree option is enabled in Settings \| Version Control \| Confirmation.
None (default color)	Hijacked	[Perforce, ClearCase, VSS] The file is modified without checkout.
#848504	Ignored	A file is intentionally untracked by VCS.
#9876AA	Merged	The file is merged by your VCS as a result of an update.
#D5756C	Merged with conflicts	During the last update, the file has been merged with conflicts.
#D5756C	Merged with property conflicts	During the last update, the IDE has detected differences between the properties of the local file and its server version.
#D5756C	Merged with text and property conflicts	Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.
#6897BB	Modified	The file has changed since the last synchronization.
#6897BB	Modified in not active changelist	The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings \| Version Control \| Changelists.
None (default color)	Obsolete	The file should no longer be in your working copy of the repository.
#3A8484	Renamed	Since the last update, the file has been renamed.
None (default color)	Switched	[SVN] The file is taken from a different branch than the whole project.
#D1675A	(Unknown) Unversioned	The file exists locally but is not in the repository and is not scheduled for addition.
None (default color)	Up to date	The file hasn't been changed.

Color	File Status	Description
#62CC47	Added	The file in the active changelist is scheduled for addition to the repository.
#62CC47	Added in not active changelist	The file in an inactive changelist is scheduled for addition to the repository. This file status is available if the Highlight files from non-active changelists option is enabled in Settings \| Version Control \| Changelists.
#FF6666	Changelist conflict	The file in an inactive changelist has been modified in the active changelist. In this case, a new dialog will open, prompting you to resolve the changelist conflict. This file status is available if all options are enabled in Settings \| Version Control \| Changelists.
#62CC47	Copied	If a file is a copy of another file, its metadata is tracked, and such a file is marked as copied.
#ED864A	Deleted	The file is scheduled for deletion from the repository.
#ED864A	Deleted from file system	The file has been deleted locally but hasn't been scheduled for deletion, and it still exists in the repository.
#4FF0FF	Have changed descendants	If a file is modified, the IDE will recursively highlight all directories containing that file. This status is available if the Highlight directories that contain modified files in the Project tree option is enabled in Settings \| Version Control \| Confirmation.
#4FF0FF	Have immediate changed children	If a file is modified, the IDE will highlight its parent directory. This status is available if the Highlight directories that contain modified files in the Project tree option is enabled in Settings \| Version Control \| Confirmation.
None (default color)	Hijacked	[Perforce, ClearCase, VSS] The file is modified without checkout.
#A9B837	Ignored	A file is intentionally untracked by VCS.
#ED94FF	Merged	The file is merged by your VCS as a result of an update.
#FF6666	Merged with conflicts	During the last update, the file has been merged with conflicts.
#FF6666	Merged with property conflicts	During the last update, the IDE has detected differences between the properties of the local file and its server version.
#FF6666	Merged with text and property conflicts	Text and property conflicts happen when two or more developers modify the same lines of a file and the same file properties.
#4FF0FF	Modified	The file has changed since the last synchronization.
#4FF0FF	Modified in not active changelist	The file in an inactive changelist has been modified. This file status is available if the Highlight files from non-active changelists option is enabled in Settings \| Version Control \| Changelists.
None (default color)	Obsolete	The file should no longer be in your working copy of the repository.
#4FF0FF	Renamed	Since the last update, the file has been renamed.
None (default color)	Switched	[SVN] The file is taken from a different branch than the whole project.
D1675A	(Unknown) Unversioned	The file exists locally but is not in the repository and is not scheduled for addition.
None (default color)	Up to date	The file hasn't been changed.

File colors

Files that belong to different scopes (production files or test files, for example) can be highlighted in different colors in the Project tool window , search results, and editor tabs.

To each scope, you can assign its own color. For more information, refer to Associate scopes with colors.

Scope highlighting in the editor tabs and search results

Last modified: 11 November 2024
