Code coverage

Running CMake applications or tests with coverage

The Run with Coverage action is available for CMake Application and test configurations (Boost.Test, Google Test, or Catch).

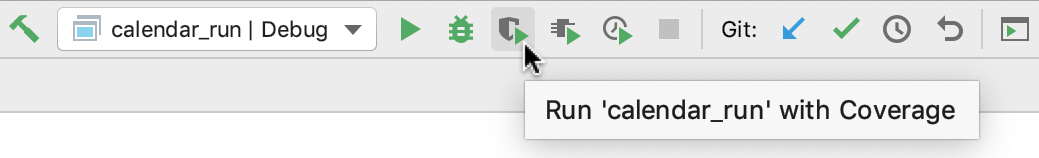

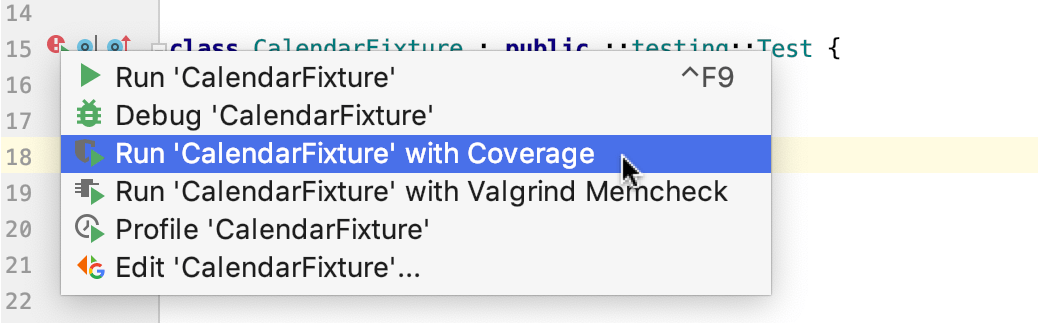

You can call Run with Coverage from the toolbar next to the configuration switcher or from the gutter menu:

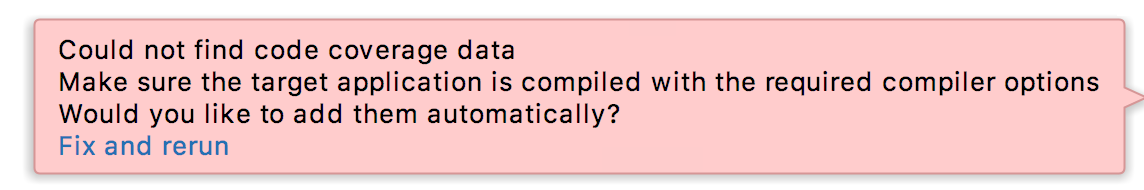

When you call Run with Coverage, but no coverage files (.gcov or .profraw) are found, CLion suggests adding the coverage flags:

If you click Fix and rerun, CLion will do the following:

1. Search for an existing CMake profile, which has the same build type, toolchain, and CMake options as in the currently used profile, but with added compiler options for coverage (refer to Coverage compiler flags). If one is found, CLion will switch to it and use it to run your configuration with coverage.

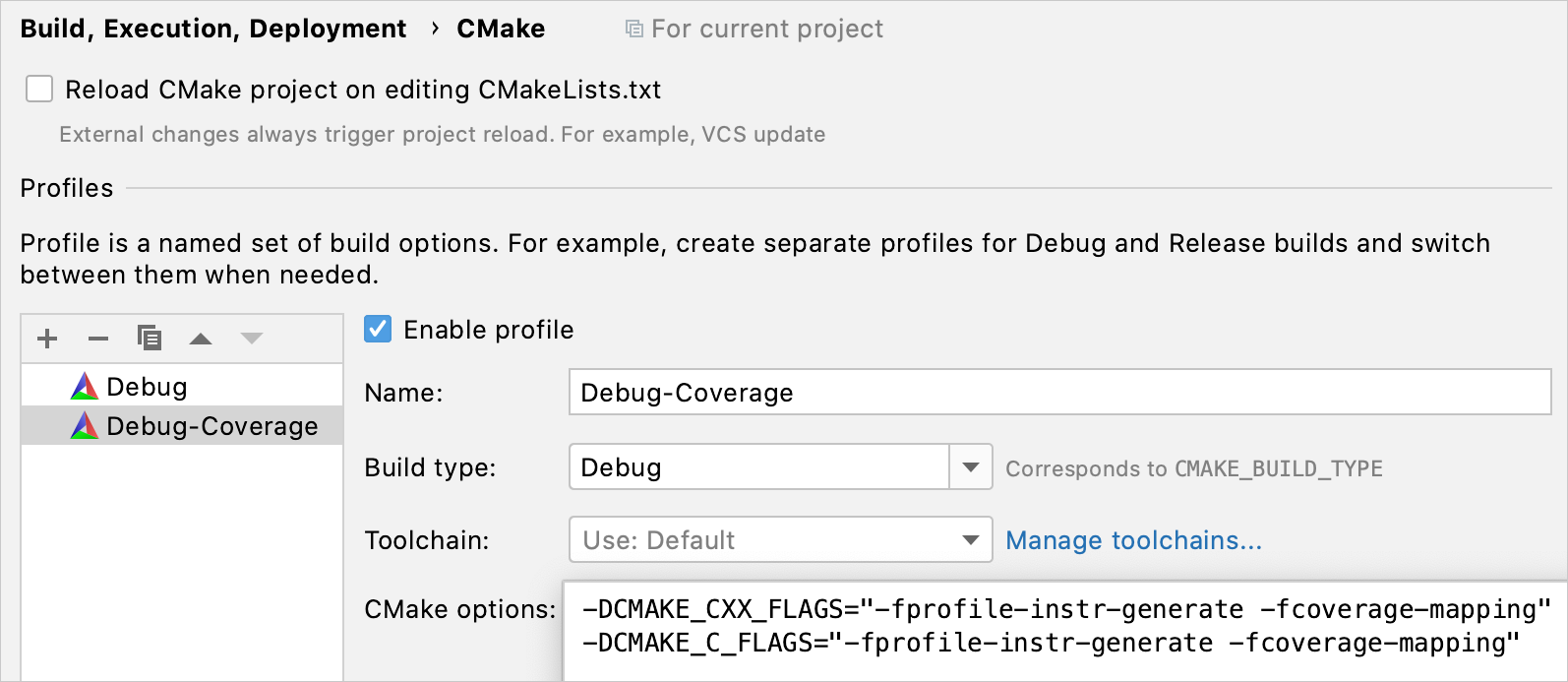

2. If no such profile is found, CLion will create a new one, copying the Build type, Toolchain, and CMake Options parameters from the current profile and passing the coverage flags as CMAKE_CXX_FLAGS and CMAKE_C_FLAGS in CMake options. Then CLion will switch to this newly created profile and use it to run you configuration with coverage.



Coverage compiler flags

If you pass coverage flags manually, you can use one of the following options depending on the compiler and coverage tooling you prefer:

• GCC

  -fprofile-arcs -ftest-coverage or --coverage

  In this case, the gcov tool will be used.

• Clang/Clang-cl

  Two options here:

  • Use the same flags as for GCC to get the gcov-style coverage collected with llvm-cov gcov.

  • Use -fprofile-instr-generate -fcoverage-mapping to invoke the Clang’s instrumentation-based profiling which uses a pair of the llvm-profdata merge and llvm-cov export commands.

You can provide the flags by setting the CMAKE_CXX_FLAGS variable (CMAKE_C_FLAGS for C projects) or using other alternatives like the add_compile_options command.

Coverage results

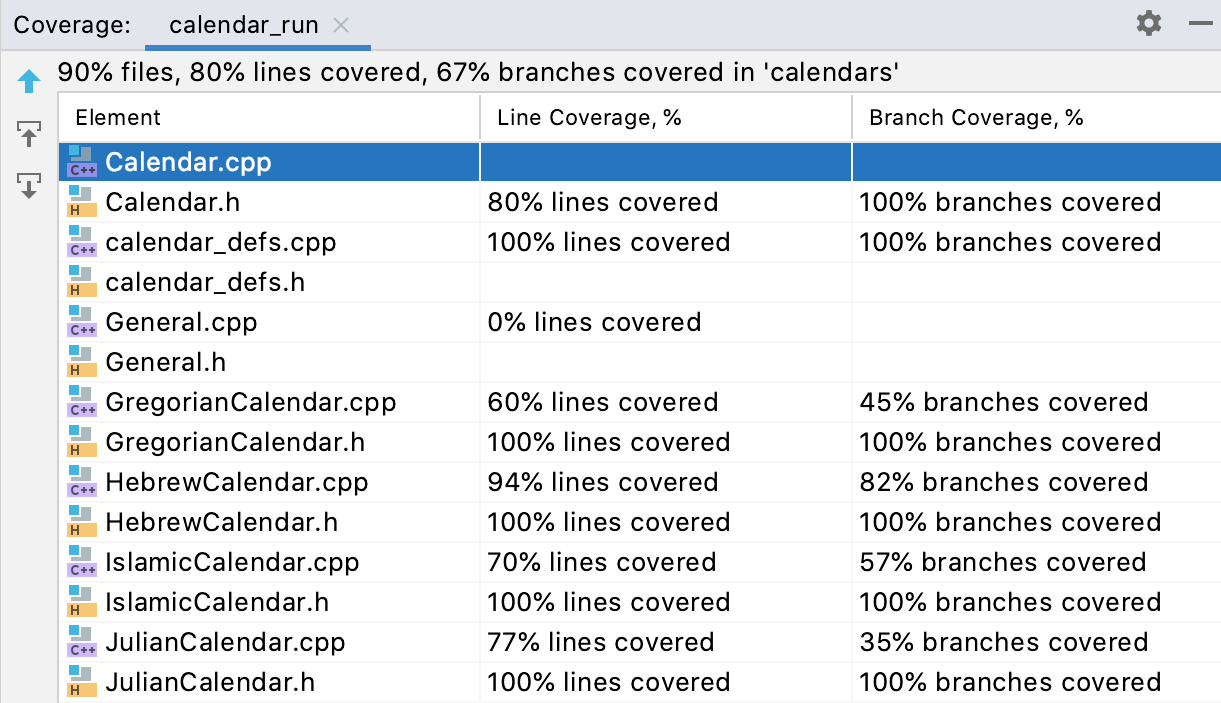

When coverage data is ready, the Coverage tool window opens up automatically. Initially, it shows the percentage of files per folder covered during the launch. If you double-click a folder, you will see the Line Coverage and Branch Coverage columns.

• Line Coverage shows how many lines per file were covered. Note the following difference in how it works depending on the compiler and the flags you are using:

  GCC/gcov (the --coverage flag) gives exact line coverage. When there are several code blocks in one line, that line is considered fully covered (marked green in the editor) if at least some of the statements were executed.

  Clang/llvm-cov, when the program is compiled with -fprofile-instr-generate -fcoverage-mapping, provides statement coverage. If not all the statements in a line were executed, the line is marked as partially covered (yellow).

• Branch Coverage takes into account all the branches of each control structure.

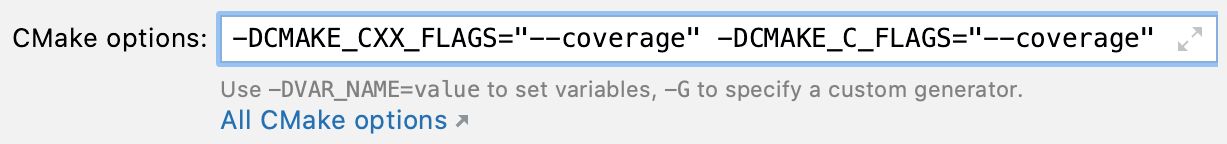

  It is supported for LLVM version 12.0.0 or later and for any version of GCC. On macOS, the version of AppleClang matches to an earlier LLVM version (refer to this table). AppleClang 12.0.x corresponds to LLVM 10.0.x, which doesn't support branch coverage. To workaround this, you can switch to GCC or change the coverage compiler flags to --coverage:



  GCC and the gcov tool consider the compiler-generated branches when calculating branch coverage. This might affect the results if, for example, you use exception handling.

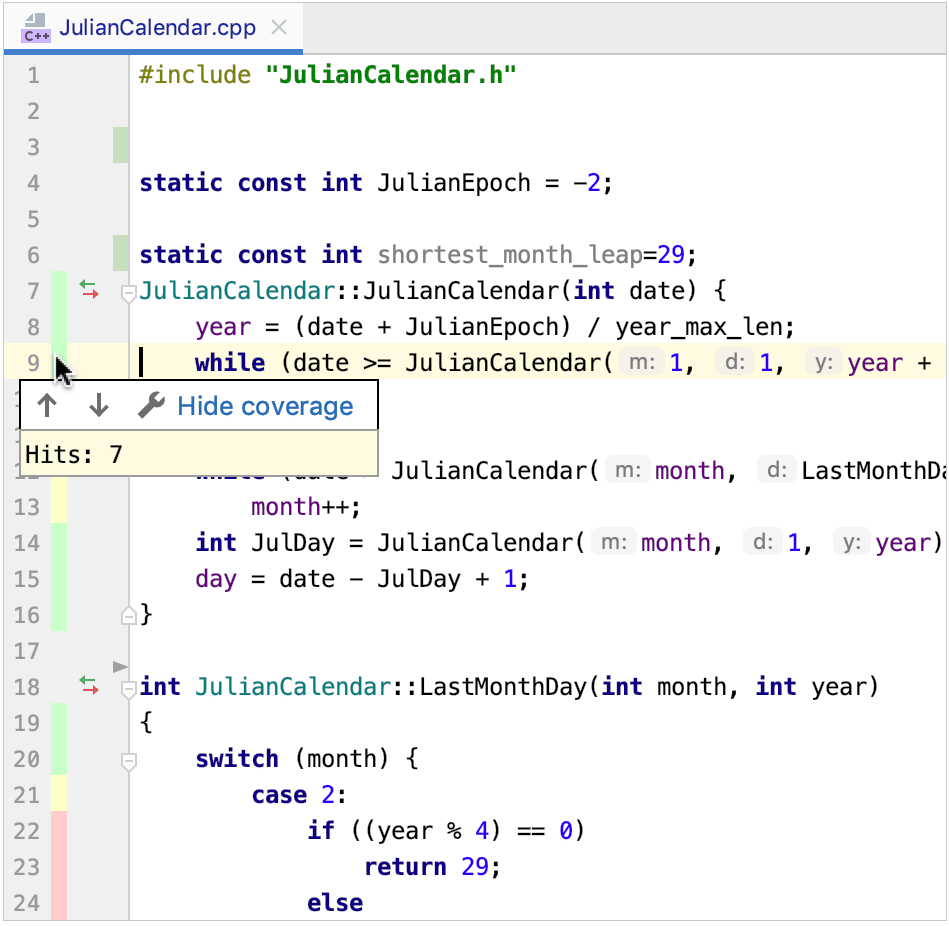

In any file, you can check the gutter indicator and click it next to a particular line to learn how many times it was hit:

A line executed fully is marked green. Yellow marker means that it was only partically executed.

To modify the colors of coverage highlighting, click or go to Settings | Editor | Color Scheme | General and expand the Line Coverage node.

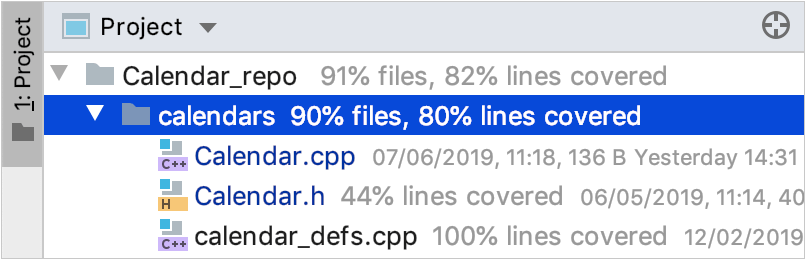

CLion also shows coverage statistics in the Project view

:

Coverage suites

The collection of coverage data for a specific run is called a coverage suite.

CLion can display the results for one or more coverage suites at once. If multiple suites are selected, the IDE displays merged results from these suites. This means that a line is considered covered if it was executed in at least one of the selected suites.

The corresponding suite files are located in the CLion's system directory:

Merging results from several runs

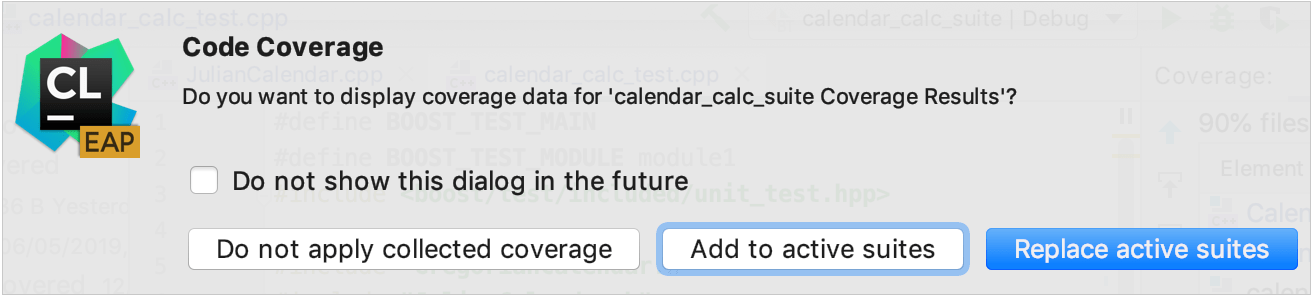

When you rerun coverage analysis, CLion prompts you to choose how you prefer the new results to be presented:

Add to active suites – new results will be added to the previously collected statistics.

Replace active suites – the already collected data will be overwritten.

Do not apply collected coverage data – new results will be ignored.

Coverage settings

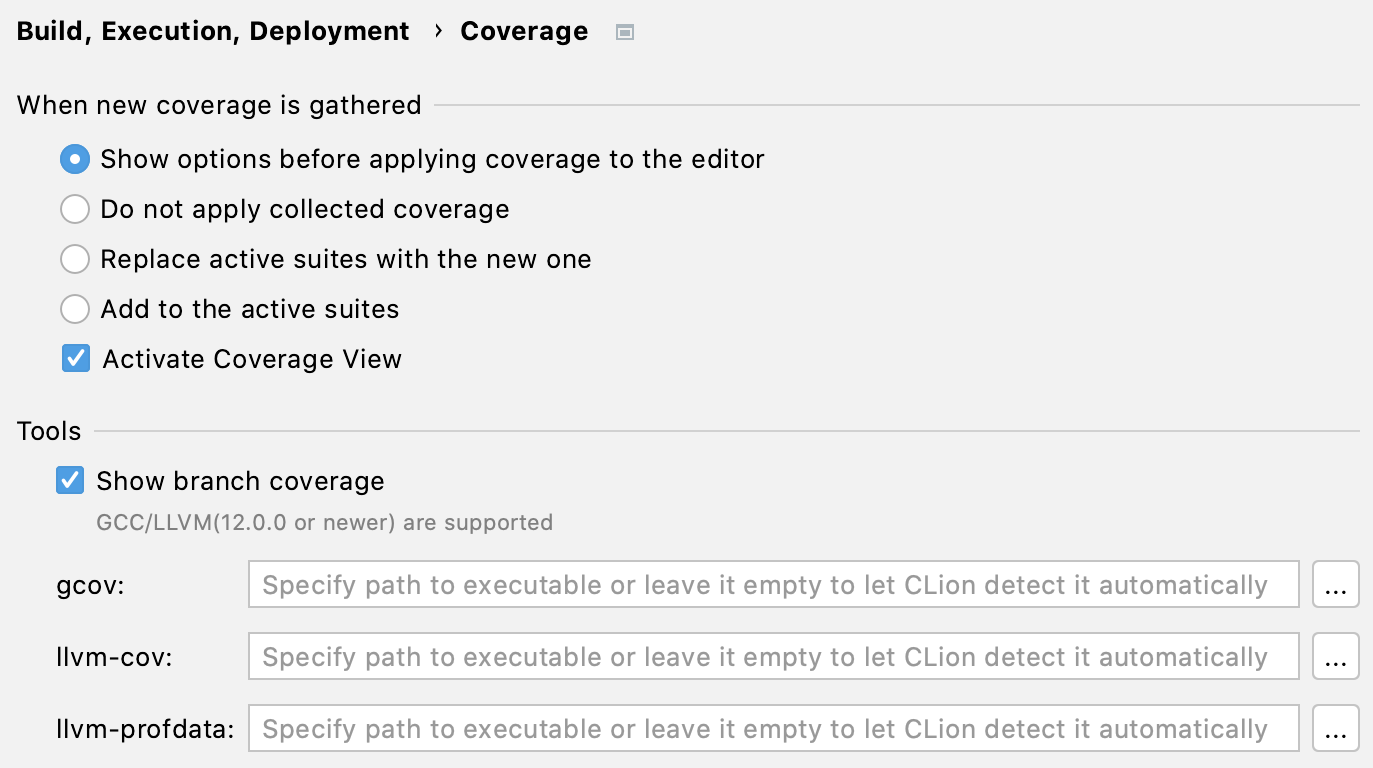

Code coverage settings are gathered in the Settings | Build, Execution, Deployment | Coverage:

In the Tools section, you can provide custom paths to gcov/llvm-cov/llvm-profdata. By default, CLion takes the paths from the PATH environment varible.

Troubleshooting

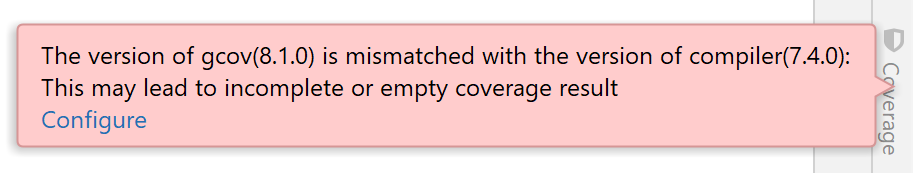

• If you get empty coverage reports, check whether your compiler version matches the version of gcov / llvm-cov tool (default or custom) that you are using.



  Keep this in mind when changing compilers or switching from one Windows toolchain to another.
