Google Kubernetes Engine

Harnessing the Power of Google Kubernetes Engine.

Creating a new cluster

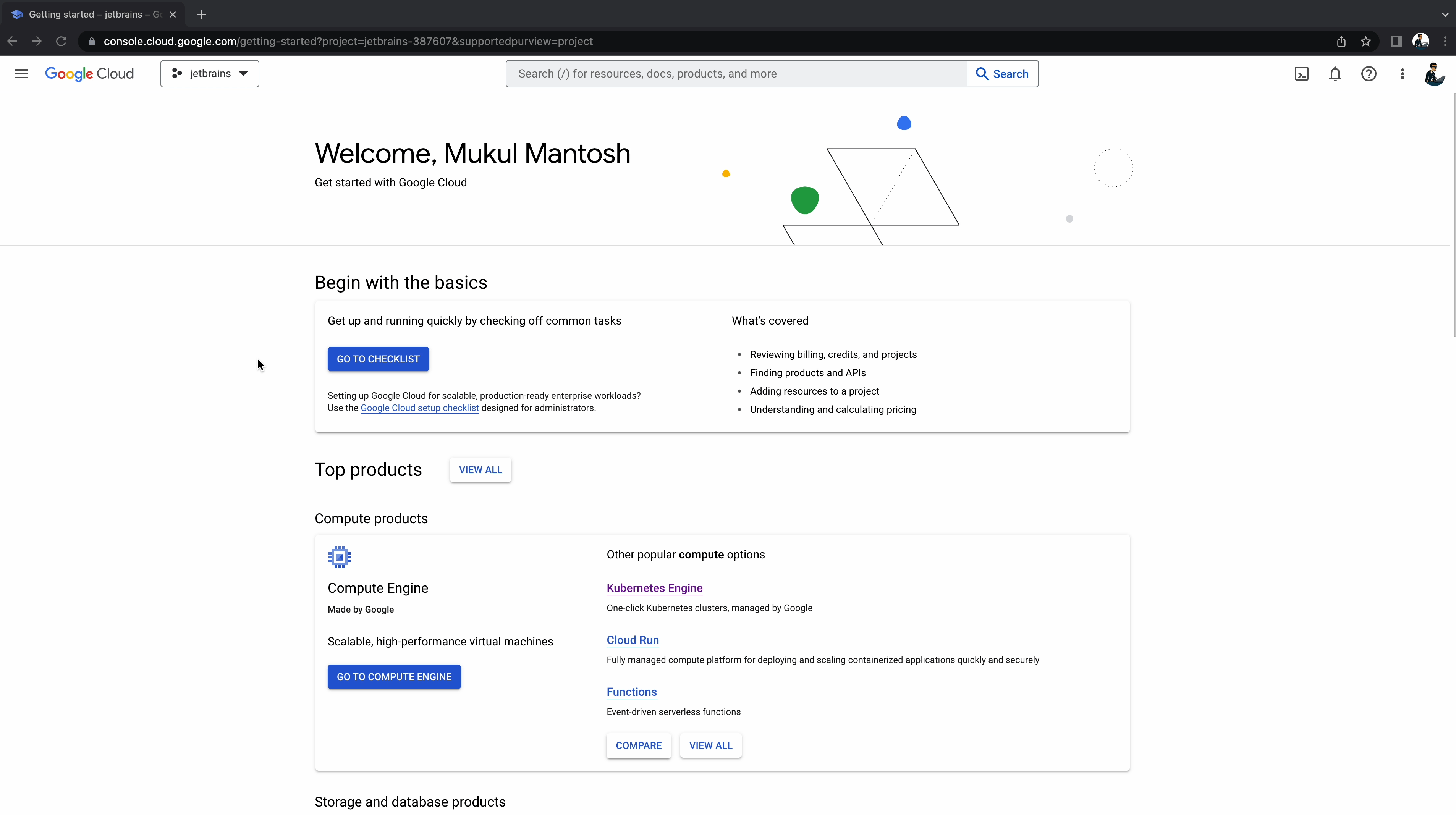

We’re now going to set up Google Kubernetes Engine (GKE). Before we start, ensure you have a valid Gmail account then visit the following URL: console.cloud.google.com.

gke1

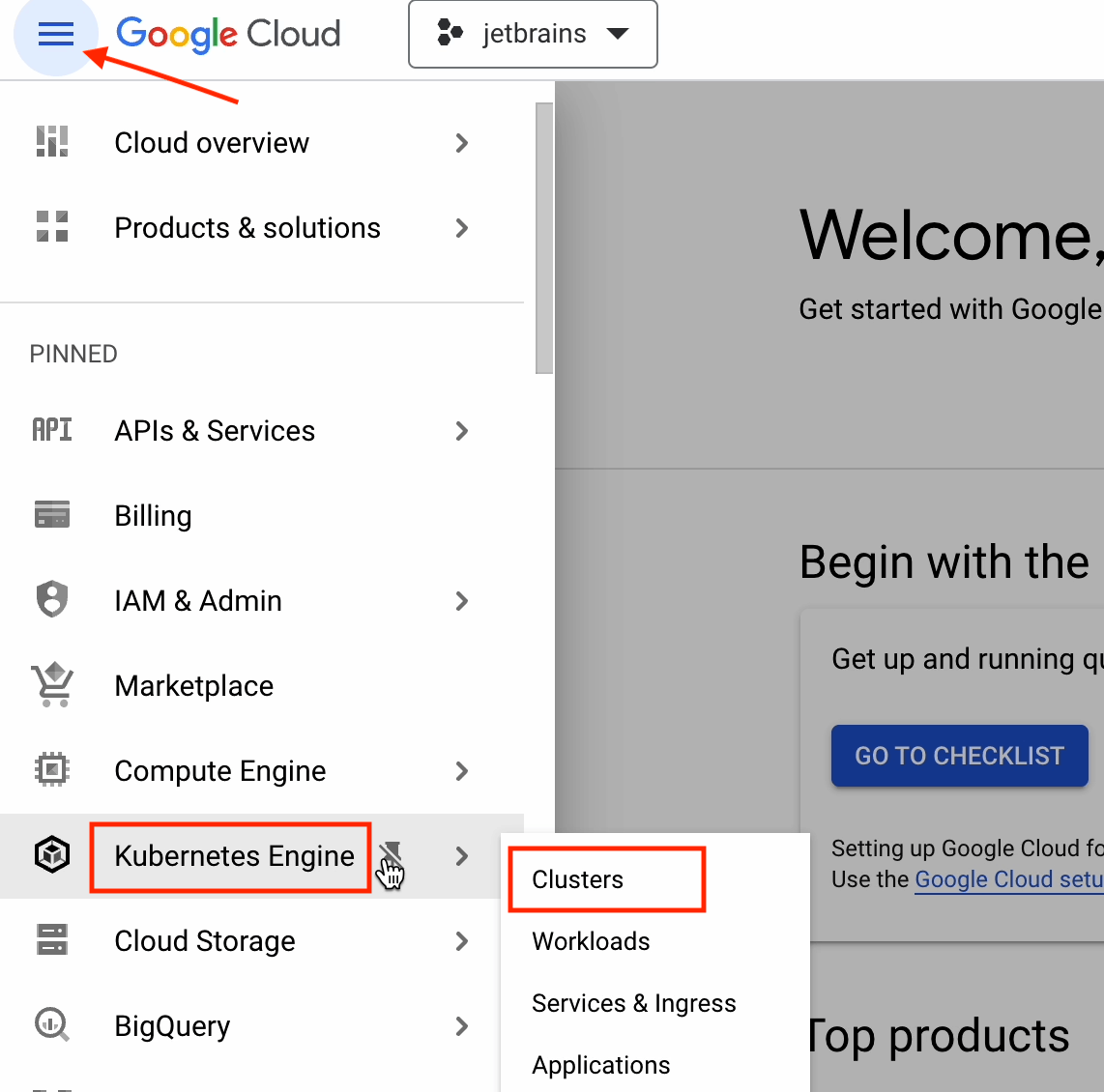

Click on the hamburger menu and go to Kubernetes Engine | Clusters

gke2

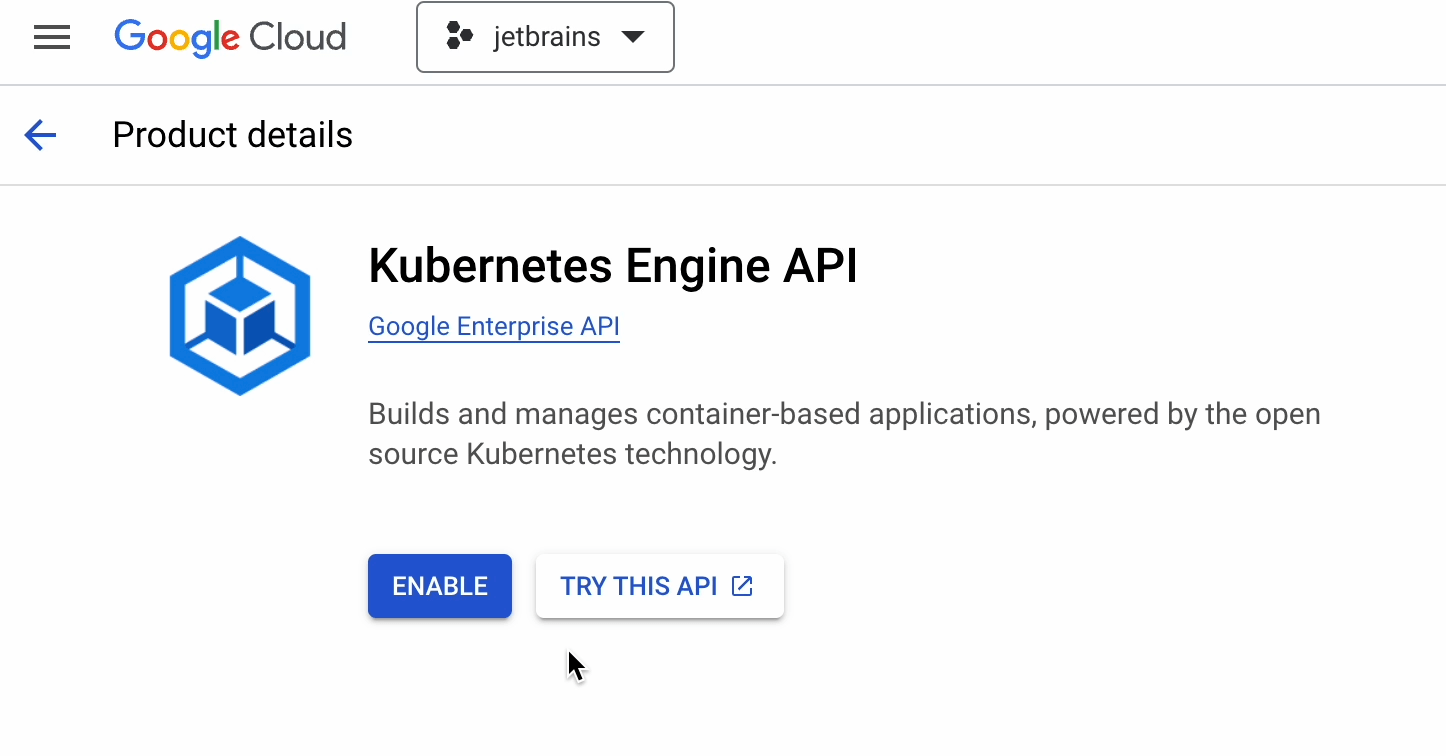

Enable the Kubernetes Engine API. It will take a few seconds to initialize.

gke3

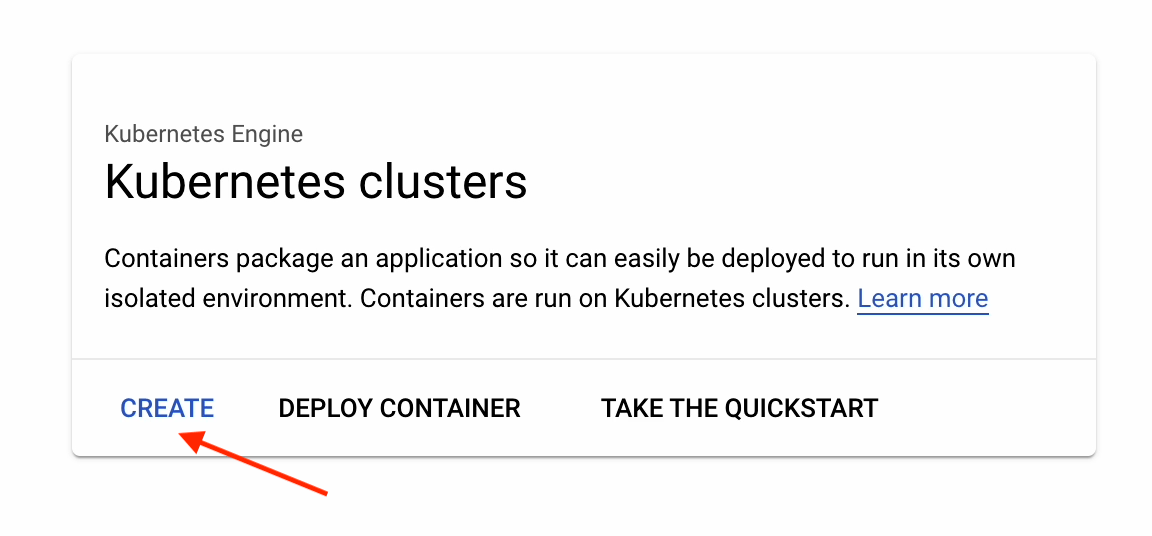

Click on Create.

gke4

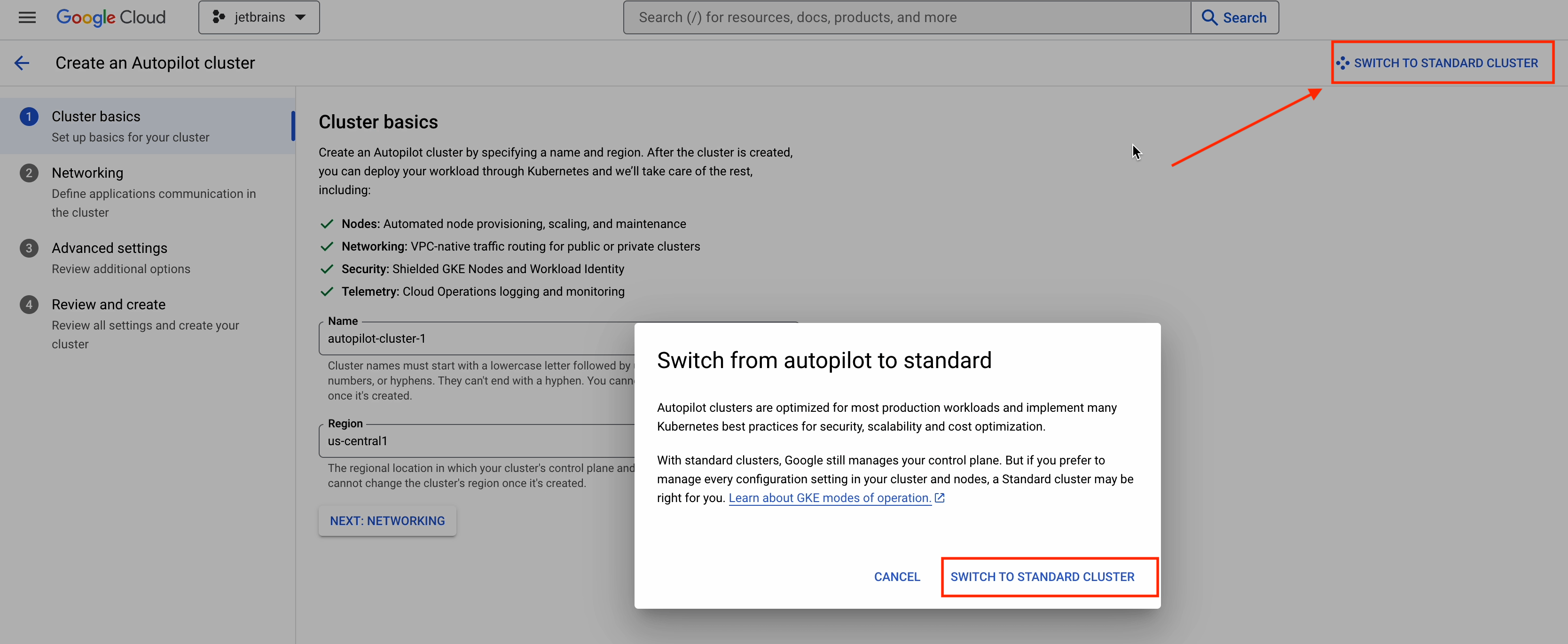

Select Switch to Standard Cluster.

gke5

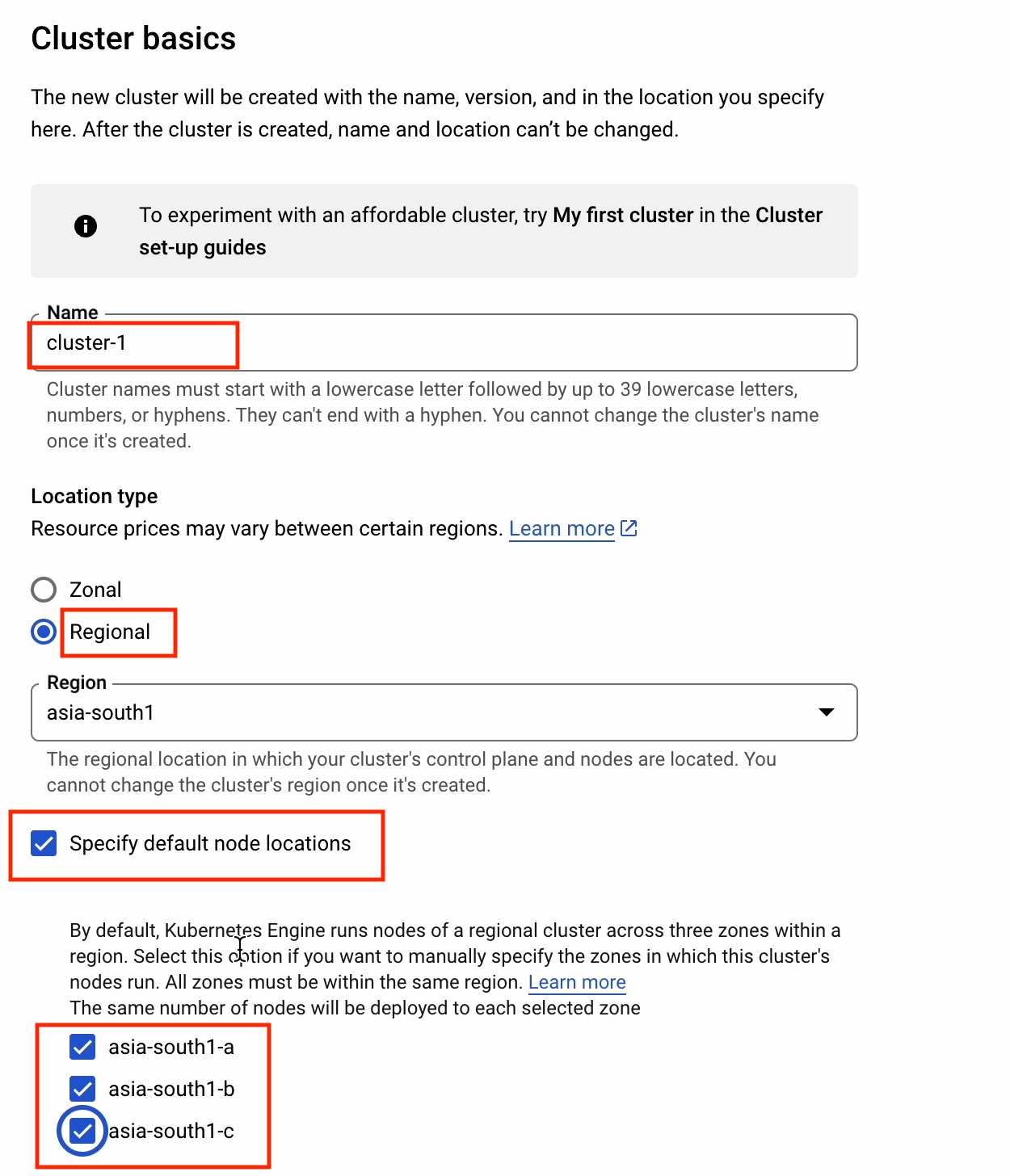

Enter your cluster’s basic information as follows:

  • Choose a cluster name. For the purposes of this demonstration, I’ll select the default.
  • Set the location to Regional.
  • Click on Specify node locations and pick all three locations.

gke6

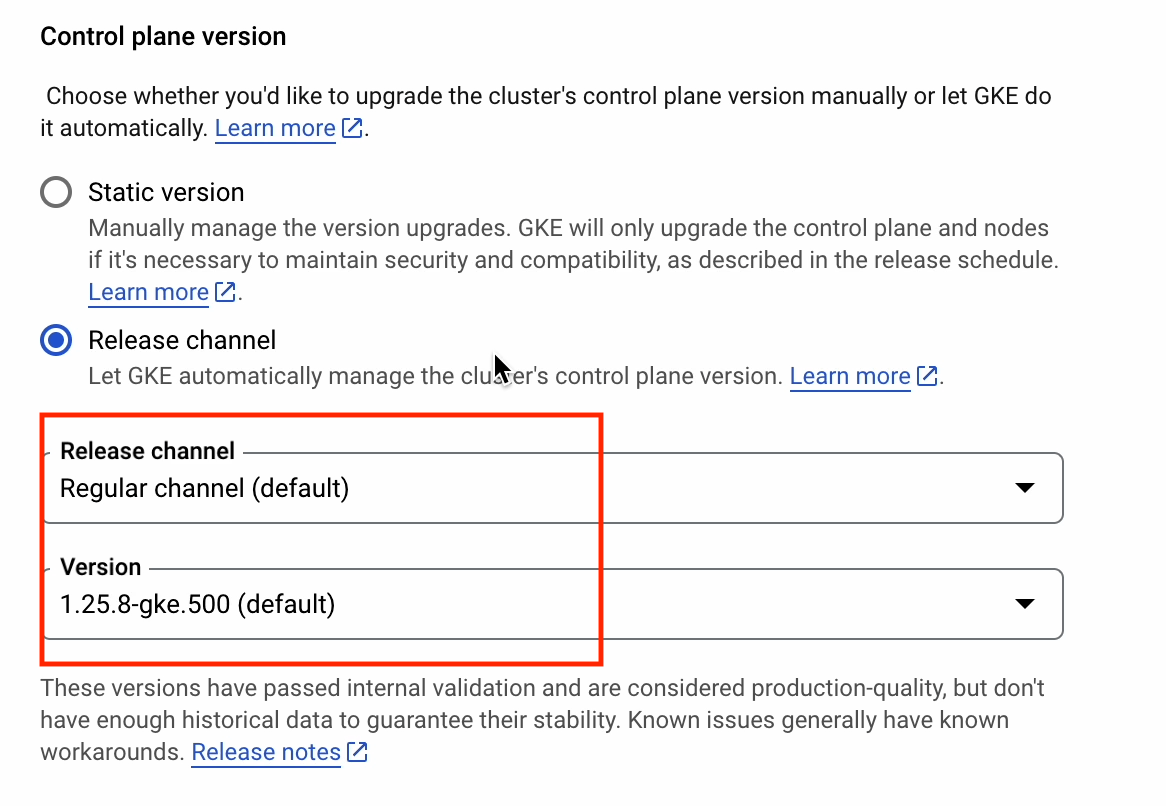

I’ll choose the regular channel and select Kubernetes version 1.25.8.

gke7

To find out more about release channels, follow this link: cloud.google.com/kubernetes-engine/docs/concepts/release-channels.

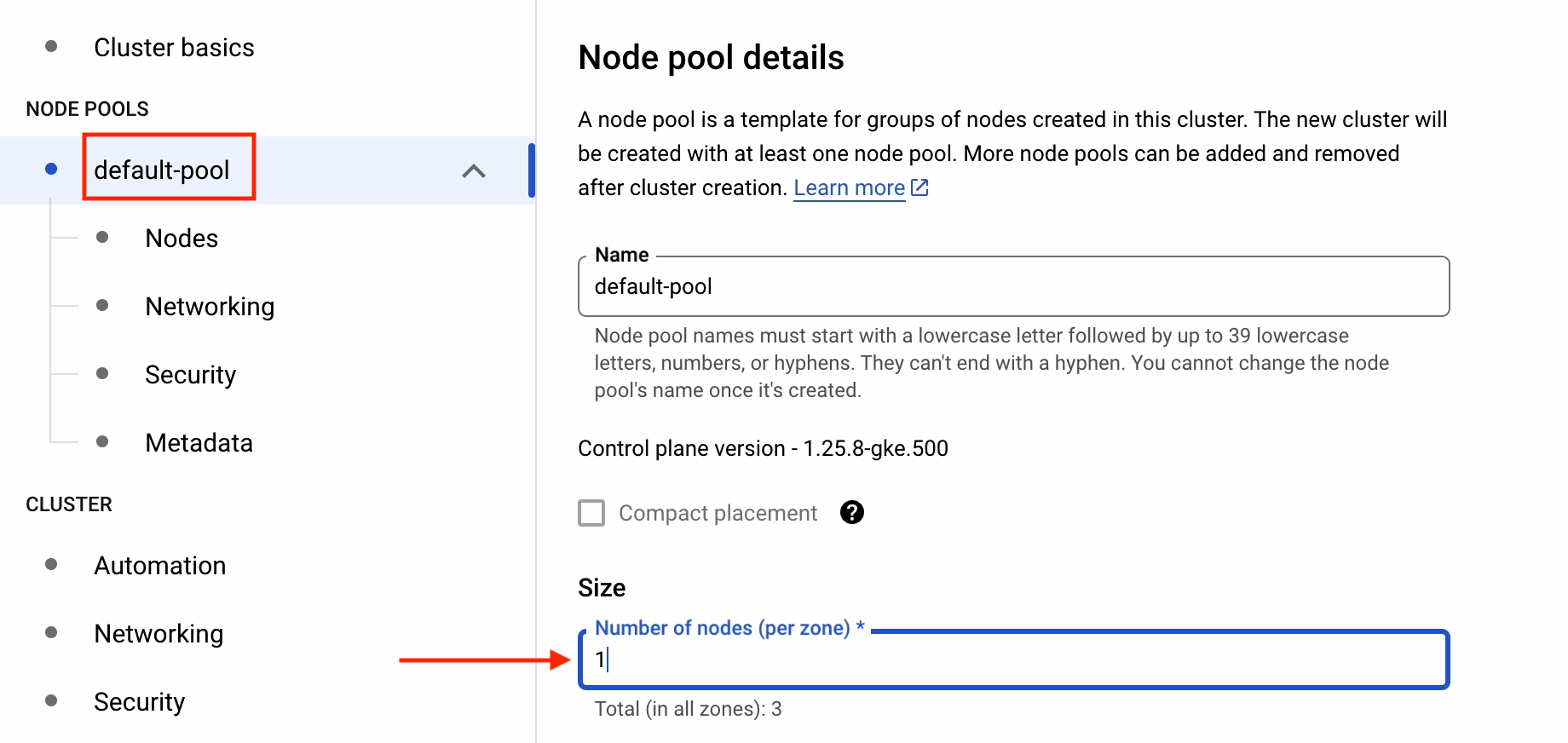

In the default-pool section, I’ll select one node per zone. There are three zones, so there will be three nodes in total.

gke8

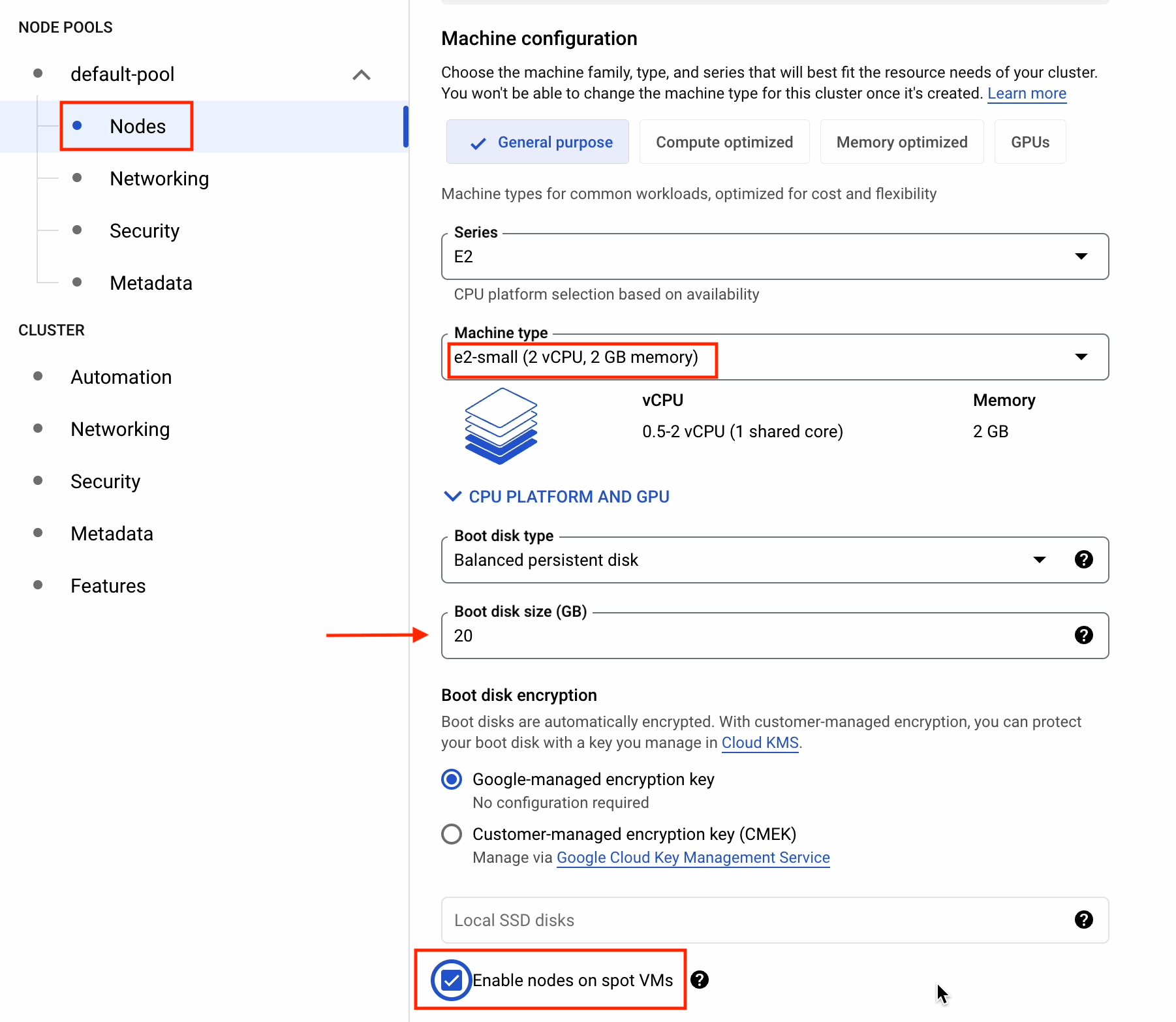

Under Nodes, make the following changes to reduce the cost:

  • Change Machine type to e2-small.
  • Change Boot disk size to 20GB.
  • Tick Enable nodes on spot VMs.

To learn more about Spot VMs, visit: cloud.google.com/compute/docs/instances/spot.

gke9

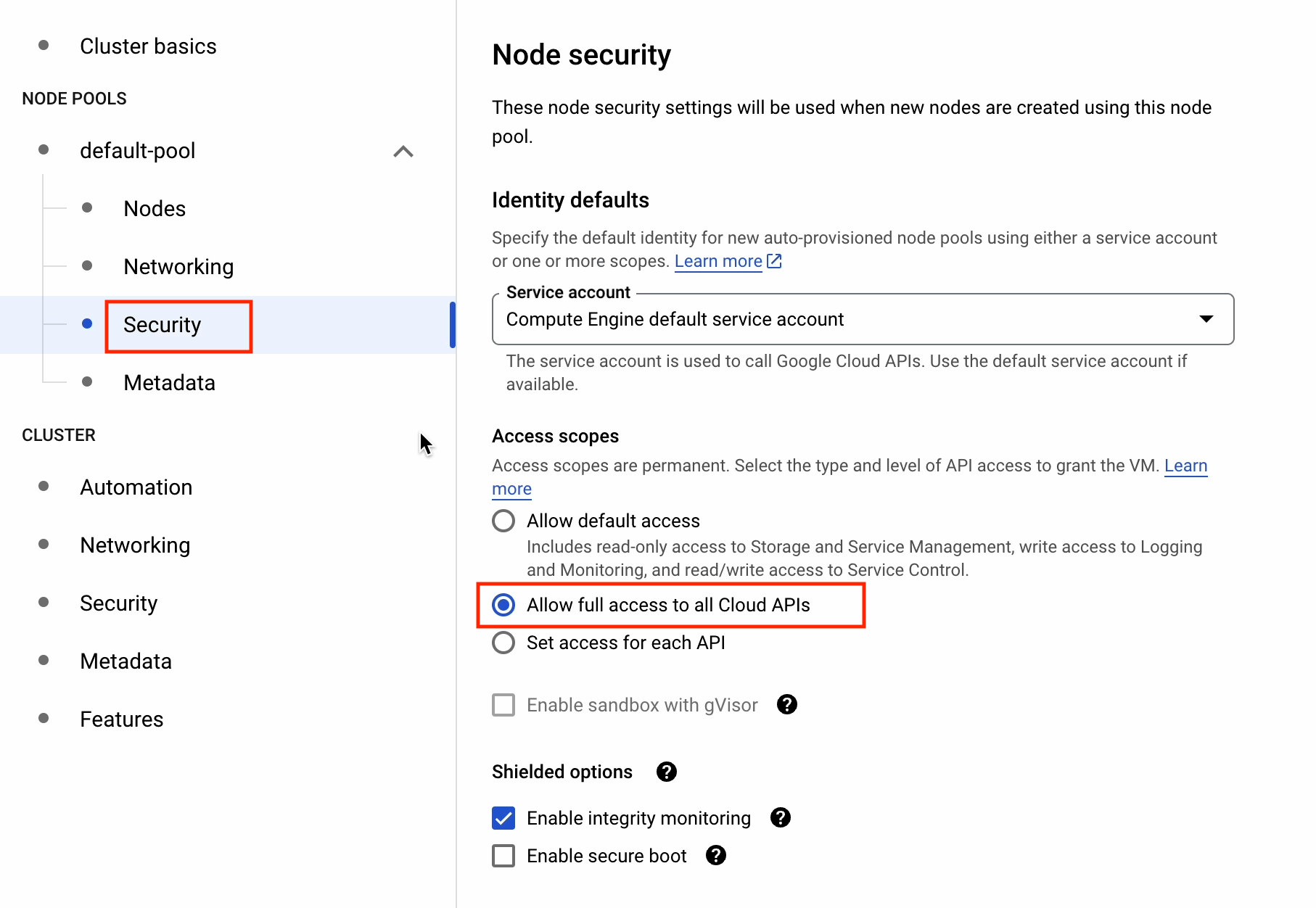

Under Security, select Allow full access to all Cloud APIs.

gke10

References: cloud.google.com/compute/docs/access/service-accounts#accesscopesiam

gke11

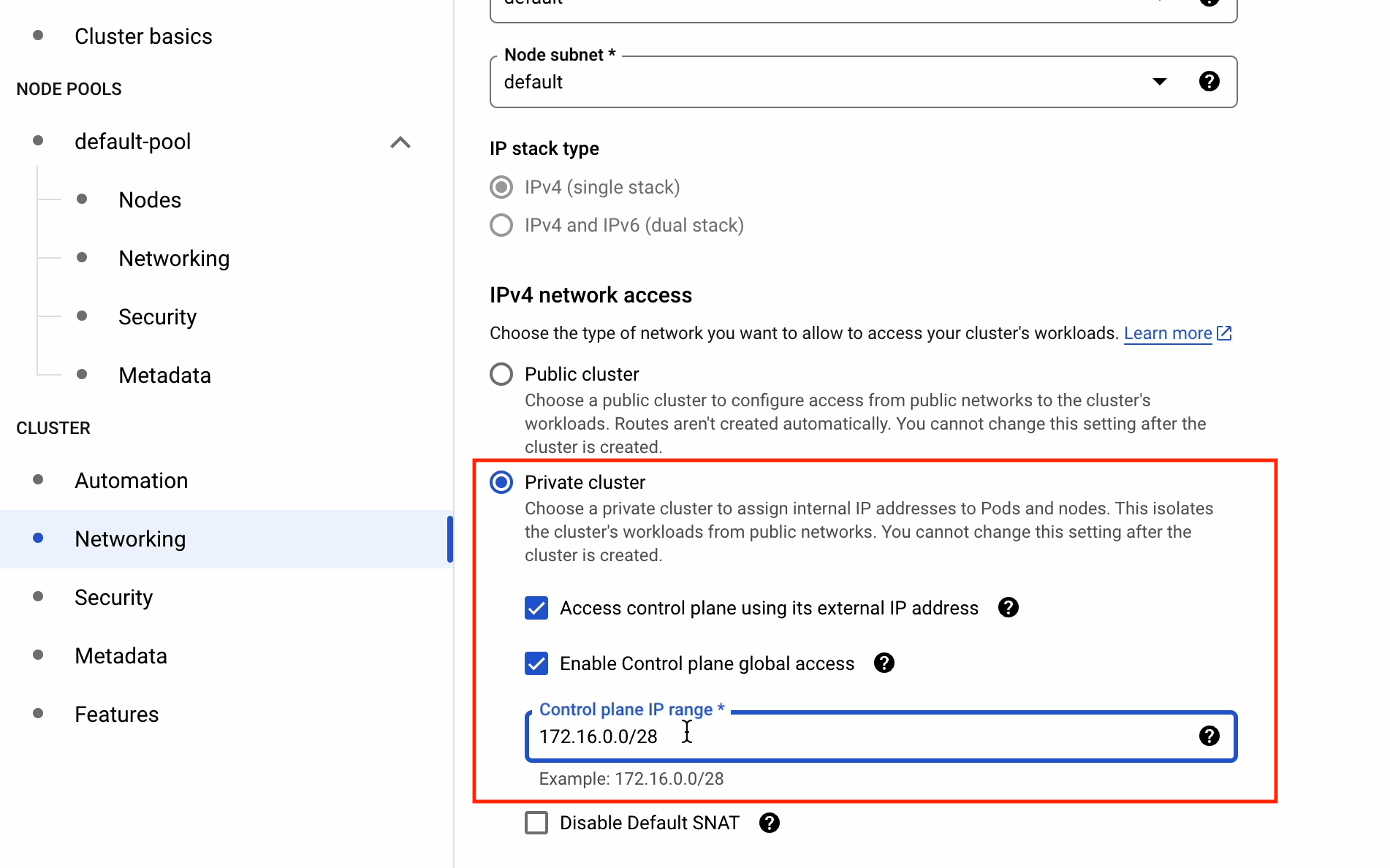

Continuing on with the networking section.

Tick the Access control plane using its external IP address and Enable control plane global access check boxes.

Make sure to provide the Control plane IP range.

References: cloud.google.com/kubernetes-engine/docs/how-to/private-clusters

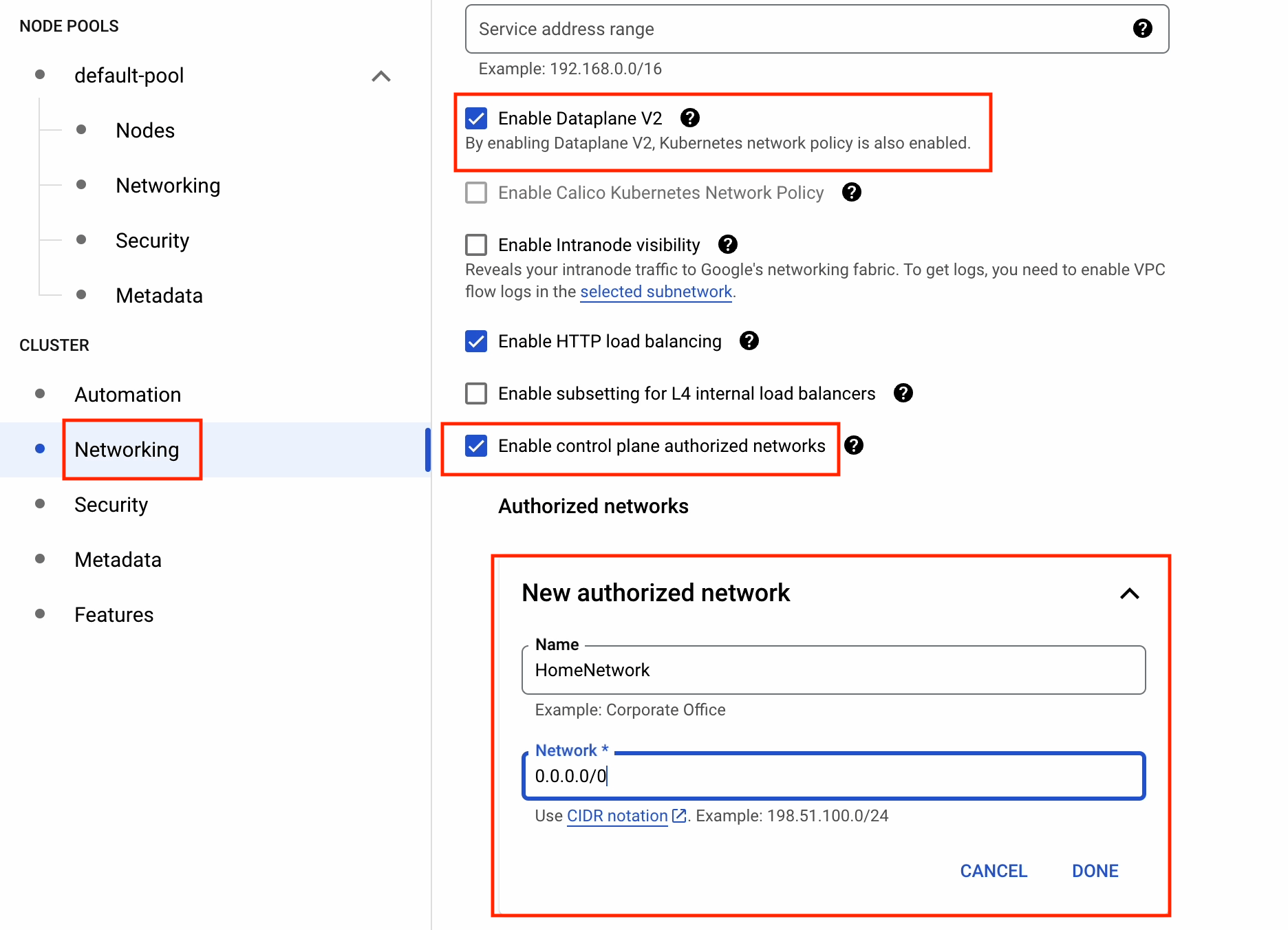

Under Cluster | Networking, tick the following boxes:

  • Enable Dataplane V2
  • Enable control plane authorized networks

GKE Dataplane V2 is a data plane for GKE and Anthos clusters that is optimized for Kubernetes networking.

To find out more about Dataplane V2, see: cloud.google.com/kubernetes-engine/docs/concepts/dataplane-v2.

In the Authorized networks section, I’ll try to access the cluster from the public internet. In the interest of security, only give a static IP address that is restricted to your organization.

gke12

Security is a broad subject area, and so we won’t go into too much detail here. However, if you’re interested learning more about hardening your clusters, then follow the link below: cloud.google.com/kubernetes-engine/docs/how-to/hardening-your-cluster.

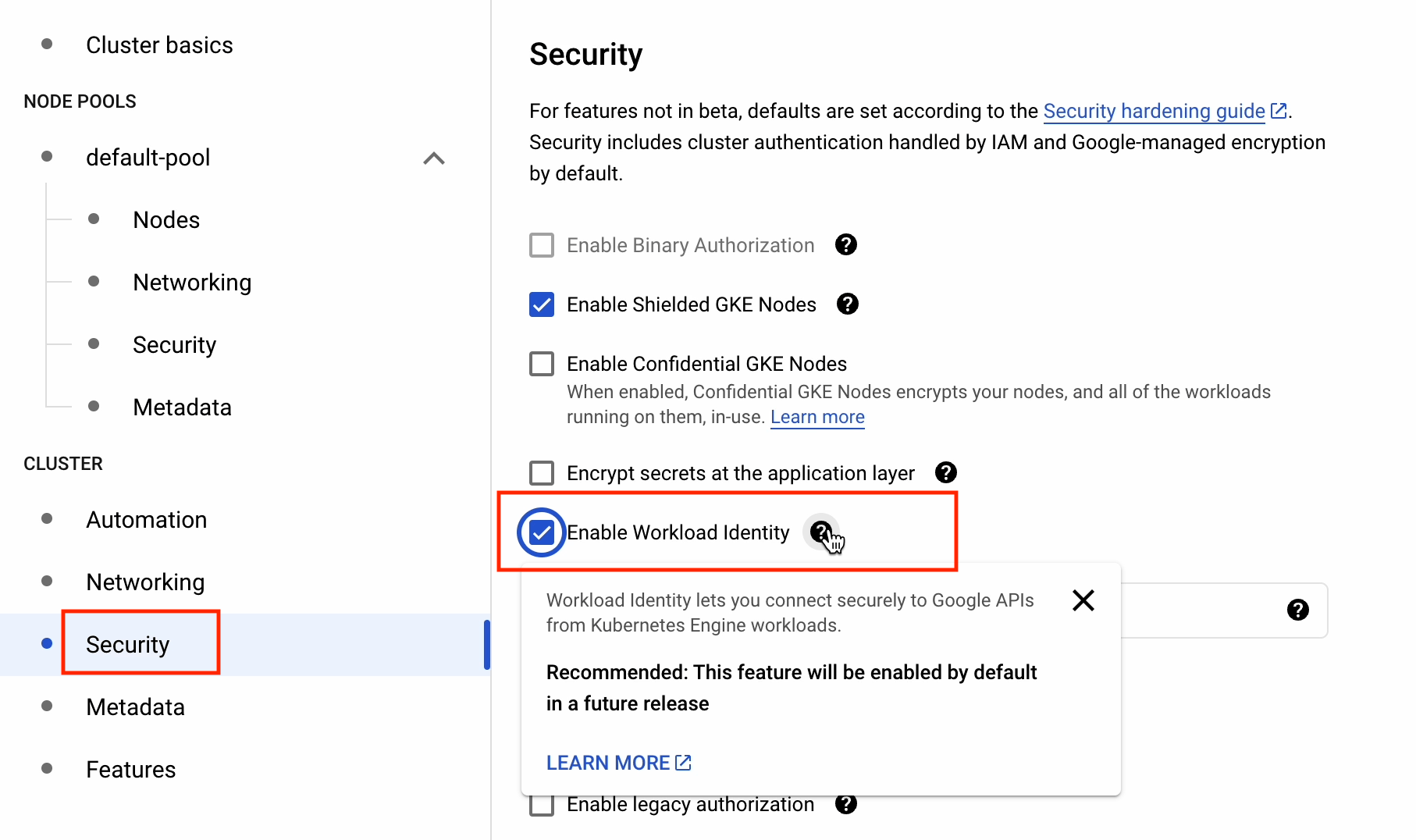

Under Cluster | Security, make sure to enable Workload Identity.

Workload Identity allows workloads in your GKE clusters to impersonate Identity and Access Management (IAM) service accounts in order to access Google Cloud services.

To learn more about Workload Identity, follow the link below:

cloud.google.com/kubernetes-engine/docs/how-to/workload-identity.

gke13

Now that we’ve made all the necessary changes, let’s proceed by clicking Create.

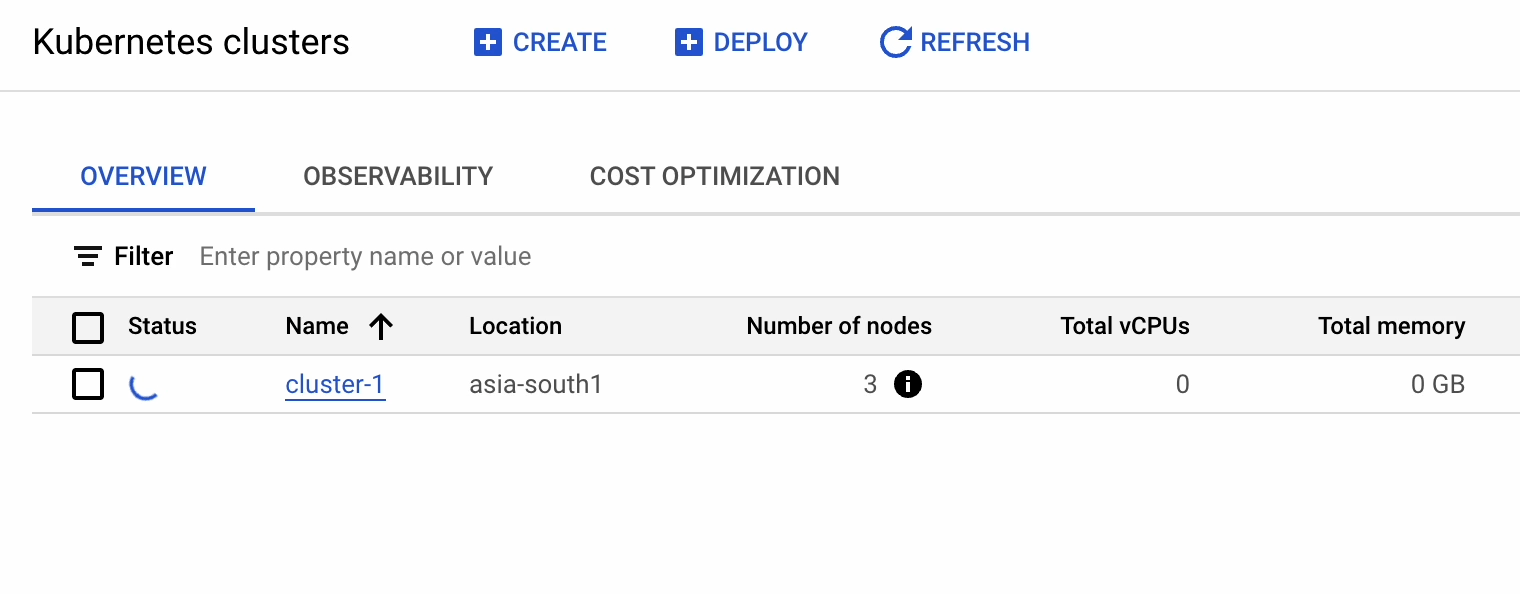

It will take a couple of minutes to launch the new cluster.

gke14

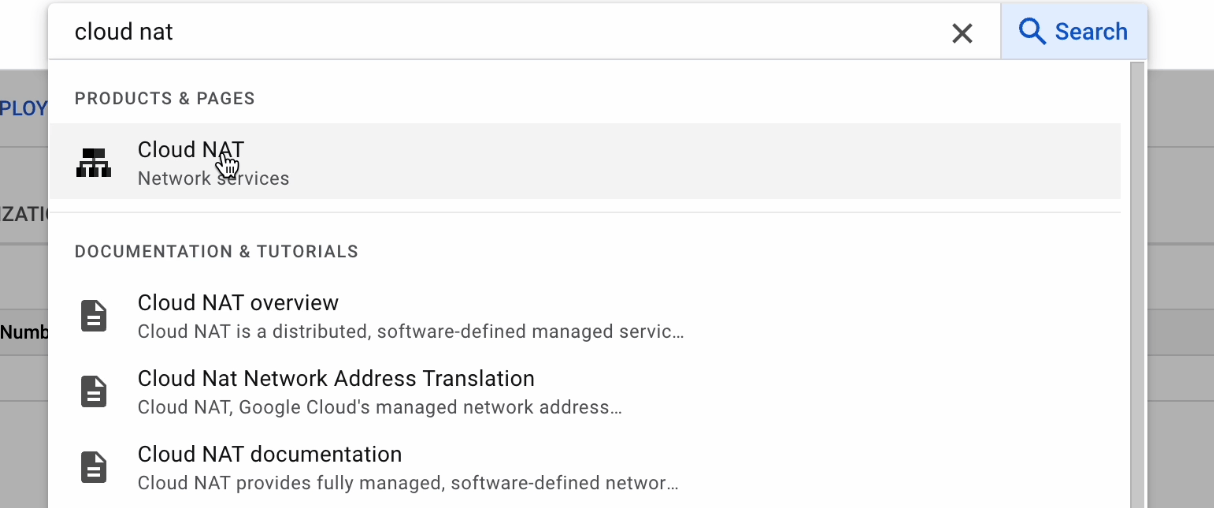

Cloud NAT

gke15

Cloud NAT provides outgoing connectivity for the following resources:

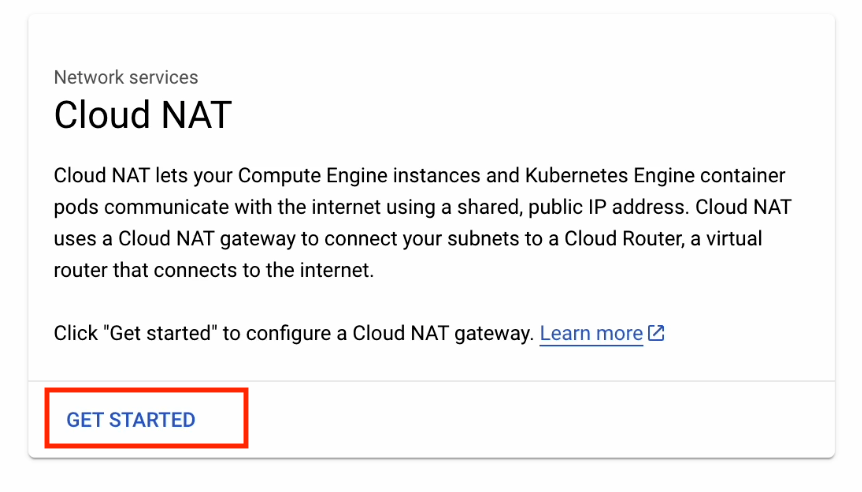

Click on Get Started.

gke16

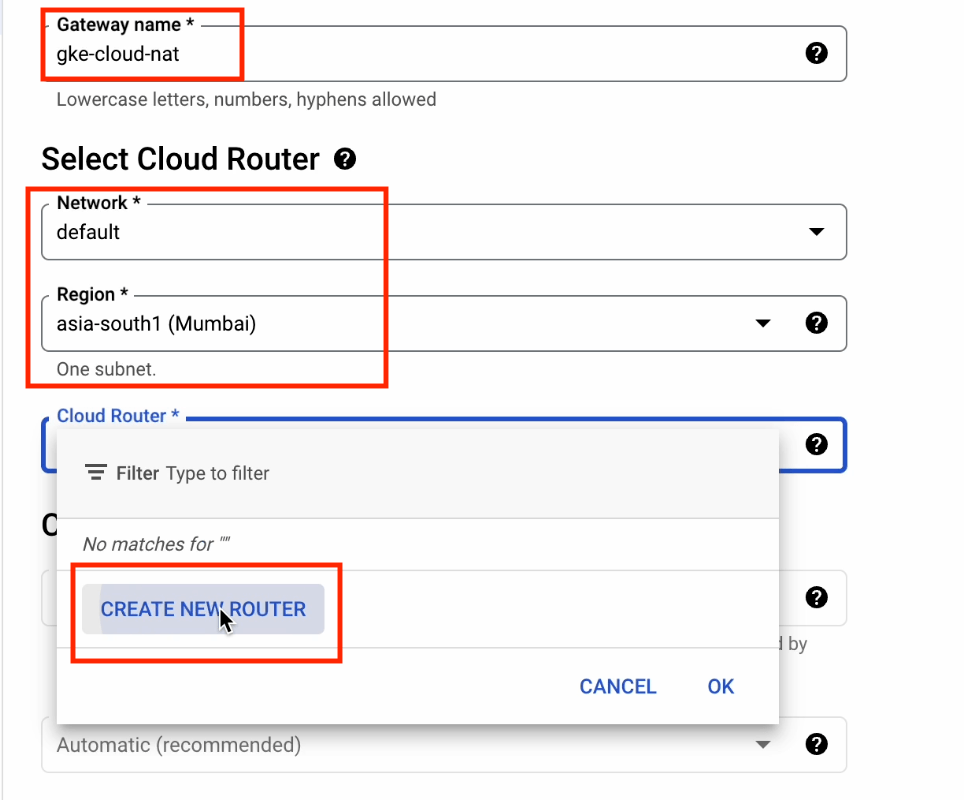

Provide the following information and choose your region which is closest to your location:

  • Gateway name – gke-cloud-nat
  • Region – asia-south1 Make sure to create a new cloud router.

gke17

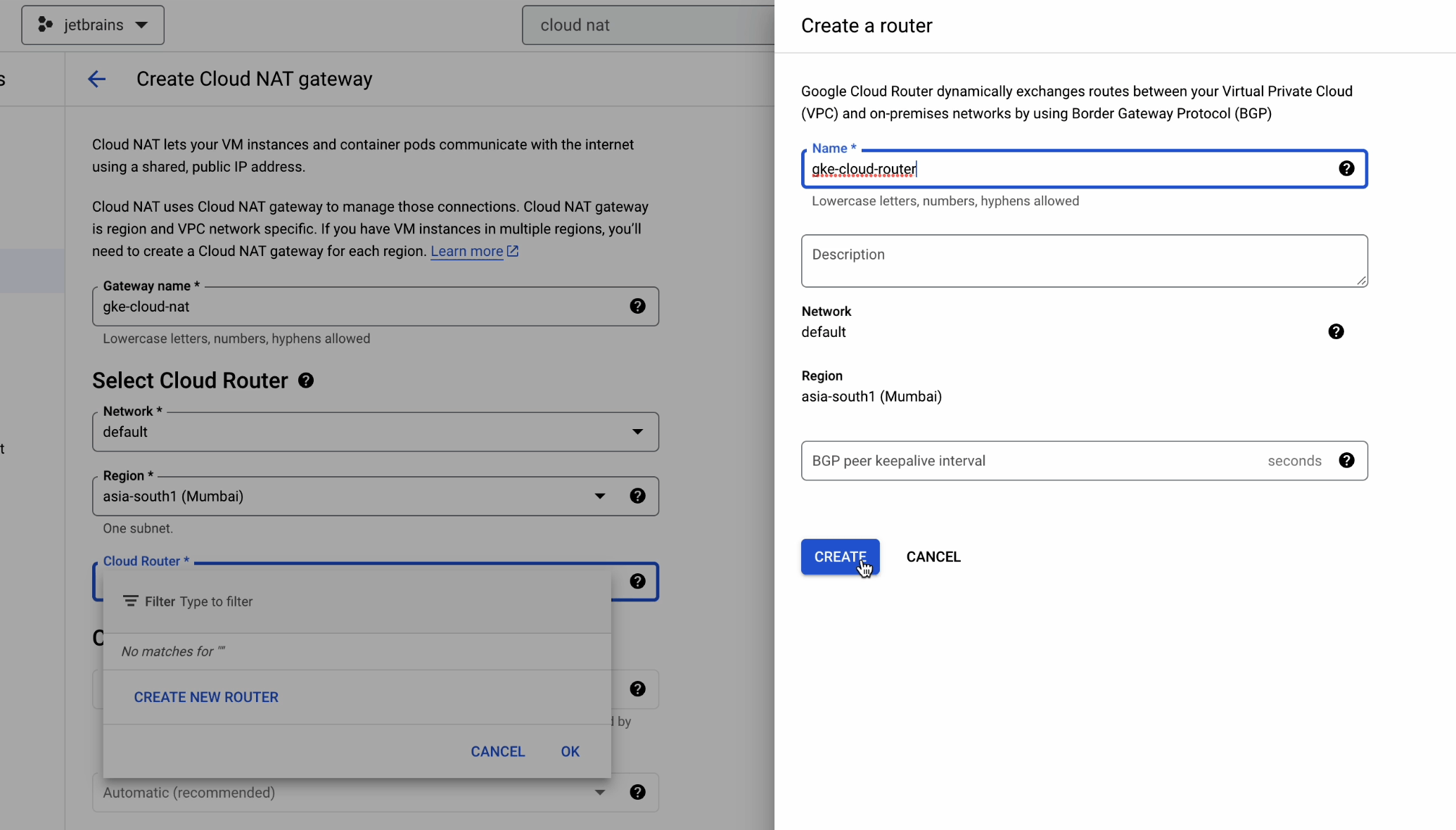

Name it “gke-cloud-router” and leave the rest of the fields set to their defaults.

gke18

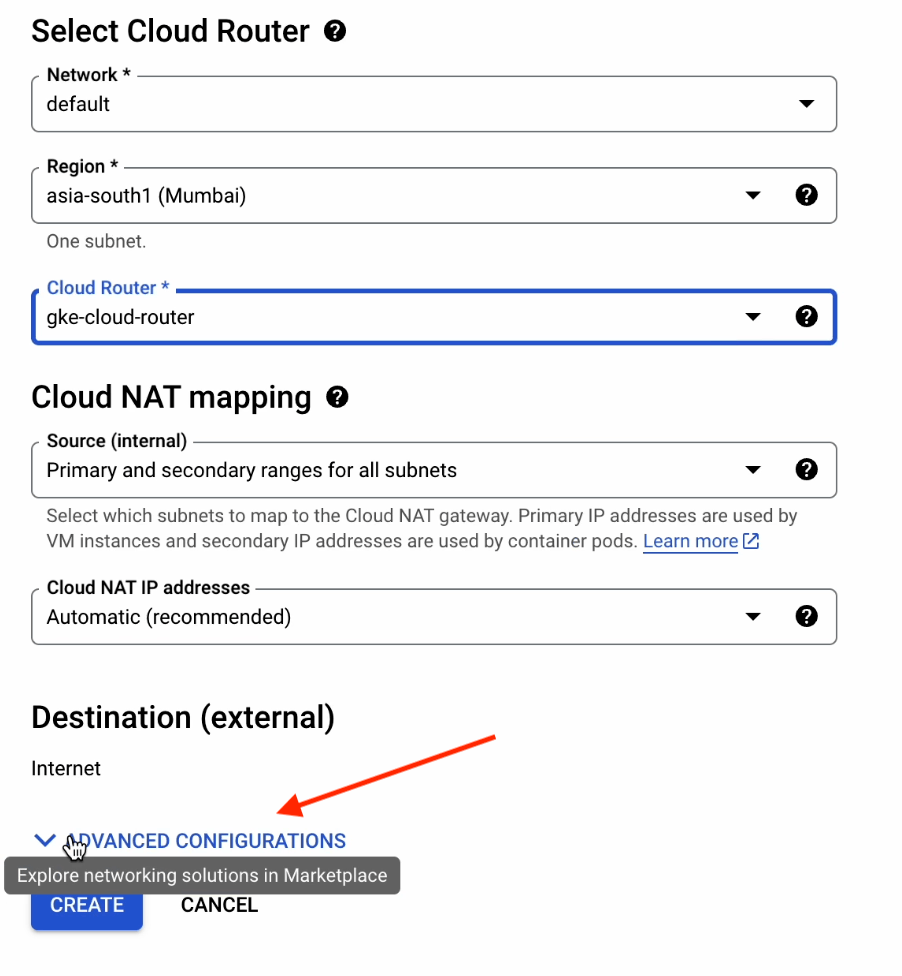

Now go ahead and click on Advanced Configurations.

gke19

Tick the Enable Dynamic Port Allocation box: cloud.google.com/nat/docs/ports-and-addresses#dynamic-port.

gke20

Leave everything set to the defaults, and then click Create.

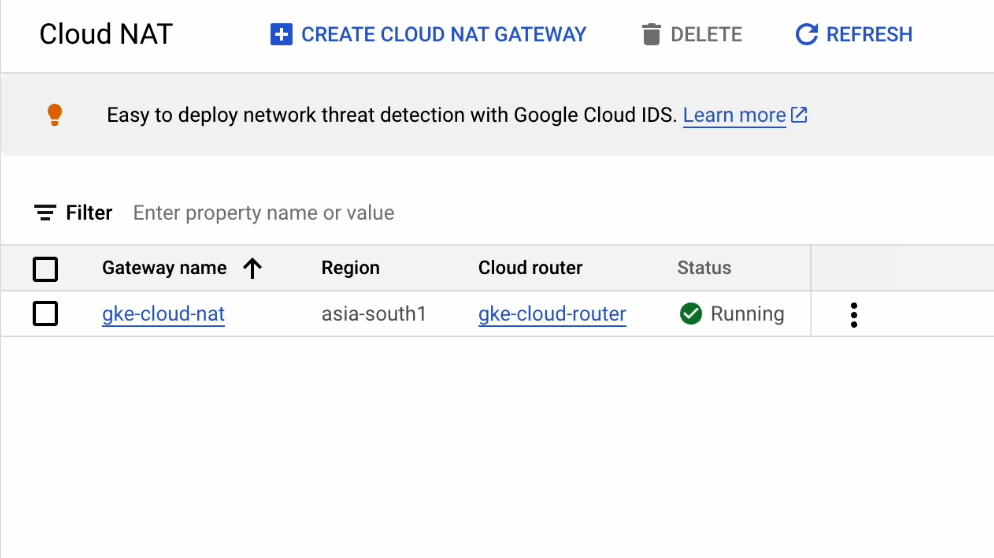

There we go. Our Cloud NAT has been successfully created!

gke21

Private service connection

We need to enable this feature to work with CloudSQL, which we’ll be setting up shortly on a private network.

To learn more about it, visit: cloud.google.com/sql/docs/mysql/configure-private-services-access.

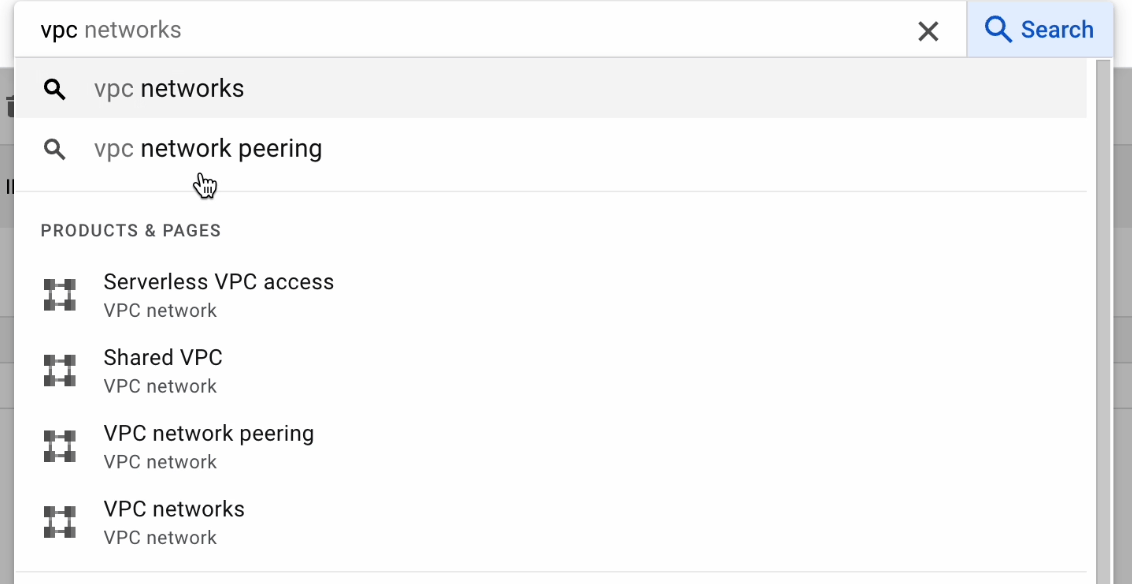

Let’s begin by searching for “vpc” and clicking on “VPC networks”

gke22

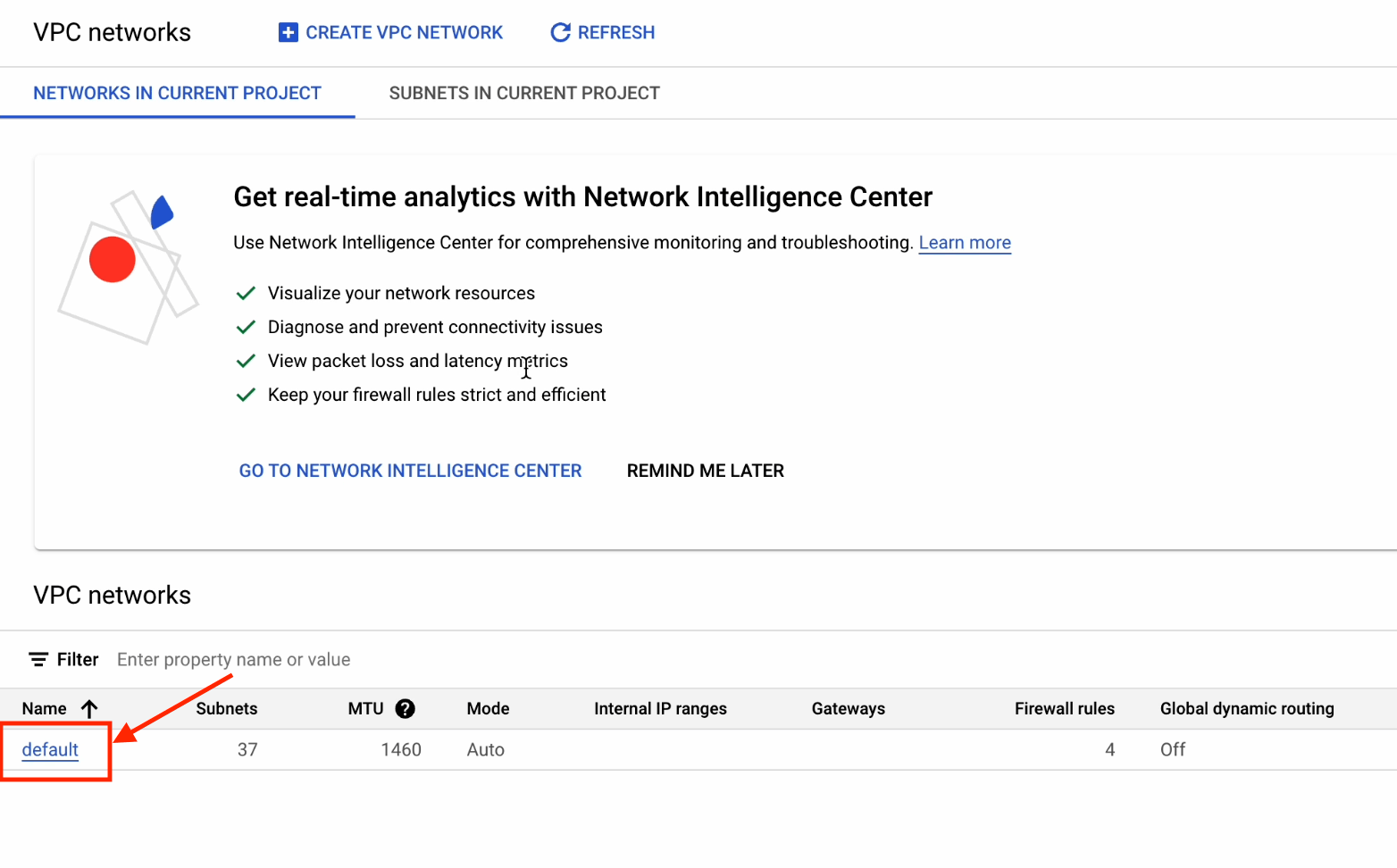

Click on default.

gke23

gke24

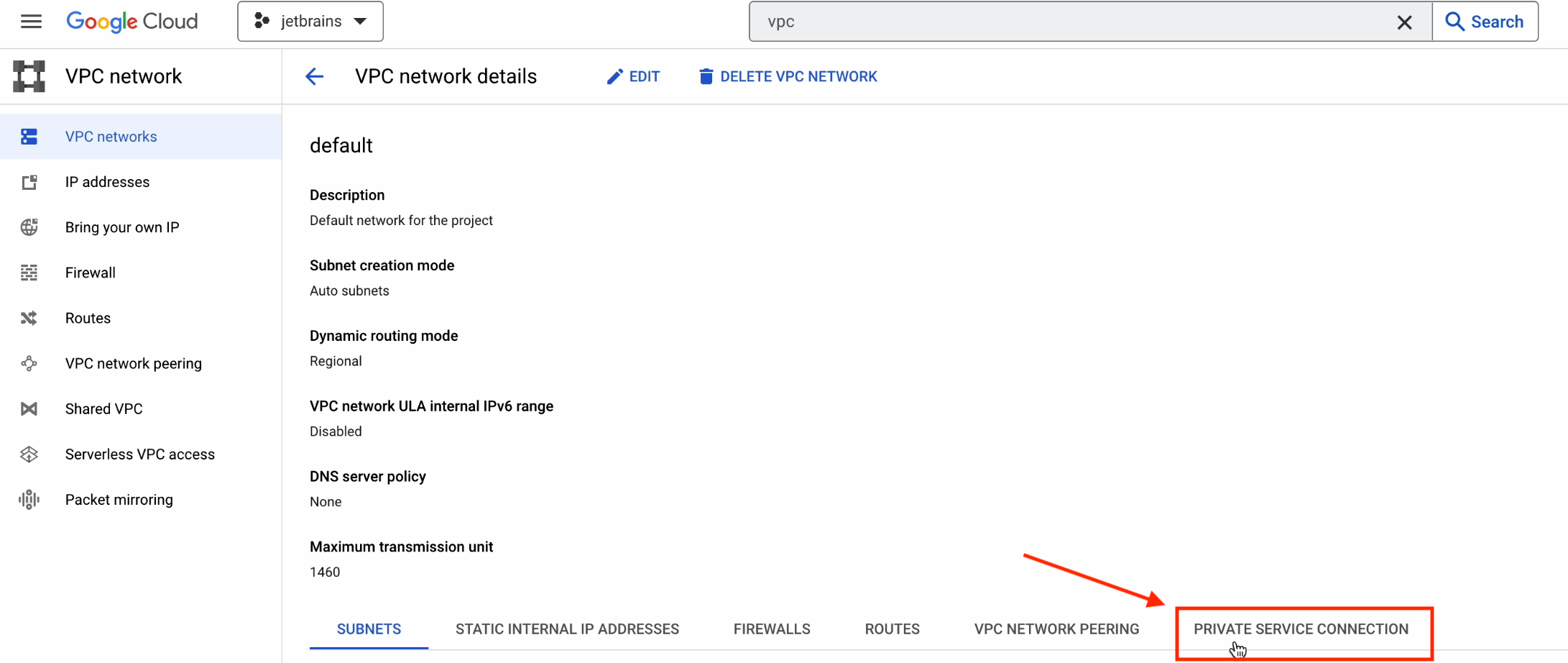

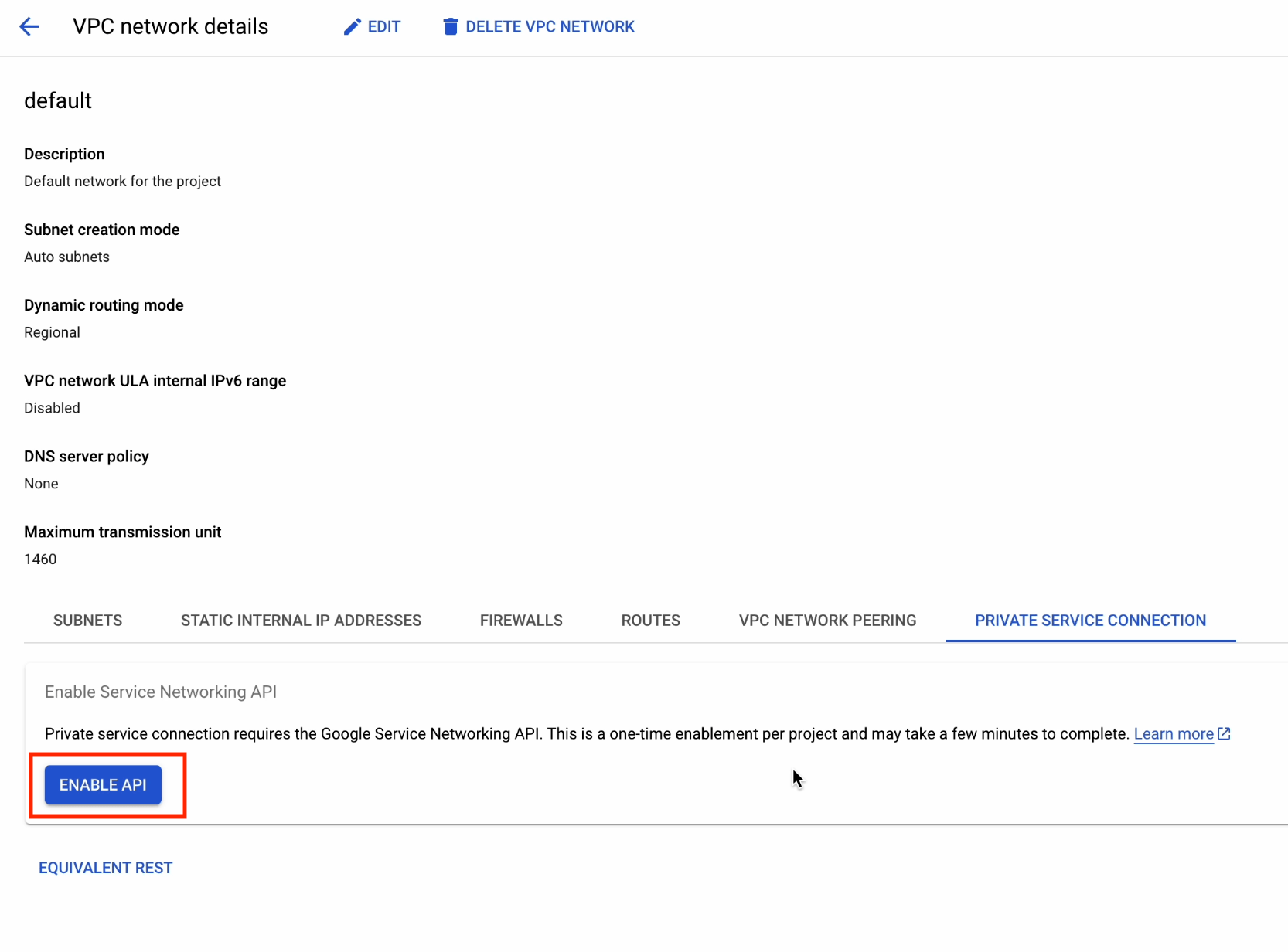

Click on Private Service Connection | Enable API to activate the Service Networking API.

gke25

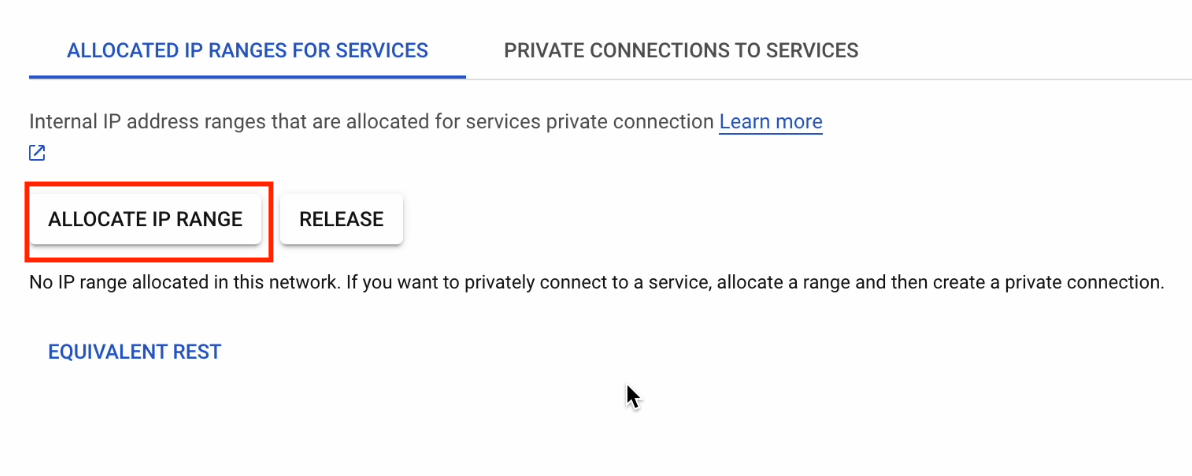

Once the API is enabled, click on Allocate IP Range.

gke26

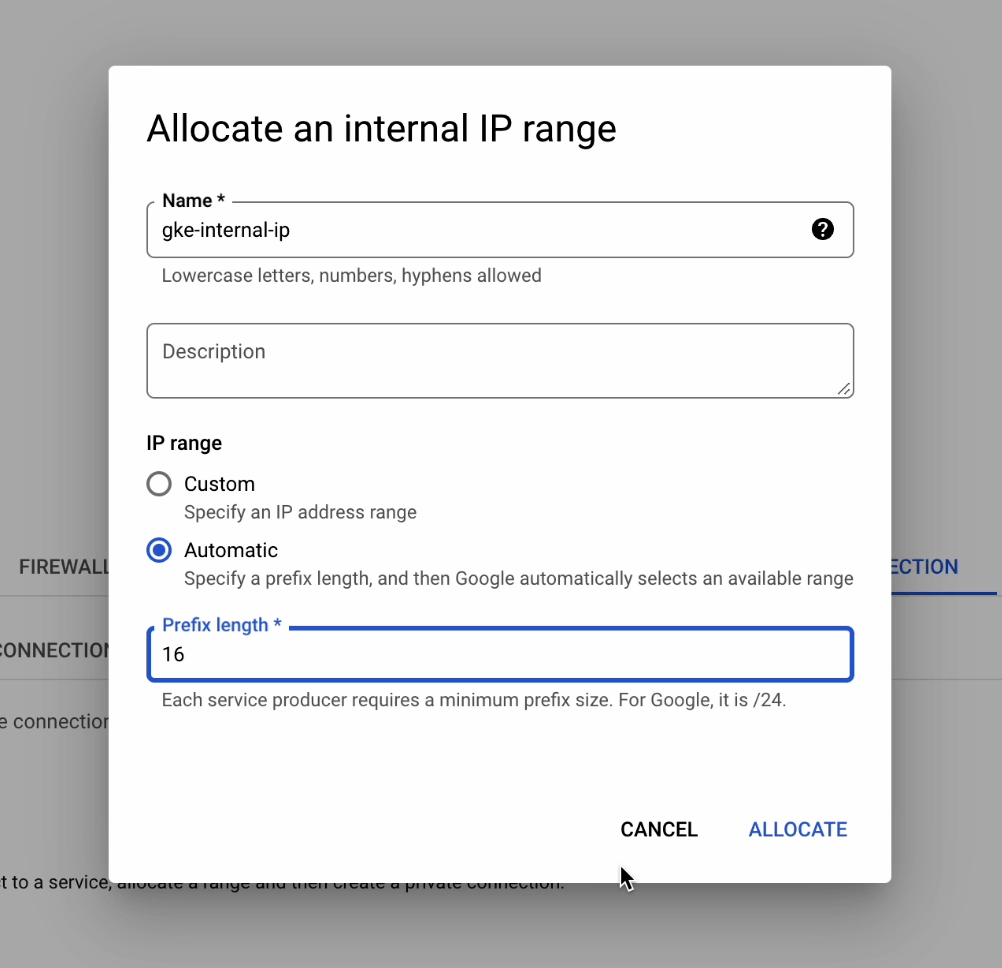

The IP range should be on Automatic, with Prefix length set to 16.

gke27

The IP range has now been successfully configured.

gke28

Next let’s enable Private Connection to Services.

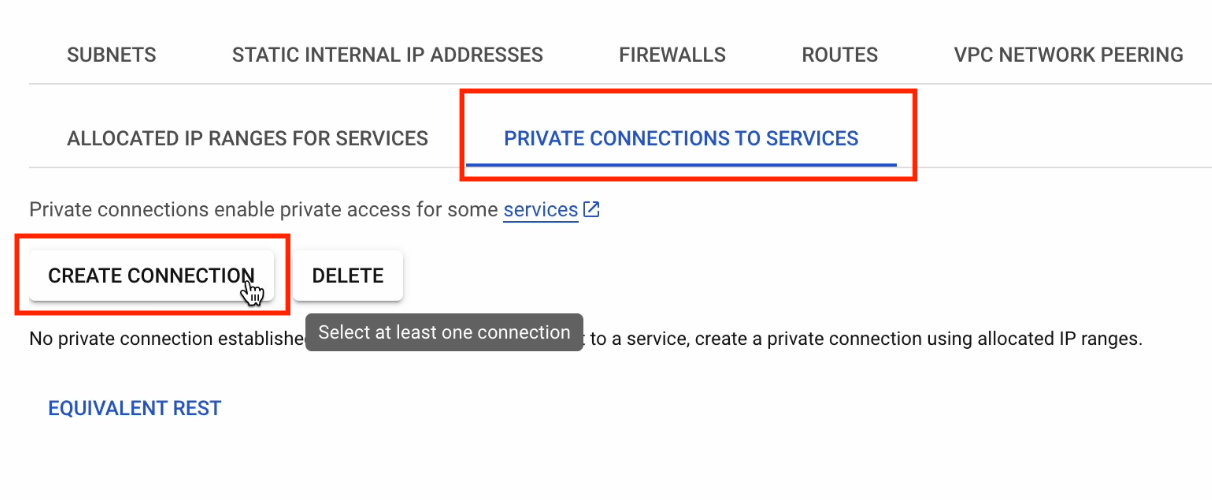

Click on Create Connection.

gke29

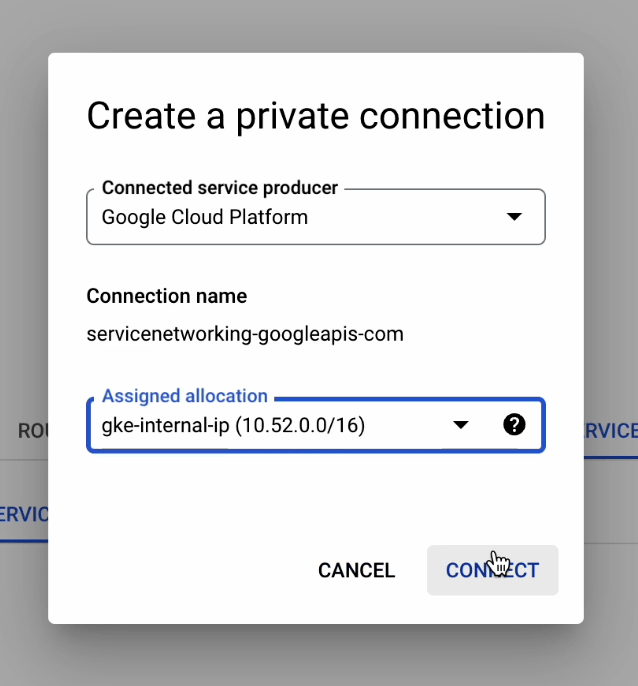

Select gke-internal-ip, which we created earlier, and click on Connect.

gke30

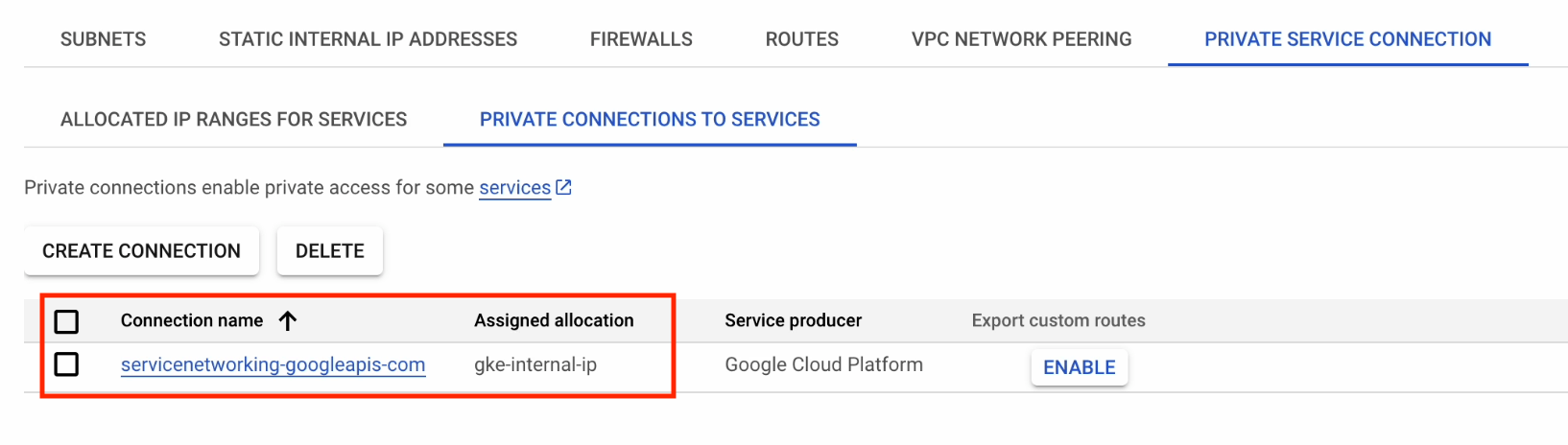

Our private service connection has now been successfully created.

gke31

Cloud SQL

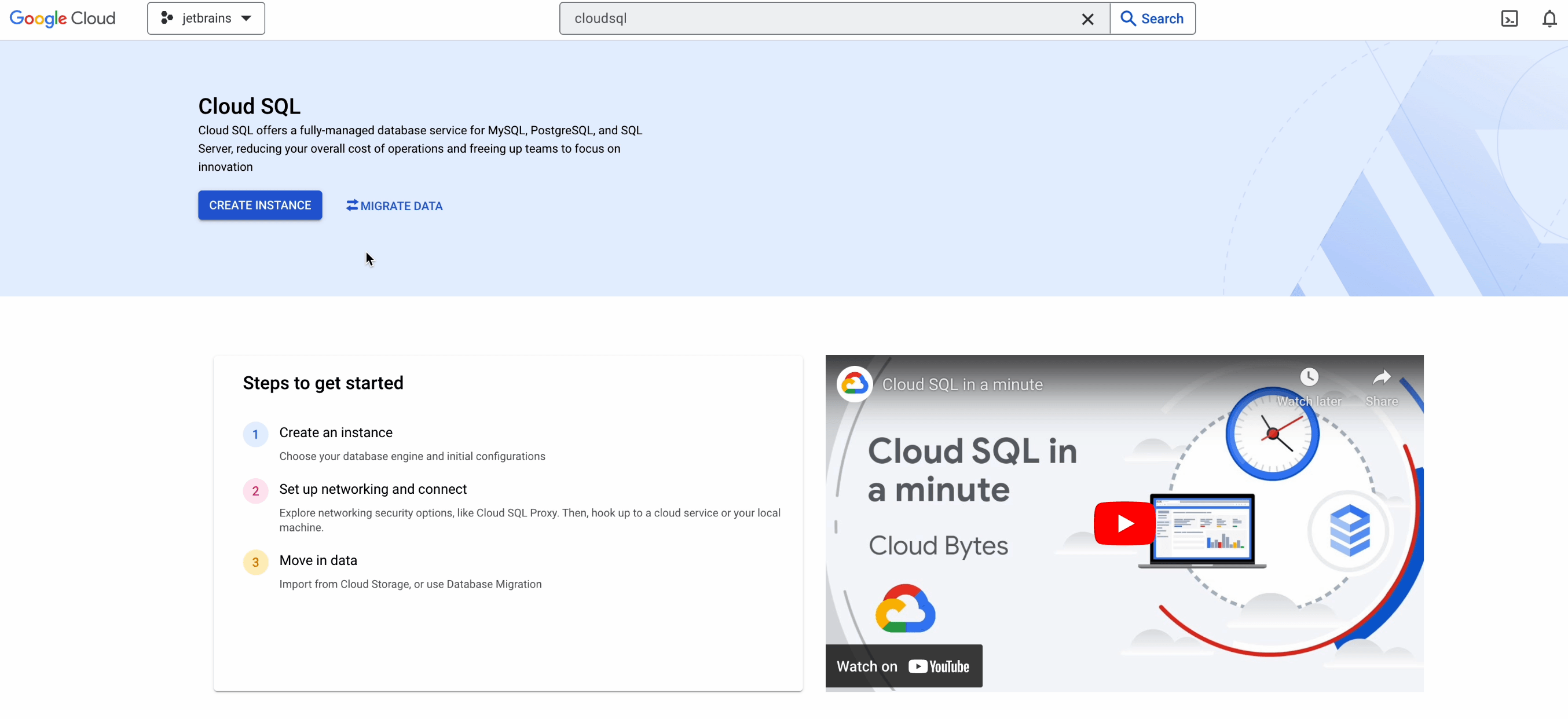

Now we’ll create our cloud database.

gke32

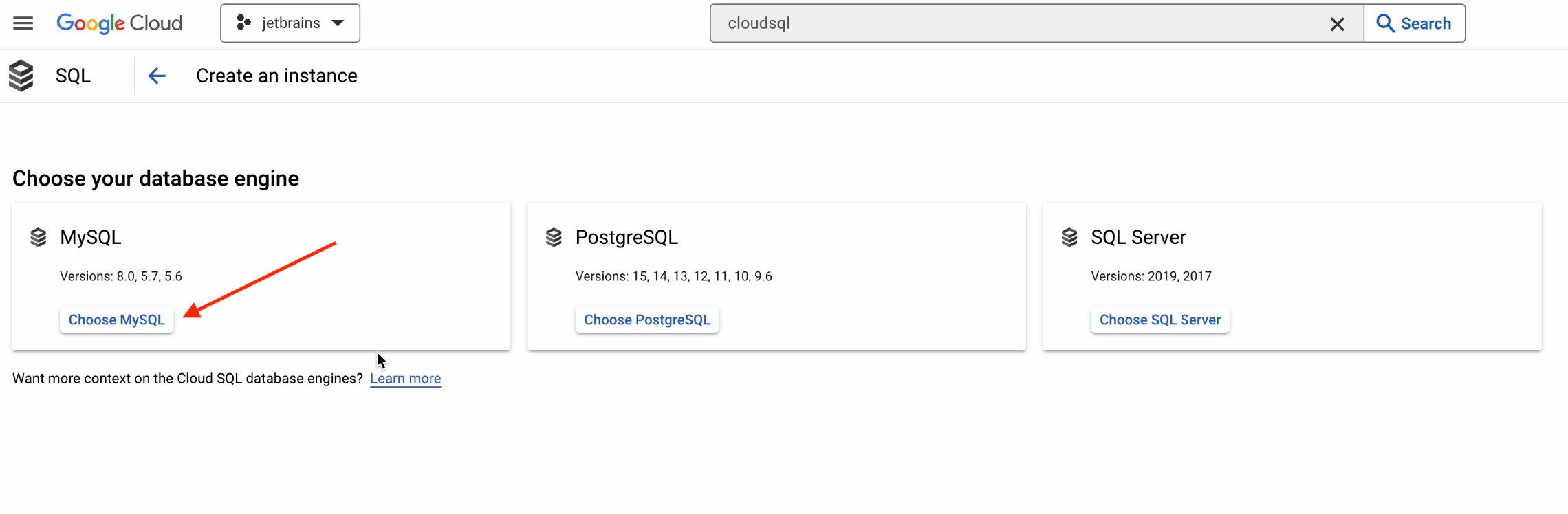

Click on Create Instance and select MySQL.

gke33

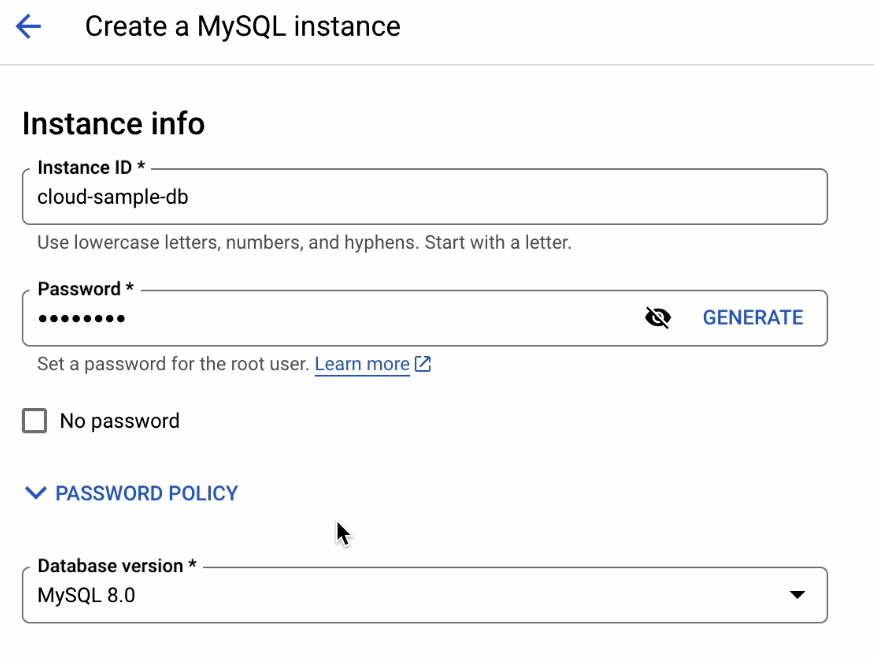

First, we’ll need to add some necessary information:

  • Provide the instance ID. For the purposes of this tutorial, we’ve chosen cloud-sample-db.
  • Provide a strong password.
  • Set MySQL 8.0 as the version.

gke34

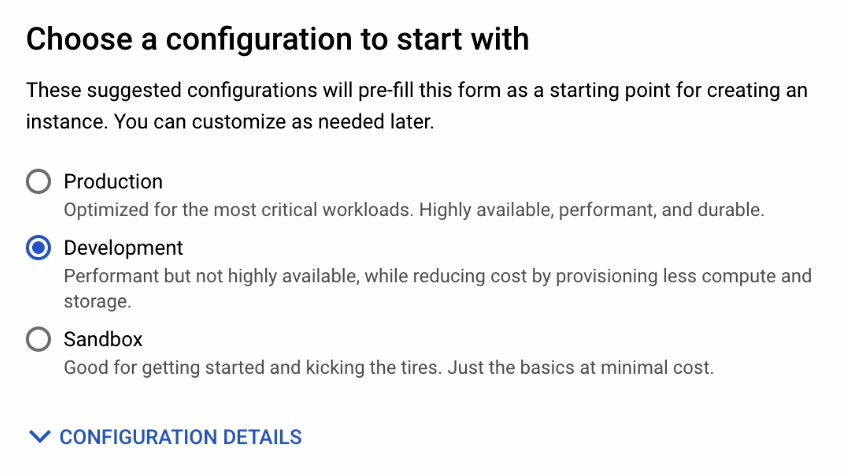

We’re going to choose the Development environment as our configuration.

Note: Because this is a tutorial, we can easily start by experimenting with the database. But this is not suitable for a production workload.

gke35

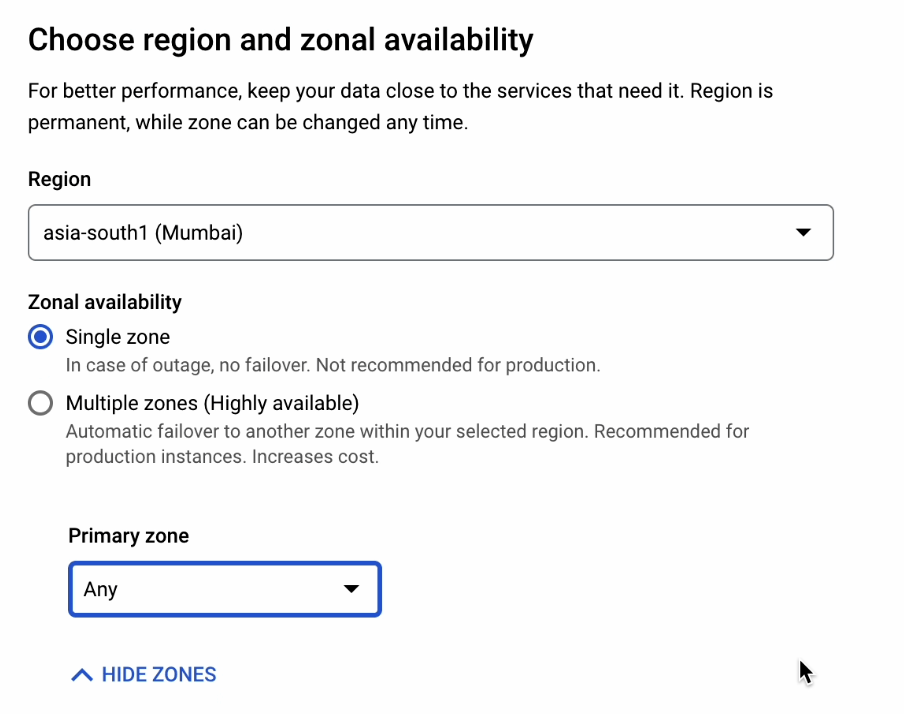

Set Zonal availability to Single zone.

gke36

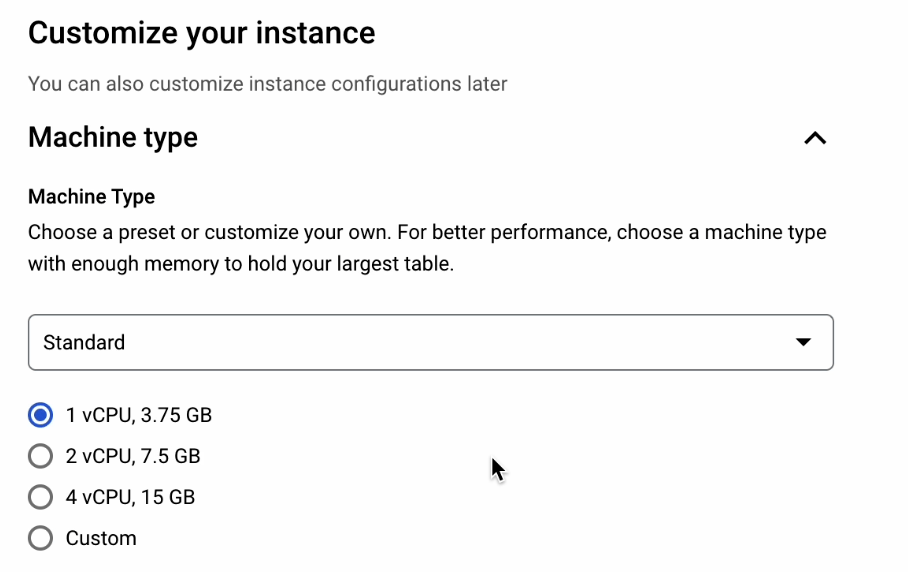

We’ll then select the Standard machine type with 1 vCPU and 3.75 GB of RAM.

gke37

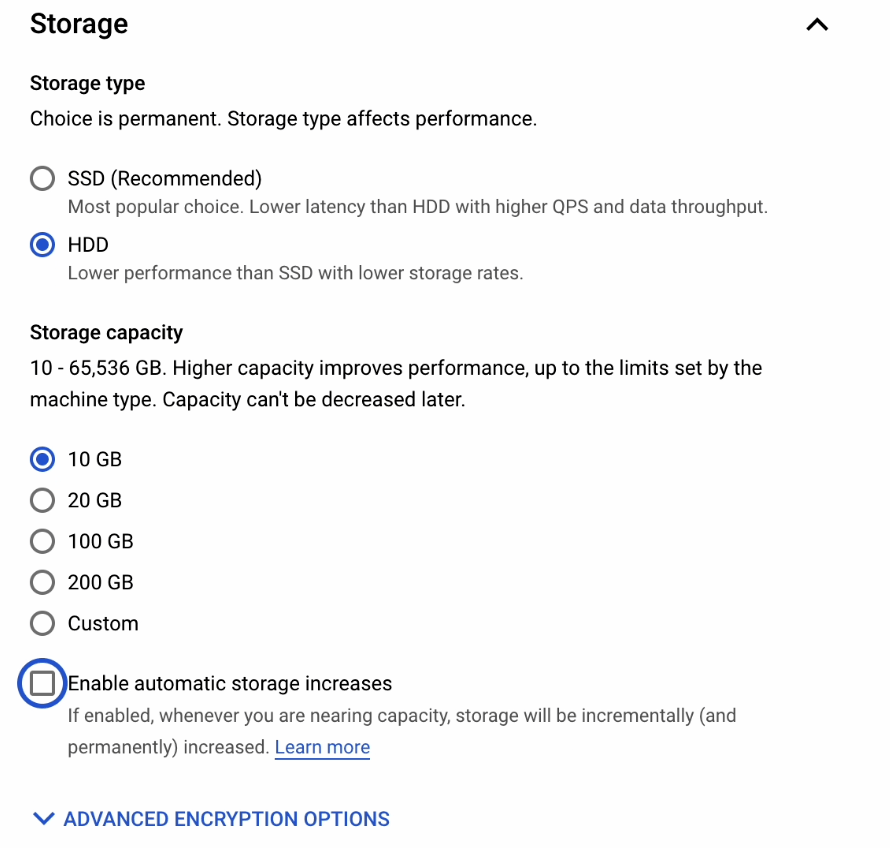

As for Storage type, we’ll select HDD. It’s a lower performance option compared to SSD, but it’s more than sufficient for testing out this application.

Storage capacity should be set to 10 GB.

Uncheck the Enable automatic storage increases box.

gke38

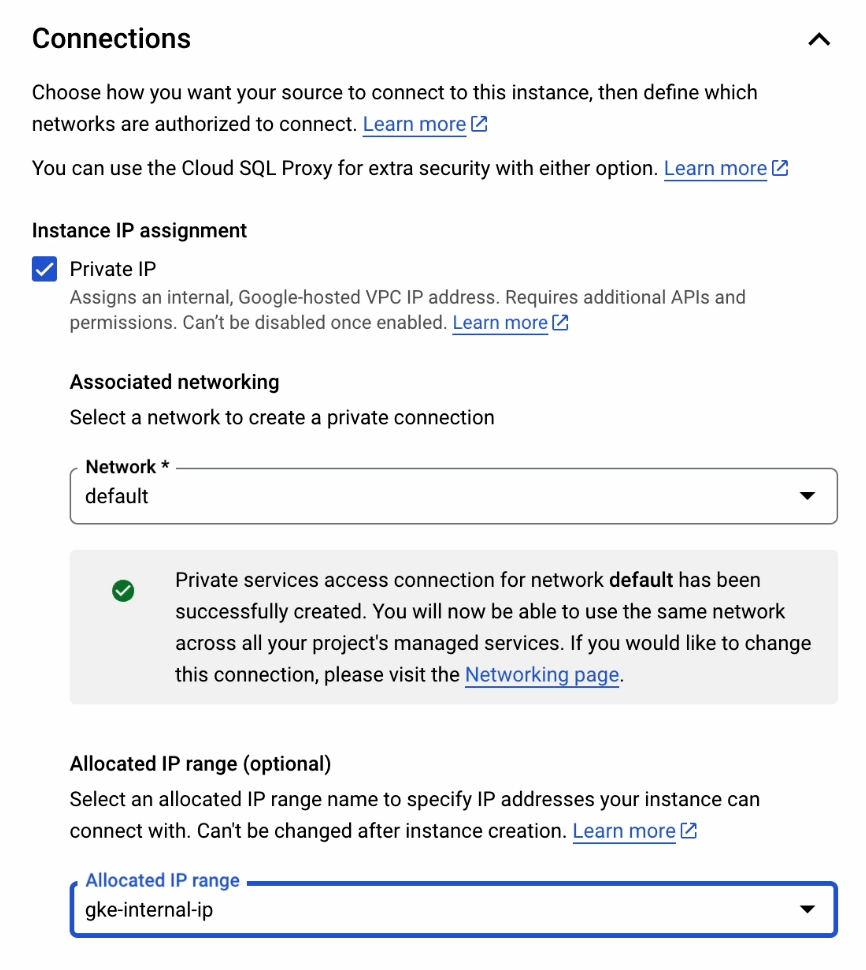

Next, go to Connections and make the following changes:.

  • Tick the Private IP box under Instance IP assignment.
  • Set the network to default.
  • Set the allocated IP range to gke-internal-ip.

You may remember from earlier how we created gke-internal-ip in the section entitled Private Service Connections.

gke39

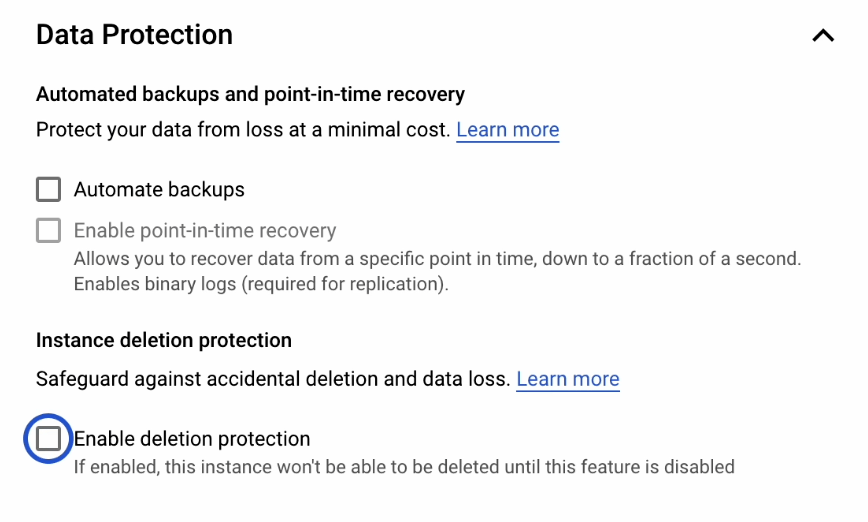

Under Data Protection, uncheck the Enable deletion protection and Automatic Backups boxes. These are not required for this tutorial. However, we strongly recommend using them when working in a production environment. They will be of immense help in the event that disaster recovery is necessary.

gke40

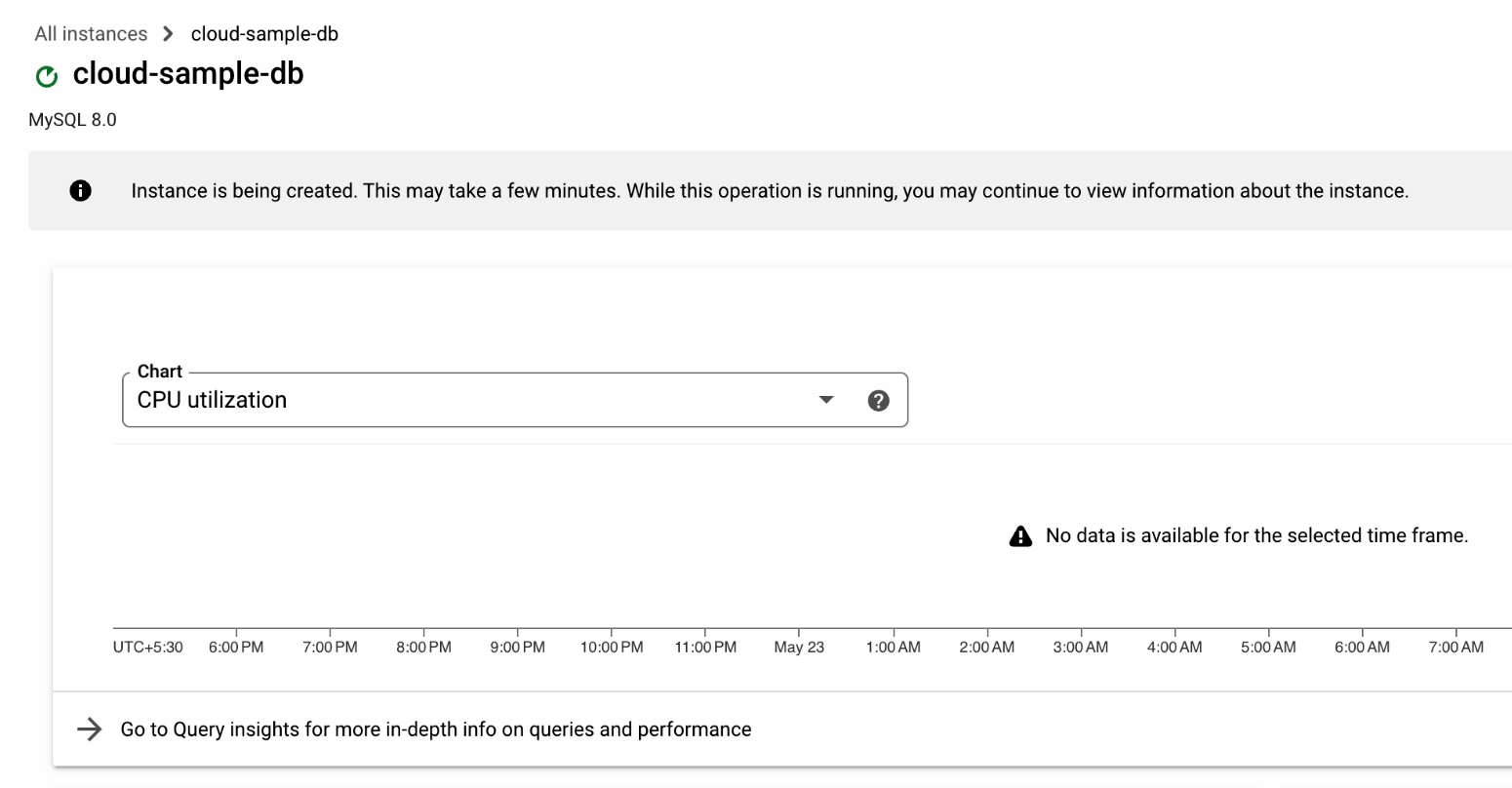

Everything is now configured properly, so we can go ahead and click Create Instance.

gke41

It will take a couple of minutes to initialize the database.

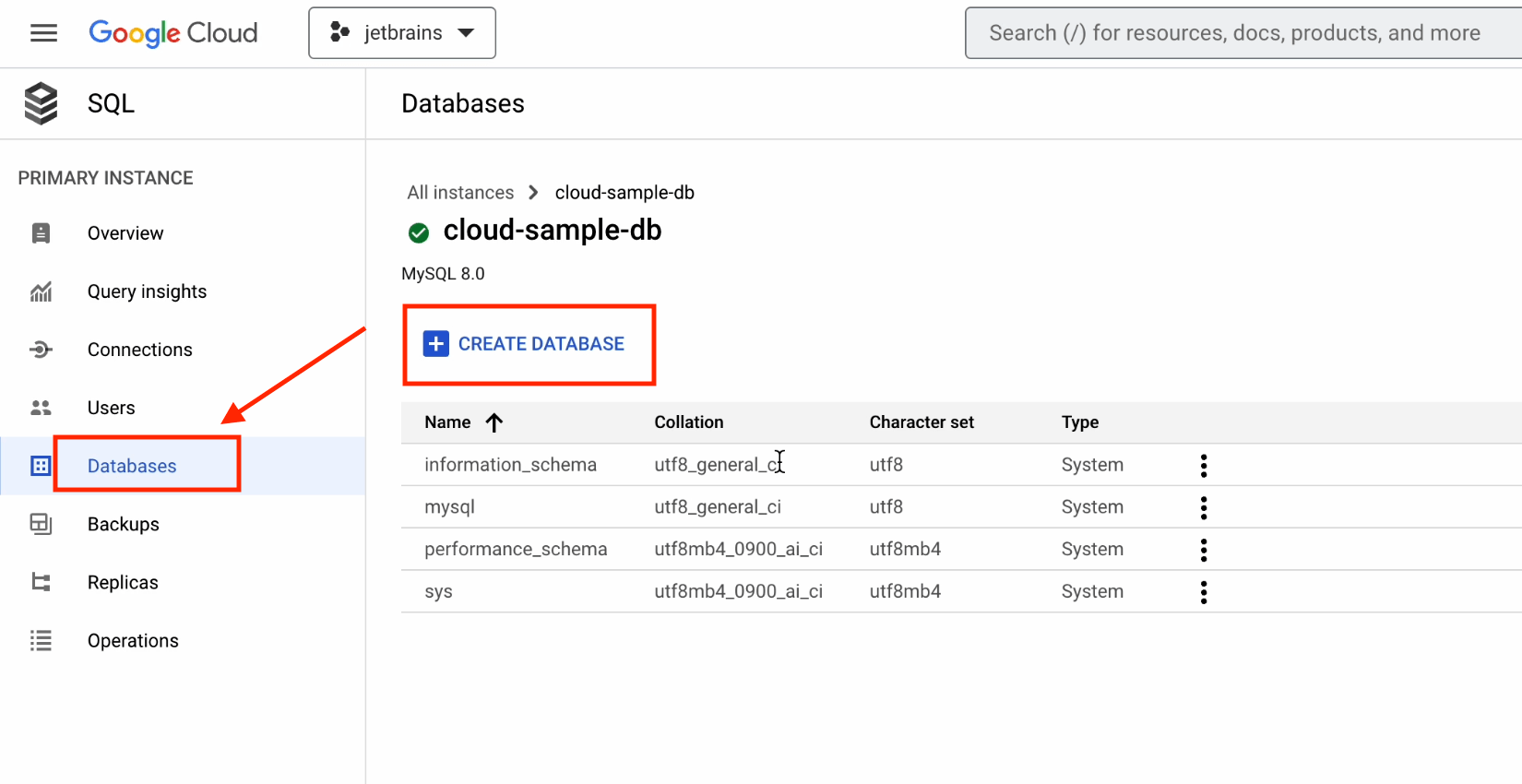

Once the database has been successfully initialized and is up and running, click on the Databases section and create a new database.

gke42

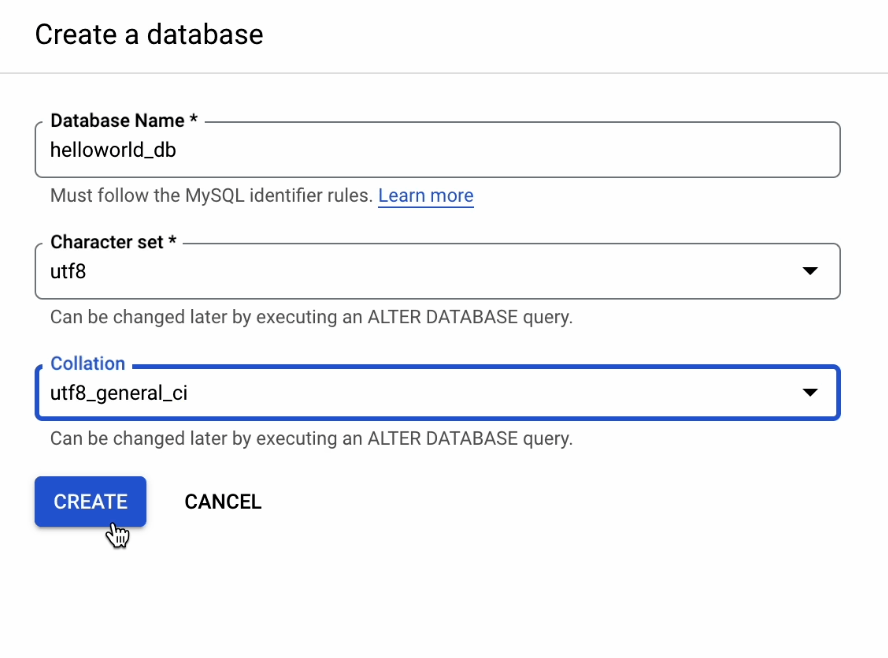

Provide the necessary information as shown below:

  • Database Namehelloworld_db
  • Character setutf8
  • Collationutf8_general_ci

gke43

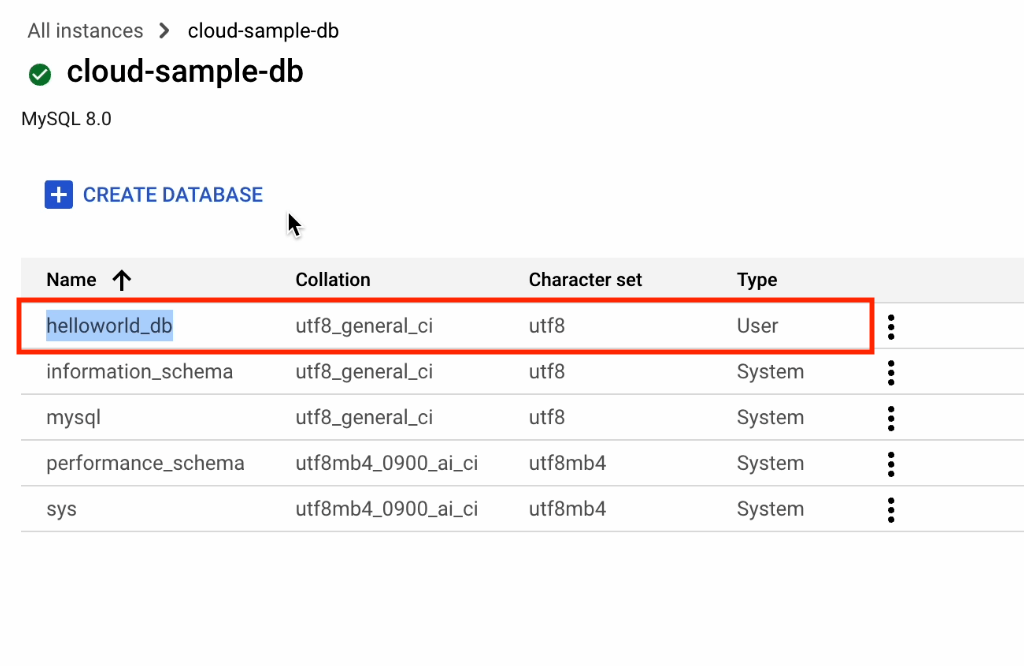

The database has been successfully created!

gke44

Artifact Registry

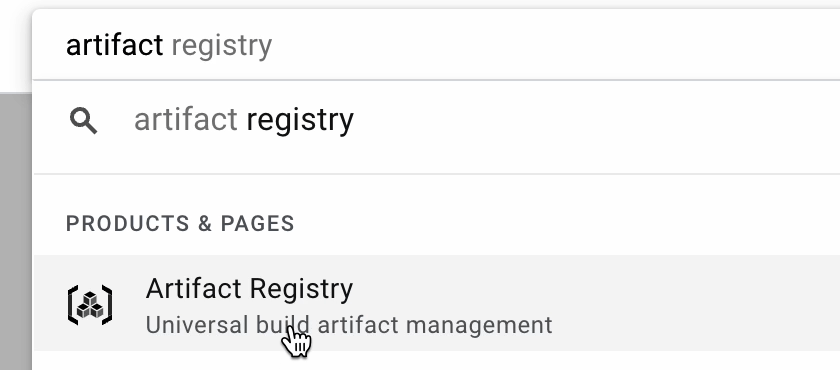

Now, we are going to store our Docker images in Artifact Registry. It’s the next generation of container registry and allows you to store, manage, and secure your build artifacts.

gke45

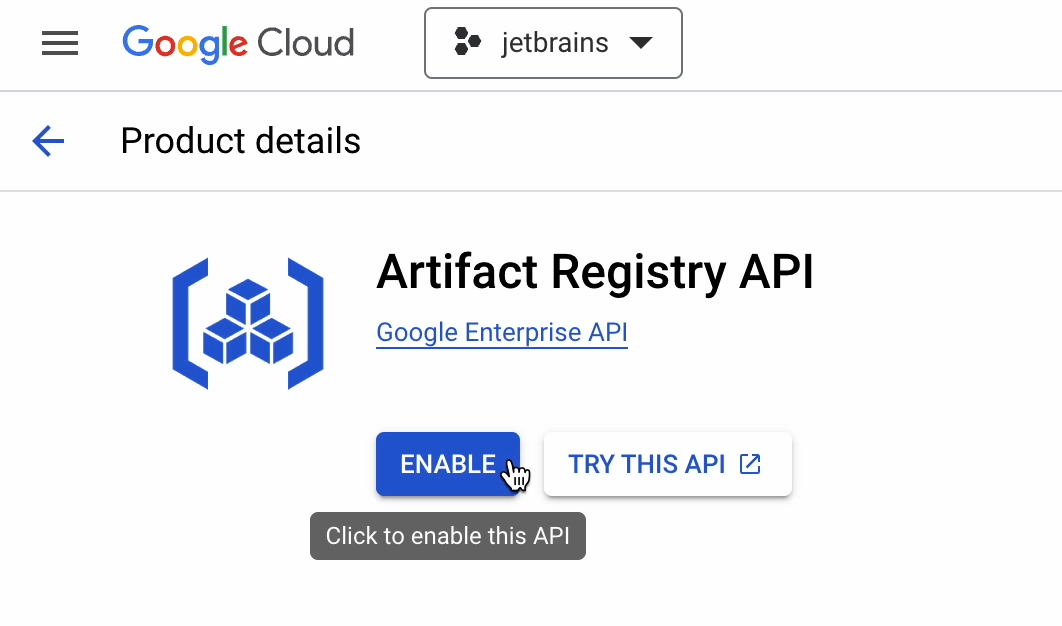

If you are using this API for the first time, then you’ll need to enable it. You’ll only have to do this once.

gke46

Click on Create Repository.

gke47

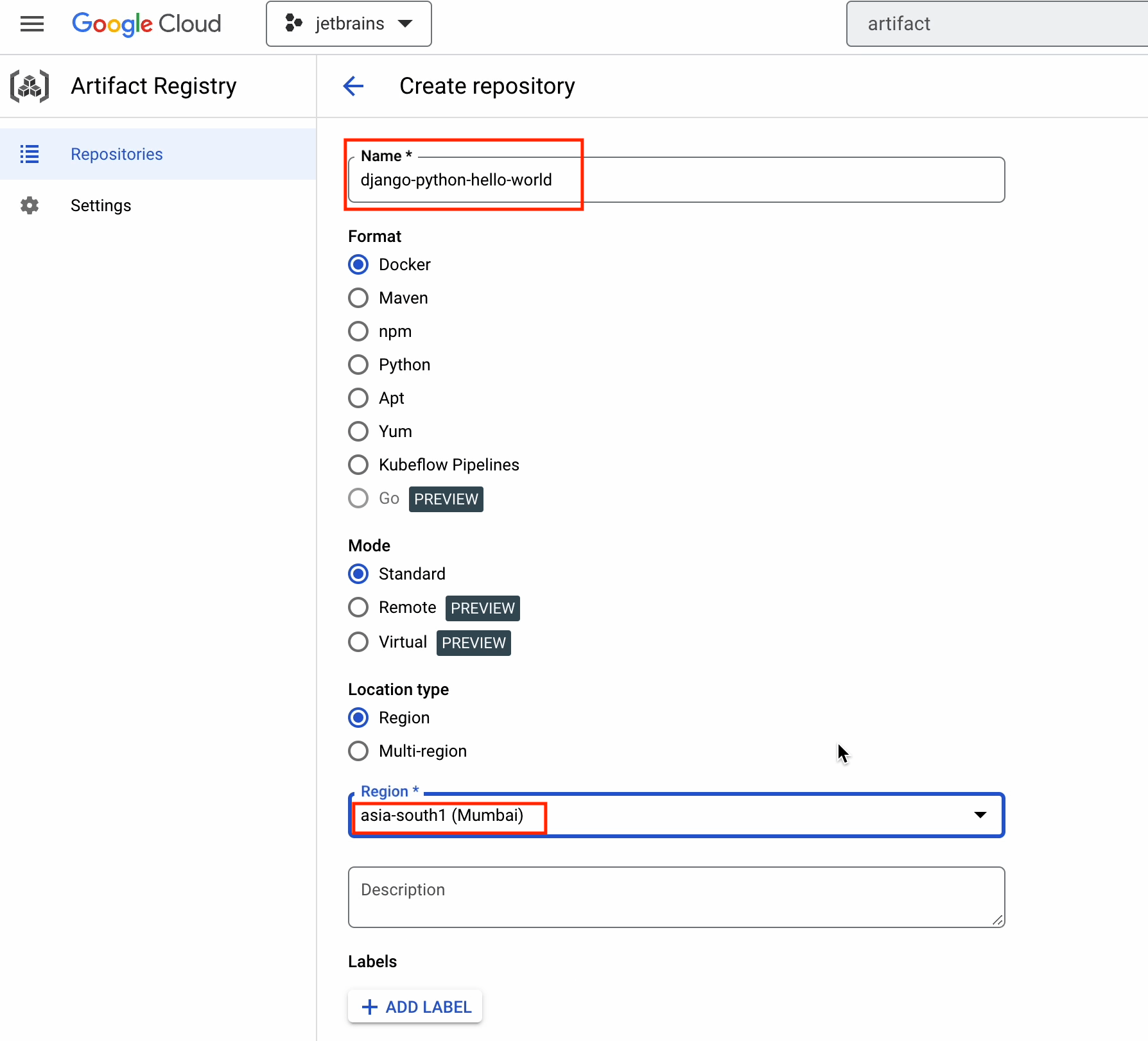

Provide the necessary information as follows:

  • Namedjango-python-hello-world
  • FormatDocker
  • ModeStandard
  • Location typeRegion
  • Regionasia-south1

Make sure to choose the region that’s closest to your location.

You may have noticed that the format section offers multiple support options, including Docker, Python, Maven, and so on. This is why it’s considered a universal build artifact tool.

gke48

Now you can go ahead and click on Create.

gke49

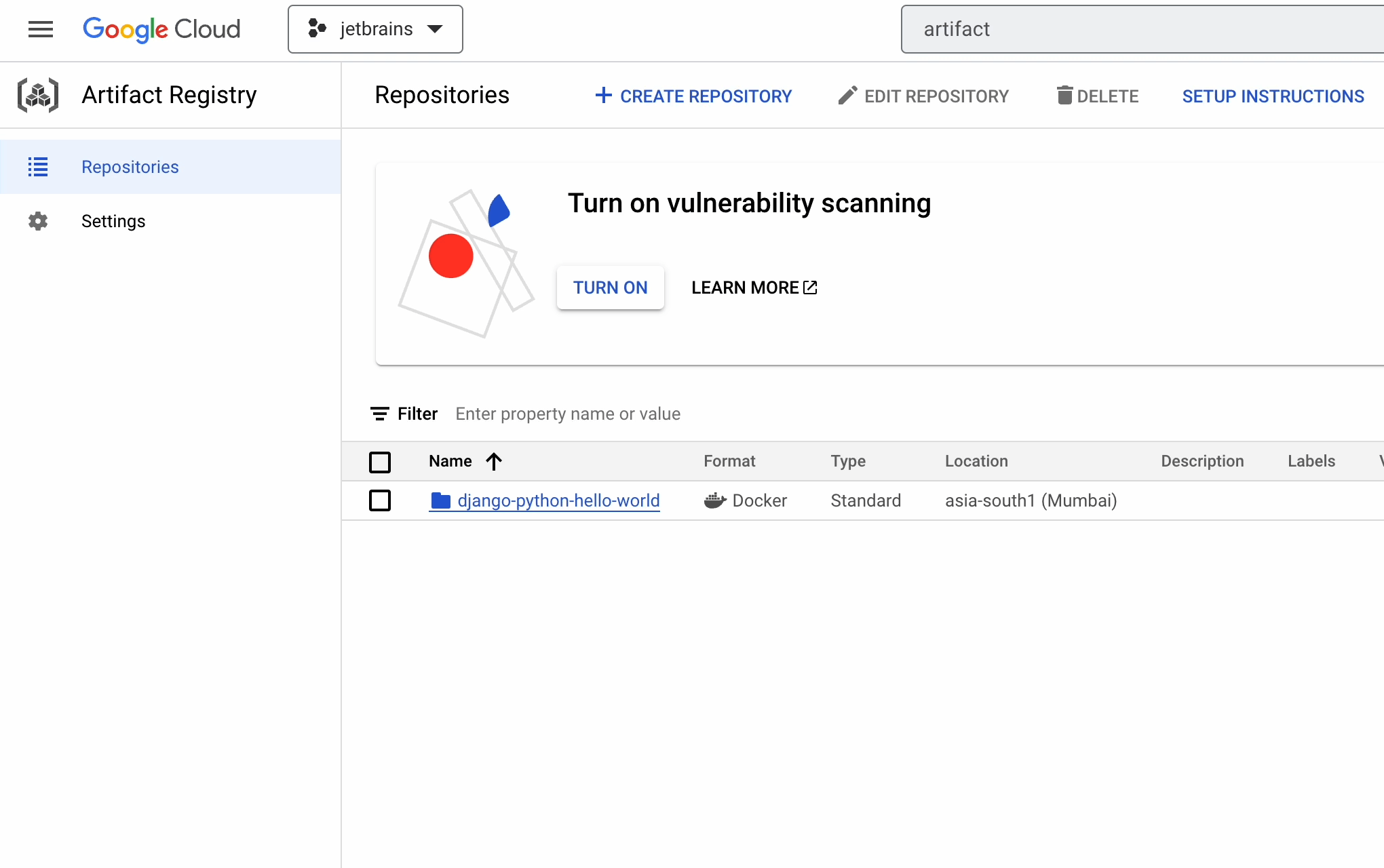

The registry has been successfully created!
