Generating Stubs for Reverse Proxy

Relaying gRPC Requests - Using a Reverse Proxy for Interoperability.

One downside of gRPC APIs is that you need special gRPC clients to communicate with gRPC servers. In other words, if you have an existing REST client and want to switch to gRPC, you must rewrite the client to use gRPC. This may not always be feasible. There are situations where you want to preserve backward compatibility with REST clients while you move the architecture to gRPC, or you may want to have a simultaneous REST API to allow legacy REST clients to keep using your API.

It's possible to generate a reverse proxy for your gRPC API to act as a gateway between the gRPC server and a REST client. The REST client can make requests to the reverse proxy, which will relay the messages to the gRPC server after converting them into appropriate gRPC requests. The gRPC response from the server will be converted back to REST responses and sent to the client, thus mimicking a REST API.

To generate the code for the reverse proxy, you need to install the grpc-gateway plugin for protoc:

go install github.com/grpc-ecosystem/grpc-gateway/v2/protoc-gen-grpc-gateway@latest

The code generator needs to know the URLs to which each RPC method will be mapped. The README file of the plugin outlines three methods of annotating your Protobuf definitions. The third option (external configuration) is used in this article. You'll leave the Protobuf definitions as is and create a YAML file named tasks_http_annotations.yaml in the root of the project:

type: google.api.Service
config_version: 3

http:
  rules:
    - selector: tasks.TaskService.CreateTask
      post: "/api/v1/tasks"
      body: "*"
    - selector: tasks.TaskService.GetTask
      get: "/api/v1/tasks/{task_id}"
    - selector: tasks.TaskService.ListTasks
      get: "/api/v1/users/{user_id}/tasks"
    - selector: tasks.TaskService.RecordTasks
      post: "/api/v1/tasks/record"
      body: "*"
    - selector: tasks.TaskService.TaskChat
      post: "/api/v1/tasks/chat"
      body: "*"

In this file, you map each of the five RPC methods to URLs under the /api/v1/ namespace. For each API, you need to provide the HTTP verb (get, post, put, etc.) as well as the parameters and body; the selector key specifies the RPC method the URL will be mapped to.

Modify the previous protoc command to include options for generating the reverse-proxy stubs:

protoc --go_out=./src/go/ \
--go_opt=paths=source_relative \
--go-grpc_out=./src/go/ \
--go-grpc_opt=paths=source_relative \
--grpc-gateway_out=./src/go \
--grpc-gateway_opt=logtostderr=true,paths=source_relative,grpc_api_configuration=tasks_http_annotations.yaml \
tasks.proto

This will create a new tasks.pb.gw.go file in src/go. Open the file and download the dependencies, as shown before:

tasks.pb.gw.go file

Generating an OpenAPI Definition

The grpc-gateway plugin can also generate an OpenAPI v2 (Swagger) file for your REST API.

First, create a directory named openapi inside src where the Swagger file will be stored. Then, install the protoc-gen-openapiv2 binary by running the following command:

go install github.com/grpc-ecosystem/grpc-gateway/v2/protoc-gen-openapiv2@latest

The tasks_http_annotations.yaml file is enough to generate an OpenAPI definition file. However, if you want to customize the properties of the OpenAPI file itself, such as setting a title, schemes, a URL, and so on, you need to create a separate YAML file. Create tasks_openapi_options.yaml with the following code:

openapiOptions:
  file:
    - file: "tasks.proto"
      option:
        info:
          title: "Tasks API"
        schemes:
          - HTTP
        host: "localhost:8081"

Here, you set the title of the API to "Tasks API," the scheme to HTTP, and the host to localhost:8081 (the URL where the reverse proxy will run).

Finally, amend the protoc command to include options for the OpenAPI generator:

protoc --go_out=./src/go \
--go_opt=paths=source_relative --go-grpc_out=./src/go/ \
--go-grpc_opt=paths=source_relative \
--grpc-gateway_out=./src/go \
--grpc-gateway_opt=logtostderr=true,paths=source_relative,grpc_api_configuration=tasks_http_annotations.yaml \
--openapiv2_out=./src/openapi \
--openapiv2_opt=logtostderr=true,grpc_api_configuration=tasks_http_annotations.yaml,openapi_configuration=tasks_openapi_options.yaml \
tasks.proto

This will create a tasks.swagger.json file in the src/openapi directory with the following code:

{
	"swagger": "2.0",
	"info": {
		"title": "Tasks API",
		"version": "version not set"
	},
	"tags": [
		{
			"name": "TaskService"
		}
	],
	"host": "localhost:8081",
	"schemes": ["http"],
	"consumes": ["application/json"],
	"produces": ["application/json"],
	"paths": {
		"/api/v1/tasks": {
			"post": {
				"operationId": "TaskService_CreateTask",
				"responses": {
					"200": {
						"description": "A successful response.",
						"schema": {
							"$ref": "#/definitions/tasksTask"
						}
					},
					"default": {
						"description": "An unexpected error response.",
						"schema": {
							"$ref": "#/definitions/rpcStatus"
						}
					}
				},
				"parameters": [
					{
						"name": "body",
						"in": "body",
						"required": true,
						"schema": {
							"$ref": "#/definitions/tasksCreateTaskRequest"
						}
					}
				],
				"tags": ["TaskService"]
			}
		},
		"/api/v1/tasks/chat": {
			"post": {
				"operationId": "TaskService_TaskChat",
				"responses": {
					"200": {
						"description": "A successful response.(streaming responses)",
						"schema": {
							"type": "object",
							"properties": {
								"result": {
									"$ref": "#/definitions/tasksTaskComment"
								},
								"error": {
									"$ref": "#/definitions/rpcStatus"
								}
							},
							"title": "Stream result of tasksTaskComment"
						}
					},
					"default": {
						"description": "An unexpected error response.",
						"schema": {
							"$ref": "#/definitions/rpcStatus"
						}
					}
				},
				"parameters": [
					{
						"name": "body",
						"description": " (streaming inputs)",
						"in": "body",
						"required": true,
						"schema": {
							"$ref": "#/definitions/tasksTaskComment"
						}
					}
				],
				"tags": ["TaskService"]
			}
		},
		"/api/v1/tasks/record": {
			"post": {
				"operationId": "TaskService_RecordTasks",
				"responses": {
					"200": {
						"description": "A successful response.",
						"schema": {
							"$ref": "#/definitions/tasksTaskSummary"
						}
					},
					"default": {
						"description": "An unexpected error response.",
						"schema": {
							"$ref": "#/definitions/rpcStatus"
						}
					}
				},
				"parameters": [
					{
						"name": "body",
						"description": " (streaming inputs)",
						"in": "body",
						"required": true,
						"schema": {
							"$ref": "#/definitions/tasksCreateTaskRequest"
						}
					}
				],
				"tags": ["TaskService"]
			}
		},
		"/api/v1/tasks/{taskId}": {
			"get": {
				"operationId": "TaskService_GetTask",
				"responses": {
					"200": {
						"description": "A successful response.",
						"schema": {
							"$ref": "#/definitions/tasksTask"
						}
					},
					"default": {
						"description": "An unexpected error response.",
						"schema": {
							"$ref": "#/definitions/rpcStatus"
						}
					}
				},
				"parameters": [
					{
						"name": "taskId",
						"in": "path",
						"required": true,
						"type": "string"
					}
				],
				"tags": ["TaskService"]
			}
		},
		"/api/v1/users/{userId}/tasks": {
			"get": {
				"operationId": "TaskService_ListTasks",
				"responses": {
					"200": {
						"description": "A successful response.(streaming responses)",
						"schema": {
							"type": "object",
							"properties": {
								"result": {
									"$ref": "#/definitions/tasksTask"
								},
								"error": {
									"$ref": "#/definitions/rpcStatus"
								}
							},
							"title": "Stream result of tasksTask"
						}
					},
					"default": {
						"description": "An unexpected error response.",
						"schema": {
							"$ref": "#/definitions/rpcStatus"
						}
					}
				},
				"parameters": [
					{
						"name": "userId",
						"in": "path",
						"required": true,
						"type": "string"
					},
					{
						"name": "deadline",
						"in": "query",
						"required": false,
						"type": "string",
						"format": "date-time"
					}
				],
				"tags": ["TaskService"]
			}
		}
	},
	"definitions": {
		"protobufAny": {
			"type": "object",
			"properties": {
				"@type": {
					"type": "string"
				}
			},
			"additionalProperties": {}
		},
		"rpcStatus": {
			"type": "object",
			"properties": {
				"code": {
					"type": "integer",
					"format": "int32"
				},
				"message": {
					"type": "string"
				},
				"details": {
					"type": "array",
					"items": {
						"type": "object",
						"$ref": "#/definitions/protobufAny"
					}
				}
			}
		},
		"tasksCreateTaskRequest": {
			"type": "object",
			"properties": {
				"description": {
					"type": "string"
				},
				"userId": {
					"type": "string"
				},
				"deadline": {
					"type": "string",
					"format": "date-time"
				}
			}
		},
		"tasksTask": {
			"type": "object",
			"properties": {
				"id": {
					"type": "string"
				},
				"description": {
					"type": "string"
				},
				"userId": {
					"type": "string"
				},
				"status": {
					"$ref": "#/definitions/tasksTaskStatus"
				},
				"deadline": {
					"type": "string",
					"format": "date-time"
				},
				"createdAt": {
					"type": "string",
					"format": "date-time"
				}
			}
		},
		"tasksTaskComment": {
			"type": "object",
			"properties": {
				"taskId": {
					"type": "string"
				},
				"userId": {
					"type": "string"
				},
				"comment": {
					"type": "string"
				},
				"createdAt": {
					"type": "string",
					"format": "date-time"
				}
			}
		},
		"tasksTaskStatus": {
			"type": "string",
			"enum": [
				"TASK_STATUS_COMPLETED",
				"TASK_STATUS_INCOMPLETE",
				"TASK_STATUS_STARTED"
			],
			"default": "TASK_STATUS_COMPLETED"
		},
		"tasksTaskSummary": {
			"type": "object",
			"properties": {
				"noOfTasksCreated": {
					"type": "string"
				}
			}
		}
	}
}

You may have noticed that the command to generate all these files has gotten large and complicated. It's difficult to memorize and rerun this command manually every time one of the .proto or YAML files changes. Let's take a slight detour and add a configuration in JetBrains so you don't have to remember the command.

Click the Add Configuration button. In the window that pops up, click the + button and select Shell Script:

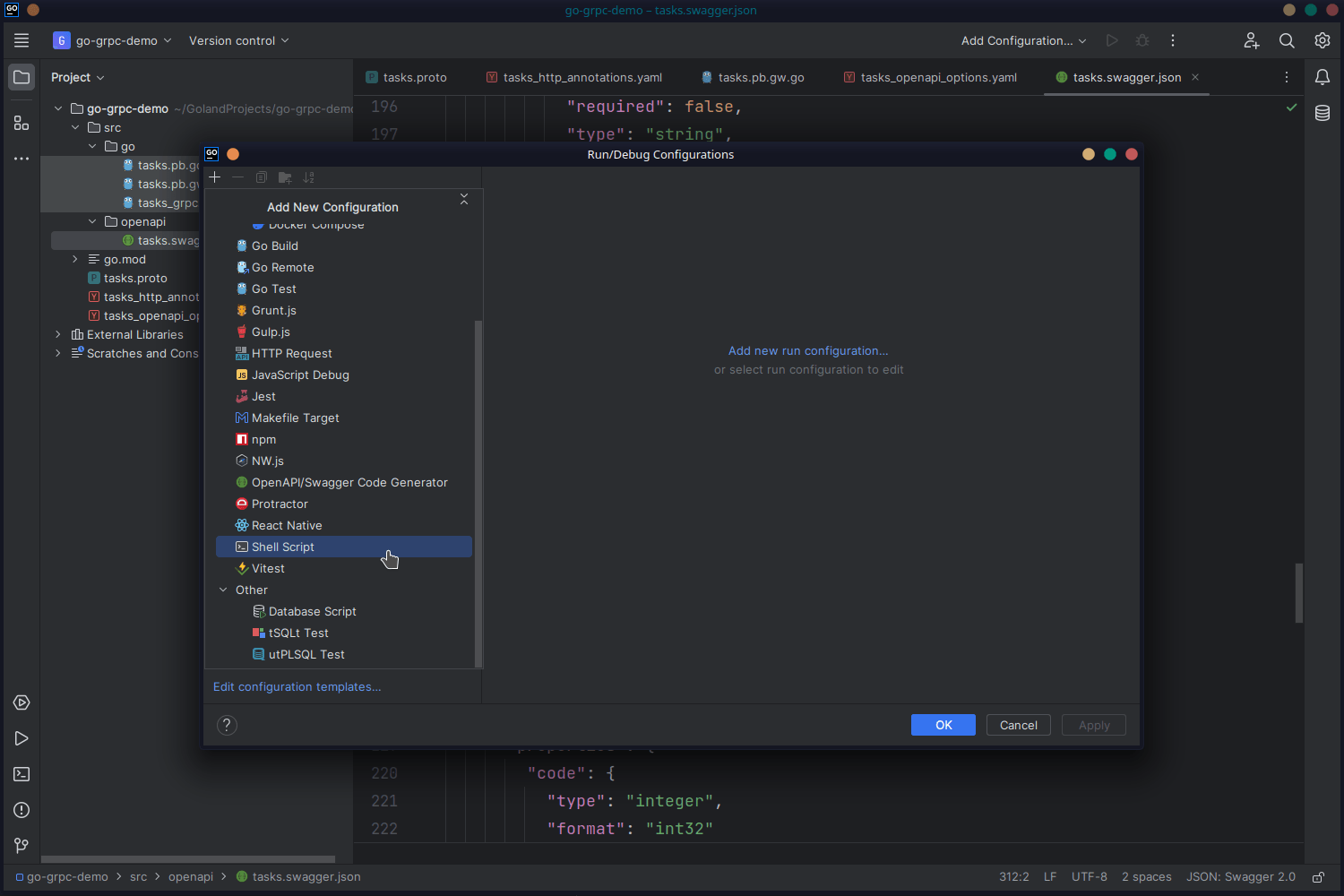

Choosing the Shell Script option for the configuration

In the new window, you need to define the shell script that will run as part of the configuration. Provide Compile protobuf as the name, then choose Script text and paste the following command in the Script text box:

protoc --go_out=./src/go --go_opt=paths=source_relative --go-grpc_out=./src/go/ --go-grpc_opt=paths=source_relative --grpc-gateway_out=./src/go --grpc-gateway_opt=logtostderr=true,paths=source_relative,grpc_api_configuration=tasks_http_annotations.yaml --openapiv2_out=./src/openapi --openapiv2_opt=logtostderr=true,grpc_api_configuration=tasks_http_annotations.yaml,openapi_configuration=tasks_openapi_options.yaml tasks.proto

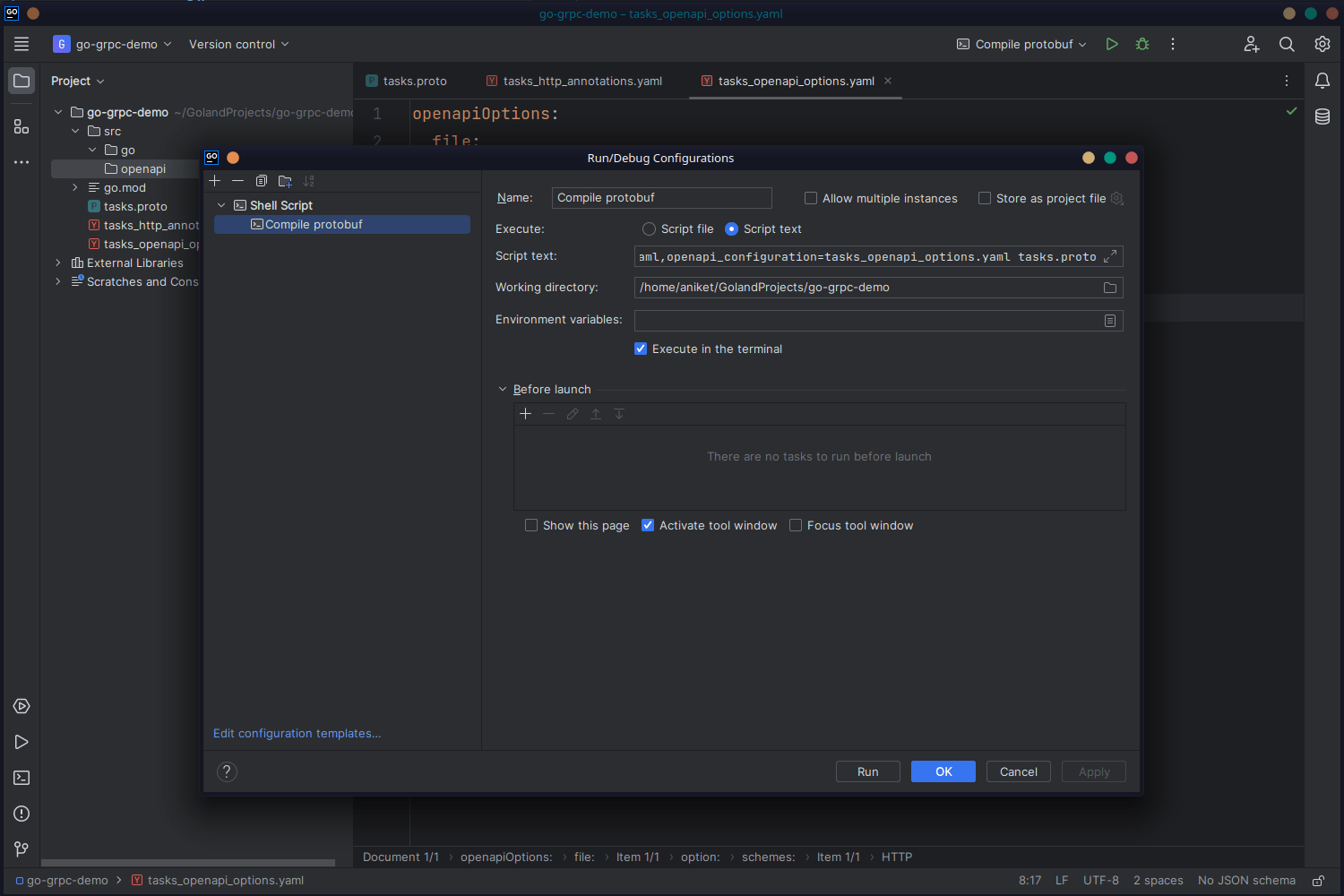

The configuration window

Click OK and save the configuration. You can now test whether this was set up correctly or not. Delete the files in the src/go and src/openapi directories. Then, run the Compile protobuf configuration from the top of the window. This should recreate the four files once again!

If you get an error saying command is not found, it can be because the protoc command must find the binaries installed with go install commands. They are usually installed in $GOBIN, which needs to be added to the $PATH environment variable for JetBrains.

Run echo $GOBIN in the terminal and copy the output.

Back in the Run/Debug Configurations window, click the little icon in the Environment variables field. This will open a new dialog box. In the list of system environment variables, scroll down until you find the PATH variable. Copy its value.

Next, add a new environment variable with the name PATH and the value <YOUR_GOBIN_VALUE_HERE>:<YOUR_PATH_VALUE_HERE>. Replace YOUR_GOBIN_VALUE_HERE with the output of the echo $GOBIN command and YOUR_PATH_VALUE_HERE with the value of the PATH variable:

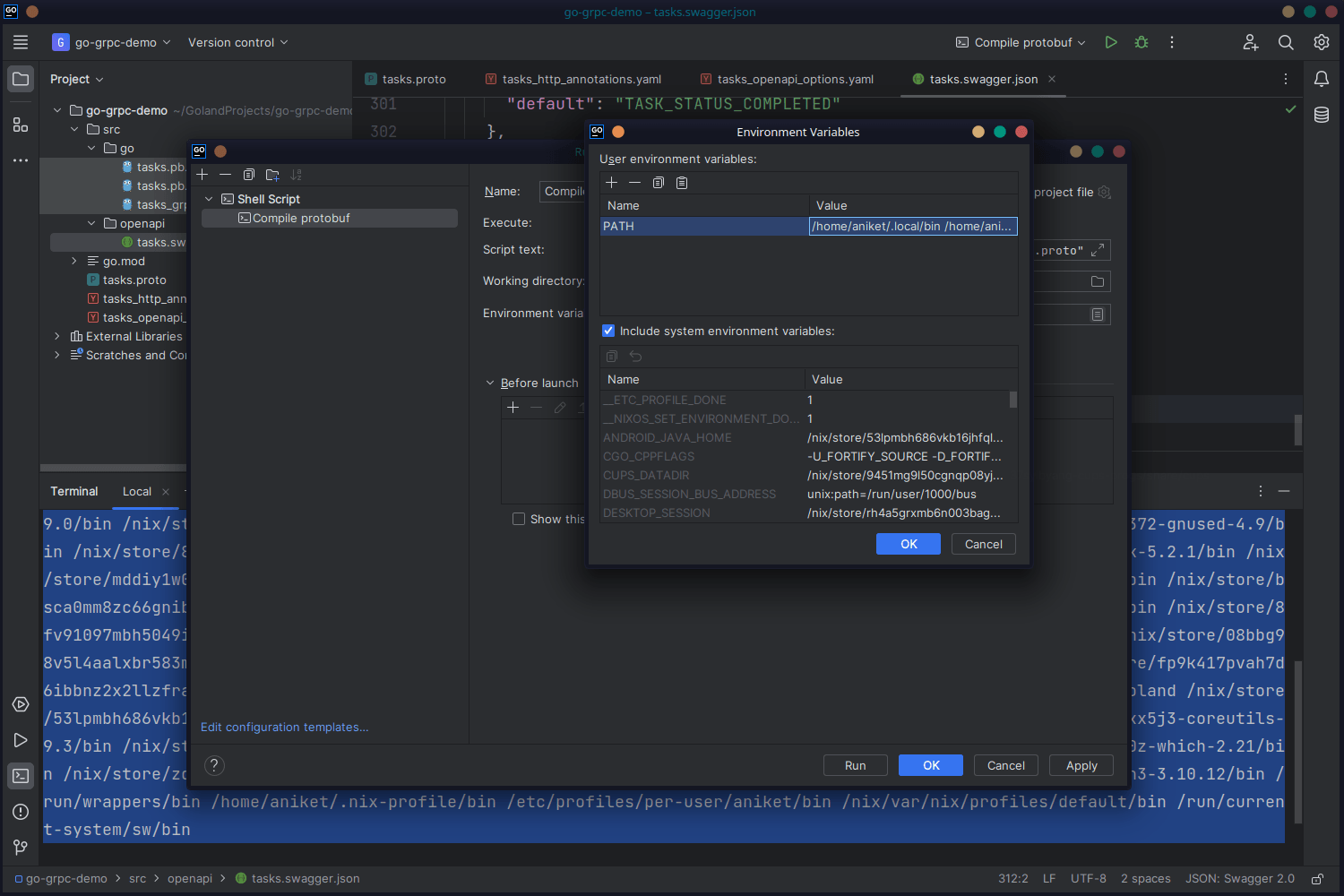

The PATH variable is added to the list of environment variables

Writing the Reverse Proxy Entry Point

The final task for the reverse proxy is to write an HTTP entry point. This is where the REST clients will send requests, which will then be passed to the actual gRPC server.

Create a new directory named proxy in the project root and create a file called proxy.go inside it. Import the required modules and sync the dependencies in GoLand to download any unavailable modules:

package main

import (
  "context"
  "flag"
  "net/http"
  "strings"

  "github.com/golang/glog"
  "github.com/grpc-ecosystem/grpc-gateway/v2/runtime"
  "google.golang.org/grpc"
  "google.golang.org/grpc/credentials/insecure"

  gw "go-grpc-demo/src/go"
)

In the last line, note that you're importing the gRPC gateway generated by the grpc-gateway plugin.

Define a flag to set the address of the actual gRPC server:

var (
  grpcServerEndpoint = flag.String("grpc-server-endpoint", "localhost:9090", "gRPC server endpoint")
)

The following two functions help enable CORS, which is necessary because you'll make requests to the proxy server from GoLand's HTTP client in part four of this series:

func allowCORS(h http.Handler) http.Handler {
  return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
    if origin := r.Header.Get("Origin"); origin != "" {
      w.Header().Set("Access-Control-Allow-Origin", origin)
      if r.Method == "OPTIONS" && r.Header.Get("Access-Control-Request-Method") != "" {
        preflightHandler(w, r)
        return
      }
    }
    h.ServeHTTP(w, r)
  })
}

func preflightHandler(w http.ResponseWriter, r *http.Request) {
  headers := []string{"Content-Type", "Accept", "Authorization"}
  w.Header().Set("Access-Control-Allow-Headers", strings.Join(headers, ","))
  methods := []string{"GET", "HEAD", "POST", "PUT", "DELETE"}
  w.Header().Set("Access-Control-Allow-Methods", strings.Join(methods, ","))
  glog.Infof("preflight request for %s", r.URL.Path)
}

Define a run function that creates an HTTP server and uses the RegisterTaskServiceHandlerFromEndpoint function of the gateway to register the HTTP server and the gRPC server:

func run() error {
  ctx := context.Background()
  ctx, cancel := context.WithCancel(ctx)
  defer cancel()

  mux := runtime.NewServeMux(runtime.WithMarshalerOption(runtime.MIMEWildcard, &runtime.JSONPb{}))
  opts := []grpc.DialOption{grpc.WithTransportCredentials(insecure.NewCredentials())}
  err := gw.RegisterTaskServiceHandlerFromEndpoint(ctx, mux, *grpcServerEndpoint, opts)
  if err != nil {
    return err
  }

  return http.ListenAndServe(":8081", allowCORS(mux))
}

Note that TaskService in the name of the function corresponds to the TaskService name in the tasks.proto file. If you use a different name for the service, the function name will also change appropriately.

Finally, the main function sets up the flags and calls the run function:

func main() {
  flag.Parse()
  defer glog.Flush()

  if err := run(); err != nil {
    glog.Fatal(err)
  }
}

The entire file looks like this:

package main

import (
  "context"
  "flag"
  "net/http"
  "strings"

  "github.com/golang/glog"
  "github.com/grpc-ecosystem/grpc-gateway/v2/runtime"
  "google.golang.org/grpc"
  "google.golang.org/grpc/credentials/insecure"

  gw "go-grpc-demo/src/go"
)

var (
  grpcServerEndpoint = flag.String("grpc-server-endpoint", "localhost:9090", "gRPC server endpoint")
)

func allowCORS(h http.Handler) http.Handler {
  return http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
    if origin := r.Header.Get("Origin"); origin != "" {
      w.Header().Set("Access-Control-Allow-Origin", origin)
      if r.Method == "OPTIONS" && r.Header.Get("Access-Control-Request-Method") != "" {
        preflightHandler(w, r)
        return
      }
    }
    h.ServeHTTP(w, r)
  })
}

func preflightHandler(w http.ResponseWriter, r *http.Request) {
  headers := []string{"Content-Type", "Accept", "Authorization"}
  w.Header().Set("Access-Control-Allow-Headers", strings.Join(headers, ","))
  methods := []string{"GET", "HEAD", "POST", "PUT", "DELETE"}
  w.Header().Set("Access-Control-Allow-Methods", strings.Join(methods, ","))
  glog.Infof("preflight request for %s", r.URL.Path)
}

func run() error {
  ctx := context.Background()
  ctx, cancel := context.WithCancel(ctx)
  defer cancel()

  mux := runtime.NewServeMux(runtime.WithMarshalerOption(runtime.MIMEWildcard, &runtime.JSONPb{}))
  opts := []grpc.DialOption{grpc.WithTransportCredentials(insecure.NewCredentials())}
  err := gw.RegisterTaskServiceHandlerFromEndpoint(ctx, mux, *grpcServerEndpoint, opts)
  if err != nil {
    return err
  }

  return http.ListenAndServe(":8081", allowCORS(mux))
}

func main() {
  flag.Parse()
  defer glog.Flush()

  if err := run(); err != nil {
    glog.Fatal(err)
  }
}

You can find the code so far in the part1 branch of this GitHub repo.
