Manage Workflows for Multiple Projects

As a system administrator, you can manage workflows in all the projects for your YouTrack instance. Users who have a project administrator role can only manage workflows in the projects for which they have permission to view and update the project. For more information, see Manage Workflows.

Attach a Workflow to a Project

To use a workflow, you need to attach it to one or more projects. From the Administration menu, you have access to all the projects in YouTrack.

To attach a workflow:

  1. From the Administration menu, select Workflows.

  2. Select the workflow from the list.

  3. In the workflow details, open the Projects tab, click the Manage projects button, and select the projects where you want to apply the workflow.

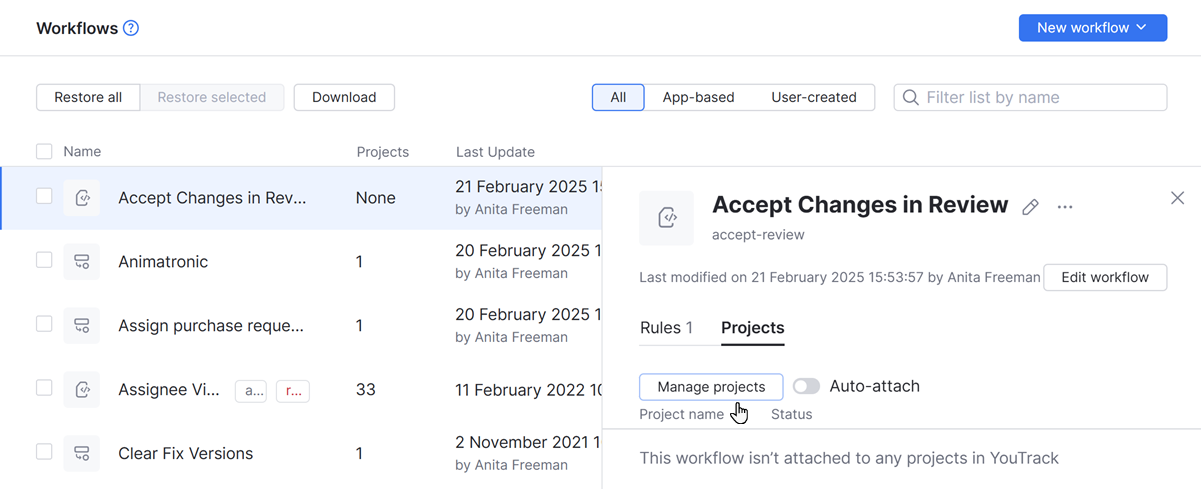

    Attach workflow to selected projects.

    If the workflow isn't attached to any projects, this control displays This workflow isn’t attached to any projects in YouTrack.

    • The workflow is attached to all the selected projects.

    • If there are projects that do not meet the workflow requirements, the requires setup flag is shown.

The requires setup flag indicates that there are requirements that are specified in the workflow that are not available in one or more projects to which the workflow is currently attached. This can mean that the project does not use the required custom fields, values are missing from the set of values in a custom field, or there are issue link types that have not been created in YouTrack. The name of each project that requires setup is displayed in red in the Details sidebar. Under the list of projects that contain errors are the individual rules in the workflow that have errors.

In most cases, these fixes can be applied without leaving the workflow administration page.

To fix setup problems with workflows:

  1. Select the workflow in the list.

  2. In the workflow details, open the Rules tab.

  3. Move the pointer over any of the projects that are displayed in red text.

    • A tooltip displays the changes that are required to activate the workflow in each project.

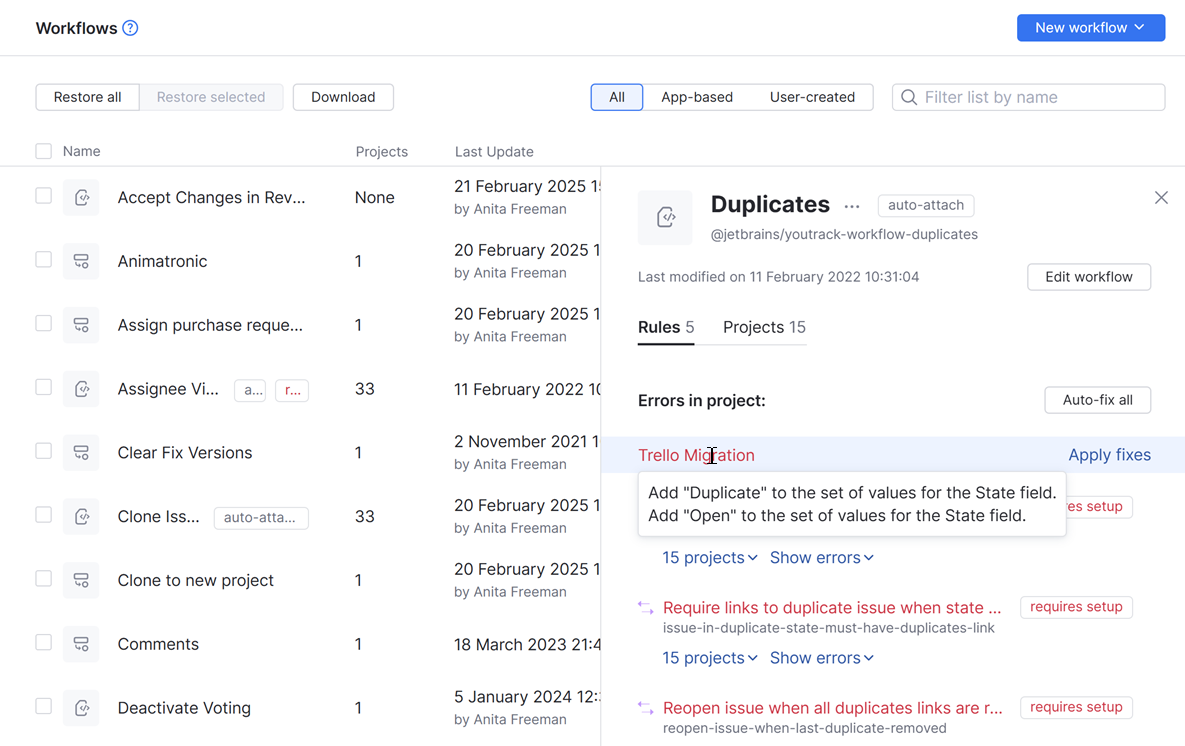

    Attach workflows requires setup.
  4. If you want to fix the problems in all projects at once, click the Auto-fix all button. This opens the Workflow Auto-fixes dialog.

    The Workflow Auto-fix dialog.

    If there are any projects where you don't want to apply this fix, clear the selection for the corresponding update.

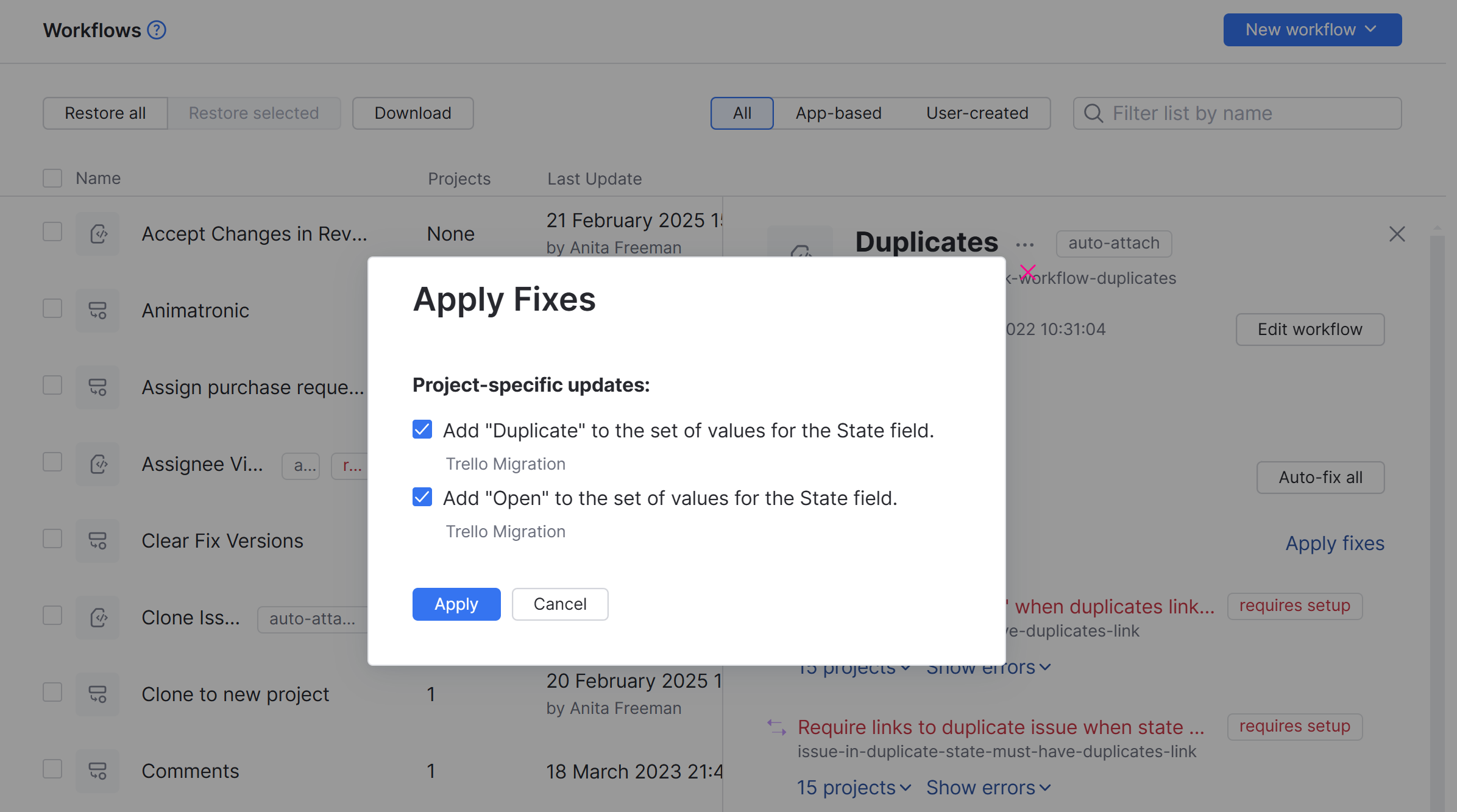

    To fix the problems for a specific project, click the Apply fixes link next to that specific project. This opens the Apply fixes dialog

    Select all the required fixes, then click the Apply button.

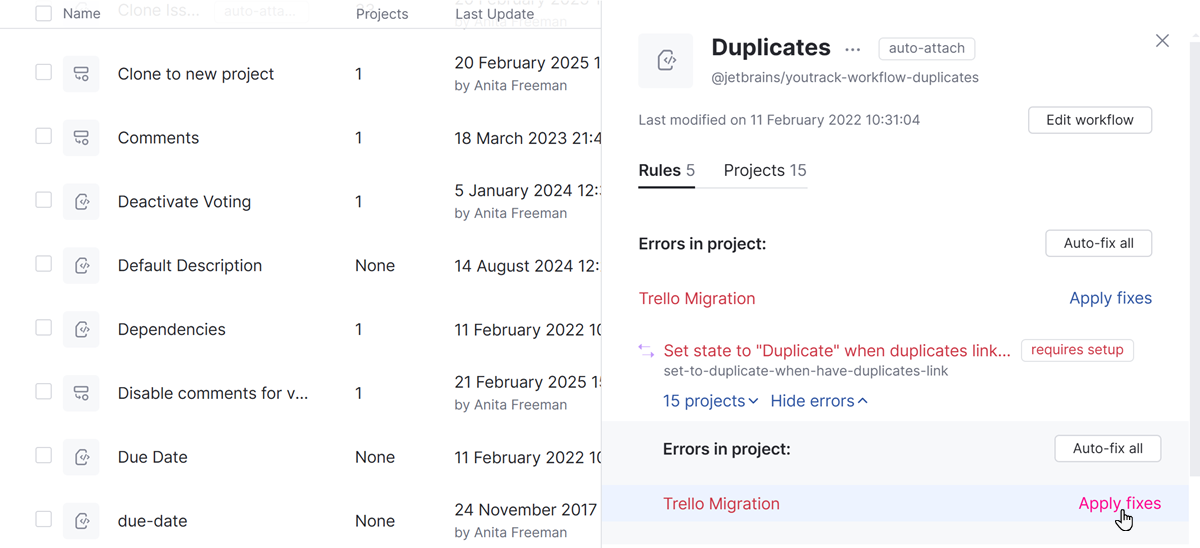

    Attach workflows apply fixes.

    At the bottom of the sidebar are the individual rules within the workflow that contain errors.

    A link below the rule displays how many projects are currently affected. Click this link to attach or remove projects using this rule.

    Click the Show errors link to display the projects attached to the rule. Click the Auto-fix all button to apply fixes for all attached projects or click the Apply fixes link across from a specific project for which to fix a rule error.

    Select all the required fixes, then click the Apply button.

    Attach workflows apply fixes.
    • When done, the requires setup flag is automatically removed from each rule.

    • If the problems are resolved for all the projects that use the workflow, the requires setup flag is removed from the workflow.

Attach Workflows to New Projects Automatically

When working with the Workflows list as an administrator, you have the option to Enable auto-attach or Disable auto-attach for any workflow in the system. Auto-attached workflows are attached to all new projects by default.

To attach a workflow to new projects automatically:

  1. From the Administration menu, select Workflows.

  2. Select the desired workflow.

  3. In the workflow details, open the Projects tab.

  4. Enable Auto-attach.

Auto-attached workflows are marked with an auto-attach badge in the list of available fields.

Deactivate Workflow Rules

When you attach a workflow to a project, all the rules are attached and enabled. You can customize the workflow on a per-project basis by deactivating specific rules.

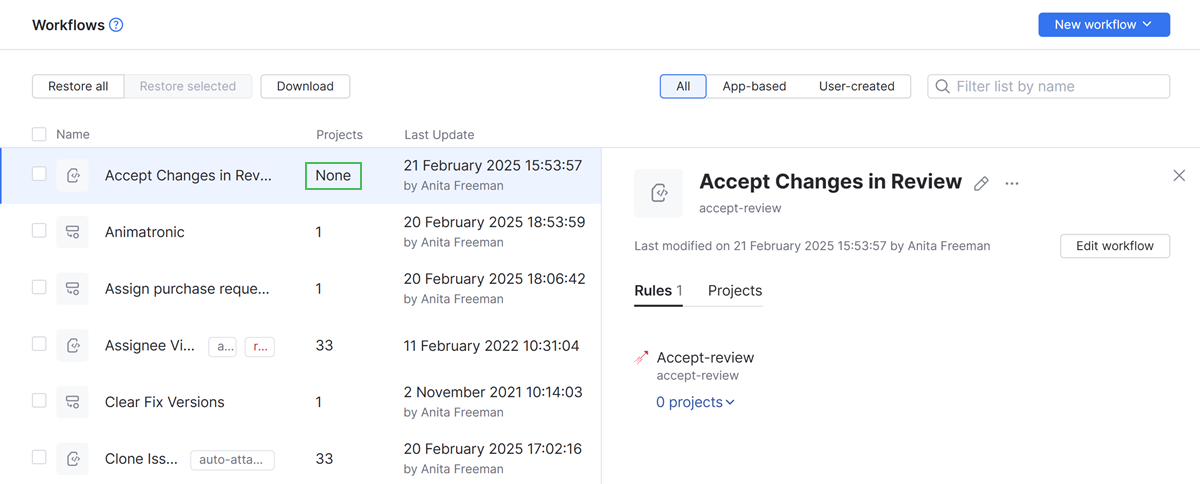

To view the status for each rule in a workflow, select the workflow from the list. Rules that have been detached from all projects show None in the Projects column.

Activate workflow rule no usages.

To deactivate individual rules in a project:

  1. From the Administration menu, select Workflows.

  2. Select a workflow from the list.

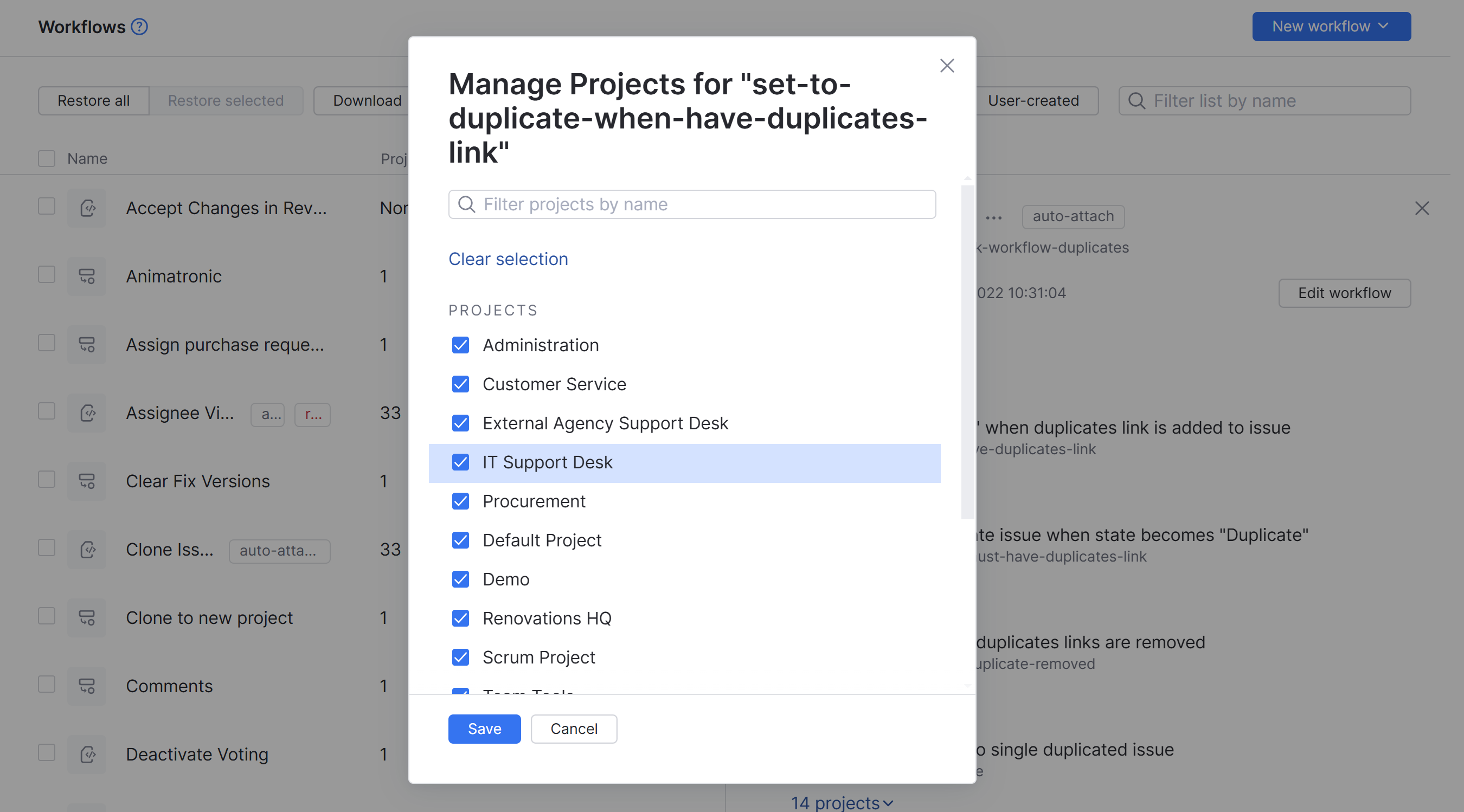

  3. In the details, select the Rules tab and click the Projects link where the rule is active.

  4. A dialog opens. Disable the projects where you want to deactivate the rule or click the Clear selection link to disable all projects for the rule.

    Click Save.

    Detach workflow rule in project.

Detach Workflows

If you no longer want to use a workflow, you can detach it from one or more projects.

To detach a workflow:

  1. From the Administration menu, select Workflows.

  2. Select the workflow that you want to detach.

  3. In the details, select the Projects tab.

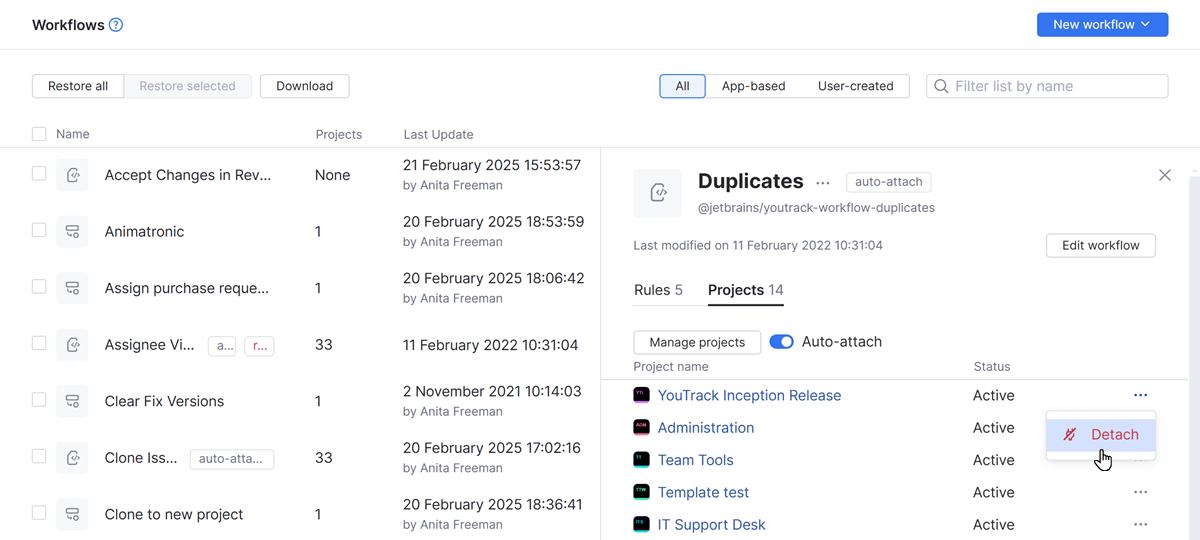

  4. Click the Options menu icon and select Detach.

    Detach workflow from project.
    • Workflows can also be detached by clicking the Manage Projects button. Disable projects to detach them from the workflow and click Save.

Detaching Legacy Workflows

In YouTrack 2020.5, the logic that supported legacy workflows was removed completely. To prevent the application of breaking changes, any attempt to upgrade an installation where legacy workflows are attached to active projects will fail.

To continue with the upgrade to version 2020.5 or later, first detach all legacy workflows from all active projects in your installation.

The fastest way to detect and detach legacy workflows is to open the Workflows list. This list contains all the workflows that are available in your installation. You can tell the difference between these two workflow types by observing the following characteristics:

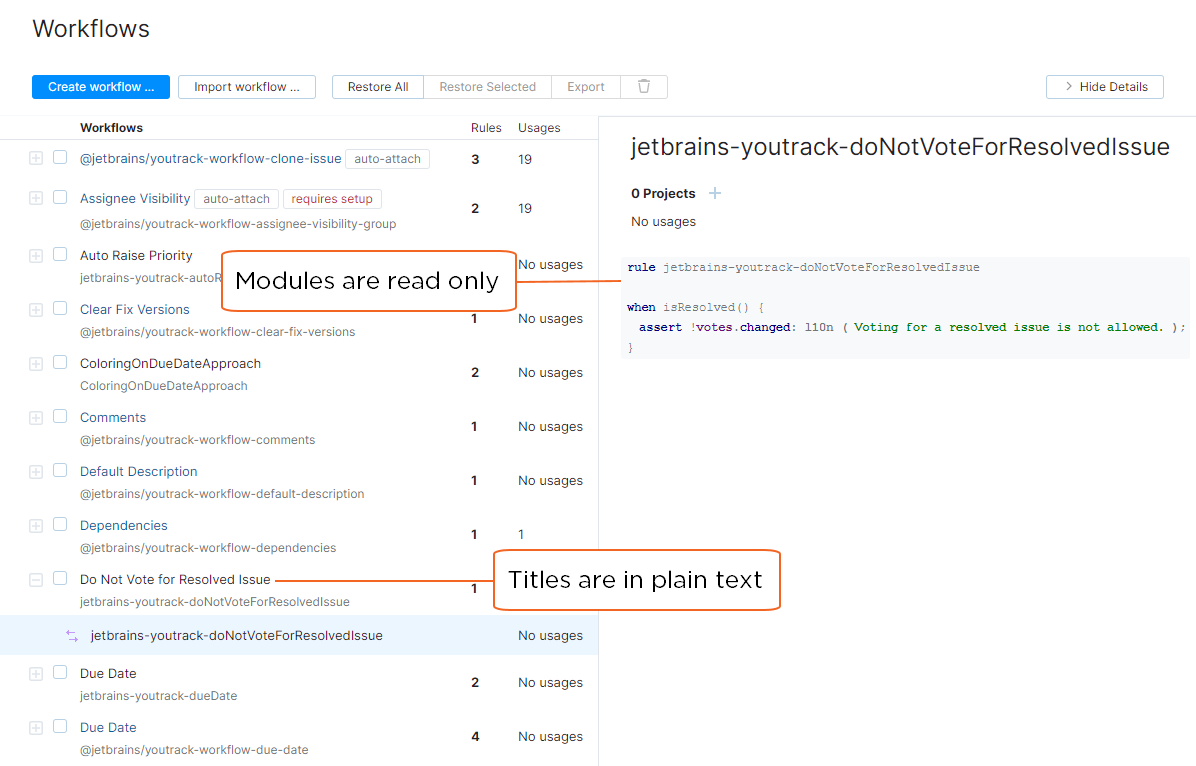

  • The titles for legacy workflows are formatted in plain text. When you select a rule from a legacy workflow, the workflow code is displayed in the sidebar. These rules will not open in the workflow editor window.

    Legacy workflow in workflow list.
  • In YouTrack versions earlier than 2021.4, the workflow titles and module names for JavaScript workflows are formatted as links. Clicking these links opens the workflow or workflow rule in the built-in workflow editor.

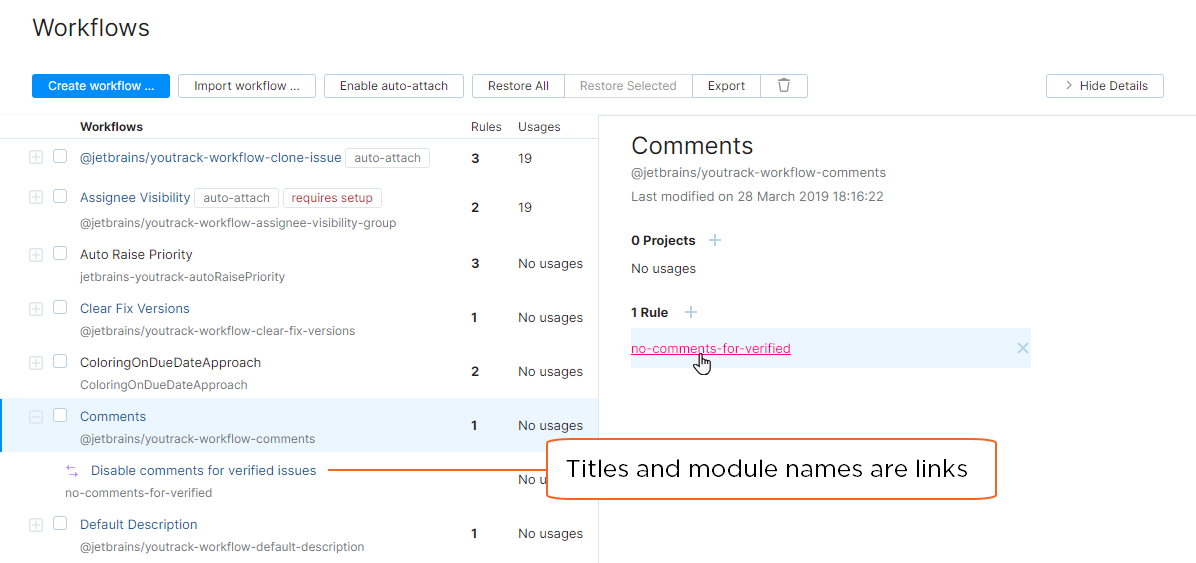

    JavaScript workflow in workflow list.

To detach legacy workflows from all projects:

  1. From the Administration menu, select Workflows.

  2. Check the list for a legacy workflow that is used in at least one project. Use this information to locate these workflows:

    • Look for workflows with titles that are formatted in plain text.

    • Check the Usages column for a positive number.

  3. Select the legacy workflow. If the sidebar is hidden, click the Show details button.

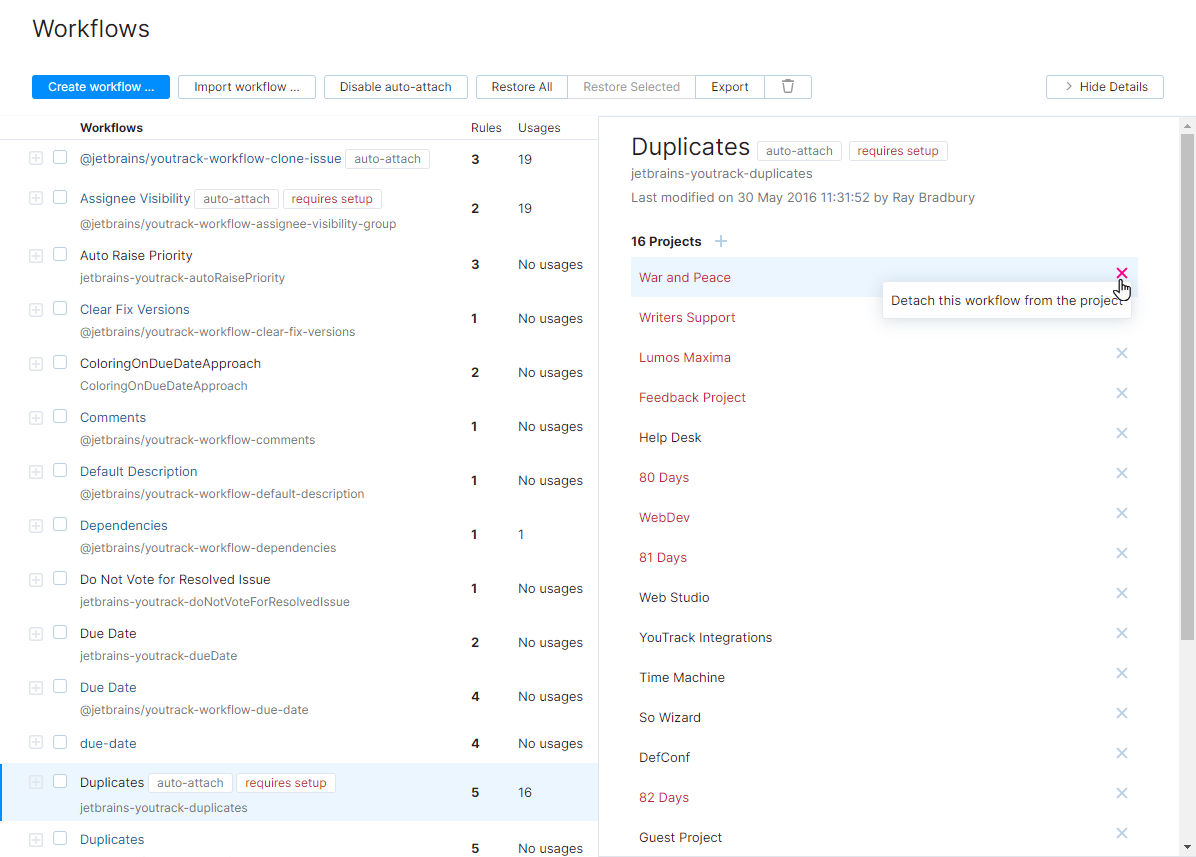

  4. Click the X icon for the first project in the list to detach the workflow from the corresponding project.

    Detach workflow from project.

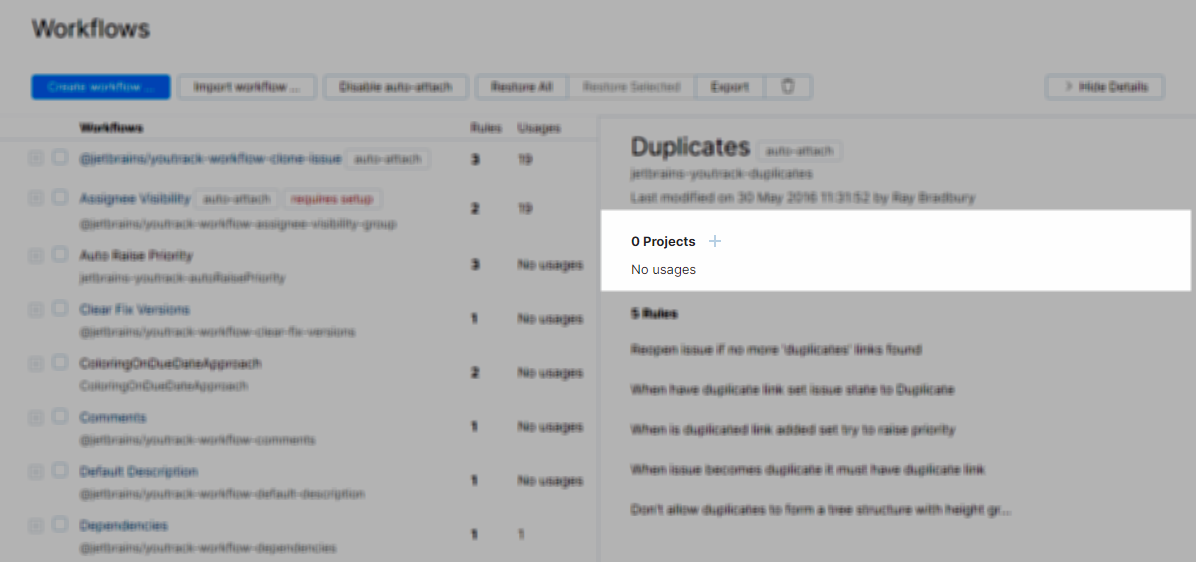

    Continue detaching the workflow from any remaining projects until the setting in the detail panel reads 0 projects, No usages.

    Legacy workflows detached from all projects.
  5. Repeat this procedure from step 2 until you have detached all legacy workflows from every project in your installation.
