Dive into plugins: the PlantMPS plugin

Introduction

The PlantUML plugin developed by the mbeddr.com project seemed to me very interesting, I already knew PlantUML so I decided to study the plugin to learn how an external tool can be plugged into MPS.

As a bonus I've created a self contained plugin called PlantMPS that let one uses PlantUML without importing into MPS the whole mbeddr platform.

I've also ported the LanguageVisualization plugin to PlantMPS so one can use it without mbeddr.

The tutorial describes almost all the steps I've followed to write the plugin but it's not a step-by-step guide. There are other resources available about plugins so here I have not documented generic plugin features, rather I've focused more on specific technics and API used to implement the plugin by the mbeddr guys.

How the plugin works

First of all the plugin define a language with an interface called IVisualizable, concepts that implement that interface can be visualized in one or more PlantUML diagram types. To implement this the IVisualizable interface defines two methods:

  • the first returns an array of strings that are the categories the concept supports, for instance Class diagram and Activity diagram.

  • the UI let the user to choose one of the supported categories, so the second method receives the select category and fill the diagram, also recevied as parameter, with PlantUML statements required to display the selected category for that concept.

An example of these methods can be:

public string[] getCategories() { return new string[]{"Class diagram", "Activity diagram"}; }

and

public void getVisualization(string category, VisGraph graph)   overrides IVisualizable.getVisualization {   if (category.equals("Class Category")) {     graph.add("\nclass " + this.name;   } else if (category.equals("Activity Category")) { //... } }

To use the plugin your concepts should only implement this interface, the rest is handled by the plugin and include:

  • history to handle next and previous diagram visualization.

  • save the generated SVG image.

  • copy the PlantUML source to the clipboard.

  • zoom

  • go-to-node feature when the user click the SVG image.

PlantMPS also differs from the original mbeddr plugin in:

  • mbeddr starts an HTTP server that exposes several services that can be requested by internal or even external processes. In the original plugin the go-to-node feature was implemented transforming the user click over the SVG into an HTTP request. PlantMPS directly select the requested node. In case you are interested in this topic take a look at application plugin and extension point concepts in the c.mbeddr.mpsutil.httpserver module.

Credits

Getting started

Create the project

Usually I place the MPS stuff under code, so in the project root I can place documentation, README, etc, not related with MPS. So the project one can open from MPS is in our case under code/plantmps. The language created with the project will hold the IVisualisable interface and the VisGraph class used to hold the diagram source.

Then we need a plugin solution as the container for our plugin:

  • right click over the project node and choose New -> Plugin Solution.

  • the choosed name is org.mar9000.plantmps.plugin.

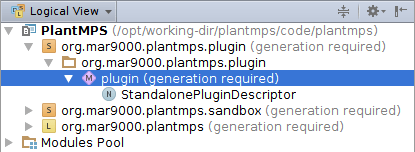

The MPS IDE should now look this way:

Newly created project

Create the tool

Now that we have a plugin solution we can create an MPS Tool:

  • right click over the plugin model and select New -> j.m.lang.plugin -> Tool.

  • set the name to SVGViewer and caption to Visualization.

Add a tool icon

This is an interesting part. First the icon size used by MPS is 13x13, I copied the icon from the mbeddr project after investigating the source code of ther Idea project where the class AllIcons comes from. The icons dir has been placed at the same level of the solution, indeed code /plantmps/solutions/org.mar9000.plantmps.plugin/icons.

Second to specify icons you need the j.m.lang.resources language, so include it as used language, you can do it from the Module Properties dialog:

  • place the caret over the icon: field and hit ctrl+space

  • you should see the IconResource option.

  • select it, a button should appear on the UI that let you select the icon file from the filesystem.

  • if you look at the inspector you should see how paths can be specified relative to module directory, that is ${module}/icons/....

Complete a dummy tool

The only thing to complete to open our first tool is the getComponent() method, for the moment just return a JLabel(). To do this you need to import JDK/javax.swing@java_stub. The fastest way to import this model is:

  • hit ctrl+R.

  • write JLabel.

  • one of the suggested option should be the model indicated above, select it.

  • now you can use new JLabel() as java statement.

The tool should look this way:

tool SVGViewer {] caption: Visualization] number: <no>] icon: <here you have the added icon>] position: right] [snip]] getComponent()->JComponent {] new JLabel("Your first Tool.");] }] }

Tool life cycle

Remember that a Tool is instantiated only once when you open it or in case of modifications while you are developing it, indeed the getComponent() method is called once. Actions when invoked alter the state of the Tool, in our case set the node to be displayed, and call openTool() method that has the effect to set the Tool visible on screen.

Adding actions

An action is required to open our tool and an action group is required in order to display the action menu somewhere in one of the MPS menus. First create the action:

  • right click the plugin model and select New -> j.m.lang.plugin -> Action.

  • set the name and other trivial parameters.

  • action context parameters are parameters passed to the action at runtime. They are specified from fields of classes of the MPS or Idea API.

    Here we need the key PROJECT contained into CommonDataKeys, include its model with ctrl+R.

    Another important container of the keys is MPSCommonDataKeys, we are going to use it in this tutorial.

  • now you should be able to select PROJECT into the drop down menu that appears with ctlr+space.

  • set the mnemonic: parameter to "V", it does not bind any key to our menu only display the first letter of Visualize underscored.

To complete the execute() method as below your should add MPS.Platform as dependency of the plugin solution. The tool should look now this way:

action VisualizeAction { mnemonic: V execute outside command: false also available in: << ... >> caption: Visualize description: <no description> icon:<our icon> construction parameters << ... >> action context parameters ( always visible = false ) Project project key: PROJECT required <update block> execute(event)->void { tool<SVGViewer> svgViewer = this.project.tool<SVGViewer>; svgViewer.openTool(true); } }

Last thing to do to open the tool is to add our action somewhere into the MPS menus:

  • right click the plugin model and select New -> j.m.lang.plugin -> ActionGroup.

  • call it VisualizeActionGroup.

  • you should see a small red/mandatory field, here select element list, another field where you can select actions should appear.

  • select our VisualizeAction, should be the first option.

The modifications section is used to specify where the action menu should appear, as in the case of CommonDataKeys we need to import a model in order to specify interesting places:

  • EditorPopup contained in j.m.ide.editor.actions is the menu that appears when you right click over the editor area.

  • NodeActions contained in j.m.ide.actions is the menu that appears when you right click over a node in the tree area.

  • search ActionGroupDeclaration to find more, another one is ModelActions.

Your action group should be:

group VisualizeActionGroup is popup: false contents VisualizeAction modifications add to EditorPopup at position <default>

It's time to open our tool:

  • rebuild the solution, ctrl+F9.

  • either from a node on the left tree or from the editor you should the menu Visualize.

Keys binding with Keymap

As stated above the mnemonic: parameter does not realize any binding rather it's just to visually underscore one of the characters of the menu.

Keys binding is declared with instance of KeymapChangesDeclaration from the j.m.lang.plugin language:

  • after creation add a simple item.

  • then select VisualizeAction into the action field.

  • indicate ctrl+alt+VK_V as binding.

Rebuild with ctrl+F9 and you should be able to open the tool using ctrl+alt+V.

Use the defined actions programmatically

As we saw actions can be defined that displayed somewhere in the MPS menus. But actions and action groups can also be instantiated programmatically, actions will be displayed like buttons and action groups like toolbars.

See SVGViewer.getComponent() where the Tool toolbar is built, take a look at the actionGroup<> and toolbar<> creators. For this you need to import j.m.workbench.action@java_stub. All actions into the toolbar package are very simple they get the Tool from the project field and call one or more methods to update its state. The Save action has also the FRAME context parameter.

Tune actions

The action we've created is always available but we want to show it only when we are on a node IVisualizable. To do it add a context parameter to the VisualizeAction:

action context parameter (always visible = false) Project project key: PROJECT required node<IVisualizable> elementToVisualize key: NODE required

Also note the event.getPresentation().setText() to dynamically set the text displayed as menu. If you clone and open the PlantMPS plugin you can verify that the Visualize action appears only for IVisualizable nodes, try the DummyVis1 and DummyVis2 nodes.

Dynamic actions

As we have just seen the DummyVis2 nodes can be visualized in several categories. This is implemented with dynamic actions. In particular when a node has only one category it's handled by the VisualizeAction action, see VisualizeAction.isApplicable(event). When a node as more than one category this action become disabled and VisualizeActionParametrized become enabled. This ladder action is almost equal to the first but it has a construction parameter, is this case a string named cat. If we have the category we want to display the execute() method can display this category through VisGraph instead of the first available category as done by VisualizeAction.

The parametrized actions are created by VisualizeActionGroupDynamic that differs from VisualizeActionGroup in several places. First right after its creation you should select (right below it's invisible when disable) update instead of element list. The content of the update(event) method is simple, however note:

  • the add statement used to add the parametrized action.

  • the disable(boolean) method.

  • there is also a method setPopup(boolean) to dynamically visualize the added actions inline with all the other menus or as a separate menu (popup).

Remember to open the Inspector when you specify the cat parameter because you when to enter the toString() method.

Here the PlantMPS plugin differs from the original mbeddr plugin that always enable both parametrized and non parametrized actions. Actually, the current implementation of PlantMPS could have been done only with dynamic actions, enabling the popup in case of more than one action and disabling the popup in case of just one action. But this would have given a smaller tutorial. The concept that result to be handled by the dynamic group is DummyVisualizableMoreCategory and its instance DummyVis2.

Create actions programmatically

Actions can also be created, and used programmatically, see for instance ChangeCategoryAction that implements the combobox that let the user switch from one category to another category of the same node. In the AbstractChangeCategoryAction class note how the enabled property is created with a specific concept (Property from baseLanguage).

History

The class VisualizationHistory is almost pure java but:

  • to implement the history i necessary to save a reference to the node to visualize at that point of the history and which category to show. However the node is not assigned directly to a field of an history item, as you can see from the use of the SNodePointer class. This is to prevent memory leaks as pointed out in HowTo -- Adding additional Tools (aka Views).

Add PlantUML and SVG support

At this point we are going to use the IVisualizable interface from the o.m.plantmps language, its's not described in details because it really simple and it has nothing related with plugins. Just remember that to create the field Project project one needs to import j.m.project@java_stub. I've pointed out this because dependencies are often the dark side of MPS.

Note that the PlantMPS plugin differs from mbeddr plugin in the way it responds to user click over the SVG image. As stated above mbeddr executes an HTTP request toward its HTTP server and it execute the node selection on the editor. Whereas PlantMPS directly execute the code that select the node, see MbeddrUserAgent.openLink().

Adding jars

After you have placed your jars into a directory, in our case the lib dir. under the plugin solution dir, from the Module Properties window (alt+enter) you have to:

  • Common tab: click Add Model Root and choose javaclasses.

  • then on the right select the jars for your dir and click the Models button.

  • into the Java tab add the jars into the Libraries section.

If everything went well you should see a new item into the navigation tree of your language/solution named stubs. Remember that in case you add other jars the Add Model Root -> javaclasses is required only when you add the firsts jars.

Implenting language, generation plan and java_stub diagrams

to be continued
