Compare file and folder versions using Diff viewer

MPS allows you to examine the differences between two revisions of a file/folder or between their current local copy and the repository version. The differences are displayed in the Diff Viewer.

Compare a modified file with its Git repository version

  1. Open the Commit tool window Alt+0.

  2. Locate the required file in a changelist and do one of the following:

    • Right-click the file and select Git | Show Diff.

    • Select the file and press Ctrl+D.

    • Double-click the file.

  3. The diff view opens where changes to the file are highlighted.

    The right pane contains the modified version of the file. You can edit it in the diff view.

    The left pane contains the initial version of the file. It is read-only. You can click Revert (Revert) to undo a change.

Compare the current revision of a file or folder with a revision in the same Git branch

  1. Select a file or a folder in the Project tool window, and choose Git | Compare With Revision from the context menu.

  2. Choose a revision you want to compare the current file or folder version with from the dialog that opens.

Compare the current revision of a file or folder with another Git branch

  1. Select a file or a folder in the Project tool window, and choose Git | Compare With Branch from the context menu.

  2. Choose the branch you want to compare the current file or folder version with from the dialog that opens.

Compare two nodes

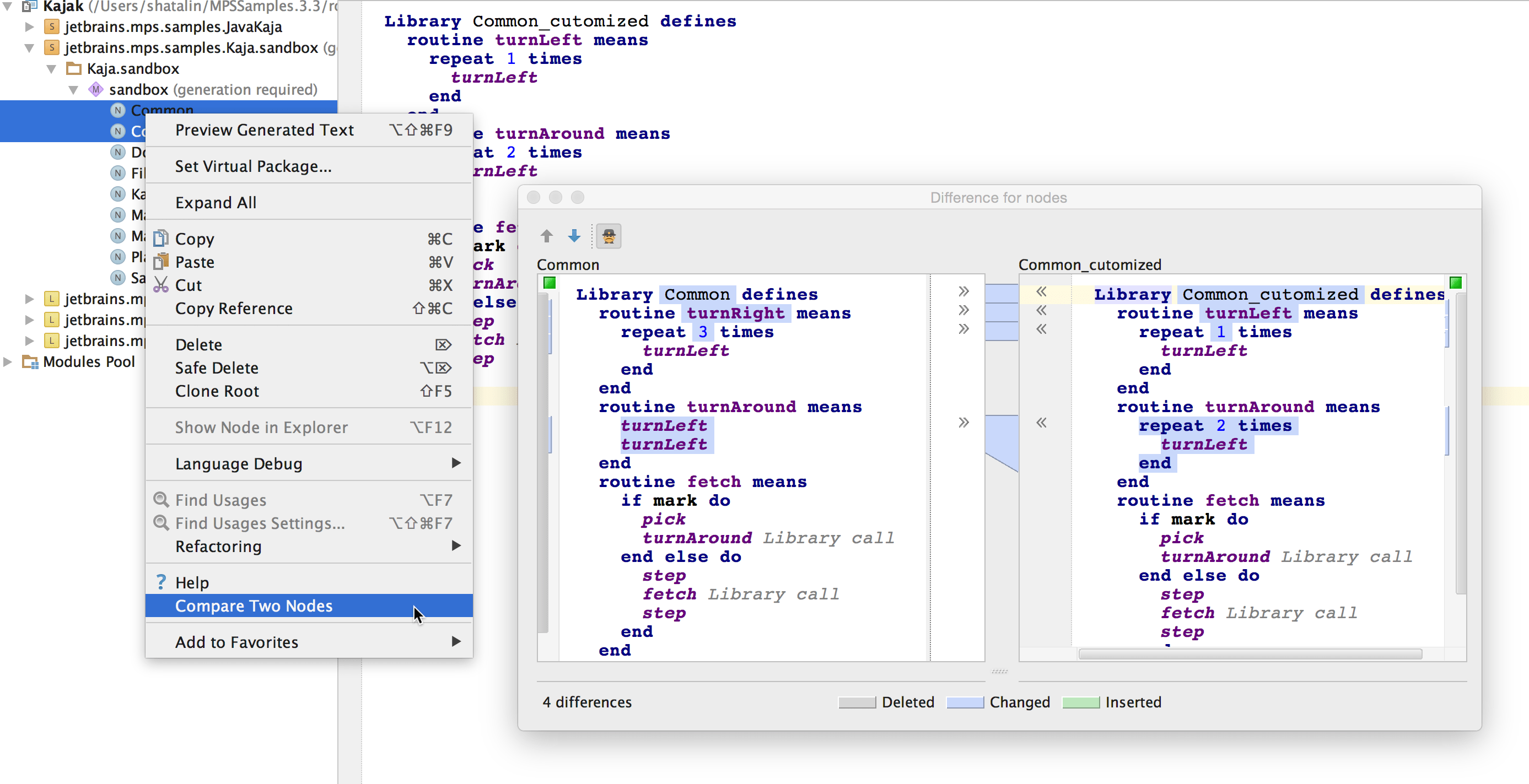

  • Select two nodes in the Project View tool window. VCS comparison dialog opens that visualizes the mutual differences and allows easy modifications.

    MPS Compare 2 nodes

Compare local changes with the base revision

Apart from navigating through your local changes within a file in the editor, you can review these changes compared to the base revision of the file.

To preview the diff, select a modified file in the Commit tool window and click on the toolbar.

The left pane shows the affected code as it was in the base revision, and the right page shows the affected code after you've made changes locally.

Use the toolbar buttons and controls to navigate between changes and configure the appearance of the Change Details pane or the Diff Viewer:

Item

Tooltip and Shortcut

Description

the Previous Difference button/the Next Difference button

Previous Difference / Next Difference Shift+F7 F7

Jump to the next or previous difference.

When the last or the first difference is reached, MPS suggests clicking the arrow buttons or pressing F7/Shift+F7 once more and comparing other files modified locally. This behavior depends on the Go to the next file after reaching last change option in the Diff Viewer settings.

the Jump to Source button

Jump to Source

F4

Open the selected file in the editor. The caret is placed in the same position as in the Diff Viewer.

the Compare Previous File icon

the Compare Next File icon

Compare Previous/Next File

Alt+LeftAlt+Right

Compare the local copy of the previous or next file with its update from the server.

the Go To Changed File icon

Go To Changed File Ctrl+N

Display all changed files in the current change set and navigate to them. This action is only available when you review changes to multiple files.


You can group the modified files - by directory or module.

Viewers

Select a viewer mode: "MPS model viewer", "side-by-side" or "unified". The side-by-side mode has two panels, the unified mode has one panel. The MPS model viewer shows a list of changed root nodes and for the selected root node shows two panels.

The MPS viewer offers several configuration settings:

  • Show Inspector - makes the Inspector tool window visible in the dialog for both panels.

  • Use Short Change Description - show a shorter variant of the description. The users may find it more readable.

  • Hide Non-Functional ID Changes - ignores changes when a node has been replaced with its identical copies (e.g. by retyping the same code).

  • Hide Non-Functional Resolve-Info Changes - when enabled, references to a declaration that has merely changed its name will not be highlighted as changed.

  • Track Moved Nodes - identifies nodes that have been moved to a different position and visually distinguishes them from mere removals/additions of nodes.

  • Hide Unordered Moves - available when "Track Moved Nodes" is on, ensures that reordered nodes in a collection defined as "unordered" in the structure aspect are not highlighted as a change.

You can edit code and perform the Accept, Append, Revert actions in both viewers.

You can change text only in the right-hand part of the side-by-side viewer or in the lower line in the unified viewer.

You can edit only local versions of your files. You cannot edit files that have read-only status.

Whitespace

Define how the Diff Viewer should treat whitespaces.

  • Do not ignore: white spaces are important, and all the differences are highlighted. This option is selected by default.

  • Trim whitespaces: trim whitespaces if they appear in the end and at the beginning of a line (("\t", " ")).

    • If two lines differ in trailing whitespaces only, these lines are considered equal.

    • If two lines are different, trailing whitespaces are not highlighted in the By word mode.

  • Ignore whitespaces: white spaces are not important, regardless of their location in the source code.

  • Ignore whitespaces and empty lines: ignores whitespaces and empty lines. The following entities are ignored:

    • all whitespaces (as in the 'Ignore whitespaces' option)

    • all added or removed lines consisting of whitespaces only

    • all changes consisting of splitting or joining lines without changes to non-whitespace parts.

      For example, differences between a b c and a \n b c are not highlighted in this mode.

Highlighting mode

Select the way differences granularity is highlighted.

The available options are:

  • Highlight words: modified words are highlighted

  • Highlight lines: modified lines are highlighted

  • Highlight split changes: if this option is selected, big changes are split into smaller changes.

    For example, A \n B and A X \n B X are treated as two changes instead of one.

  • Highlight characters: modified symbols are highlighted

  • Do not highlight: if this option is selected, the differences are not highlighted at all.

    Use the Do not highlight option when you work with the files that were significantly modified. In such cases, highlighting might introduce additional difficulties during a review.

the Collapse Unchanged Fragments icon

Collapse Unchanged Fragments

Collapse all the unchanged fragments in both files. The amount of non-collapsible unchanged lines is configurable on the Diff & Merge settings page. To open the Diff & Merge page, open settings by pressing Ctrl+Alt+S and navigate to Tools | Diff & Merge. .

the Synchronize button

Synchronize Scrolling

Click this button to scroll both differences panes simultaneously. If this button is released, each of the panes can be scrolled independently.

the Settings button

Settings

Open a list of available settings.

These commands are also available from the context menu of the Diff Viewer gutter.

the External Tools icon

Show diff in external tool

Invoke an external diff viewer specified on the External Diff Tools settings page.

This button is available only on the toolbar when the Use external diff tool option is enabled on the External Diff Tools settings page.

the Help icon

Help

F1

Open a browser and show the corresponding help page.

Annotate with GitBlame

This option is only available from the context menu of the gutter.

Use this option to explore who introduced which changes to the repository version of the file and when. The annotations view lets you see detailed information for each line of code, such as the version from which this line originated, the ID of the user who committed this line, and the commit date.

For more information about annotations, refer to Locate code author (Annotate with Git Blame).

The most useful shortcuts are the following:

Shortcut

Description

Use this keyboard shortcut to show the popup menu of the most commonly used diff commands.

Ctrl+Shift+Tab

Use this keyboard shortcut to switch between the left and the right panes.

Ctrl+Z/Ctrl+Shift+Z

Use this keyboard shortcut to undo/redo a merge operation. Conflicts will be kept in sync with the text.
