OpenID 2.0 Auth Module

In addition to the OpenID providers that are supported with built-in authentication modules, Hub lets you enable authentication for any OpenID provider that uses OpenID 2.0.

Enable OpenID Authentication

To allow users to sign in to Hub with OpenID authentication, enable an OpenID authentication module.

To enable OpenID authentication:

  1. In the Access Management section of the Administration menu, select Auth Modules.

  2. From the Add Module drop-down list, select OpenID 2.0.

    • The Add Module dialog opens.

  3. In the Add Module dialog, enter values for the following settings:

    Field

    Description

    Name

    Enter a name for the authentication module.

    Server URL

    Enter the server address of the OpenID provider. The provider defines the format required for the URL.

    For details, refer to the documentation of the OpenID provider.

  4. Click the Create button.

    • The OpenID authentication module is enabled.

    • The Auth Modules page displays the settings for the OpenID authentication module. For additional information about the settings on this page, see the Settings section.

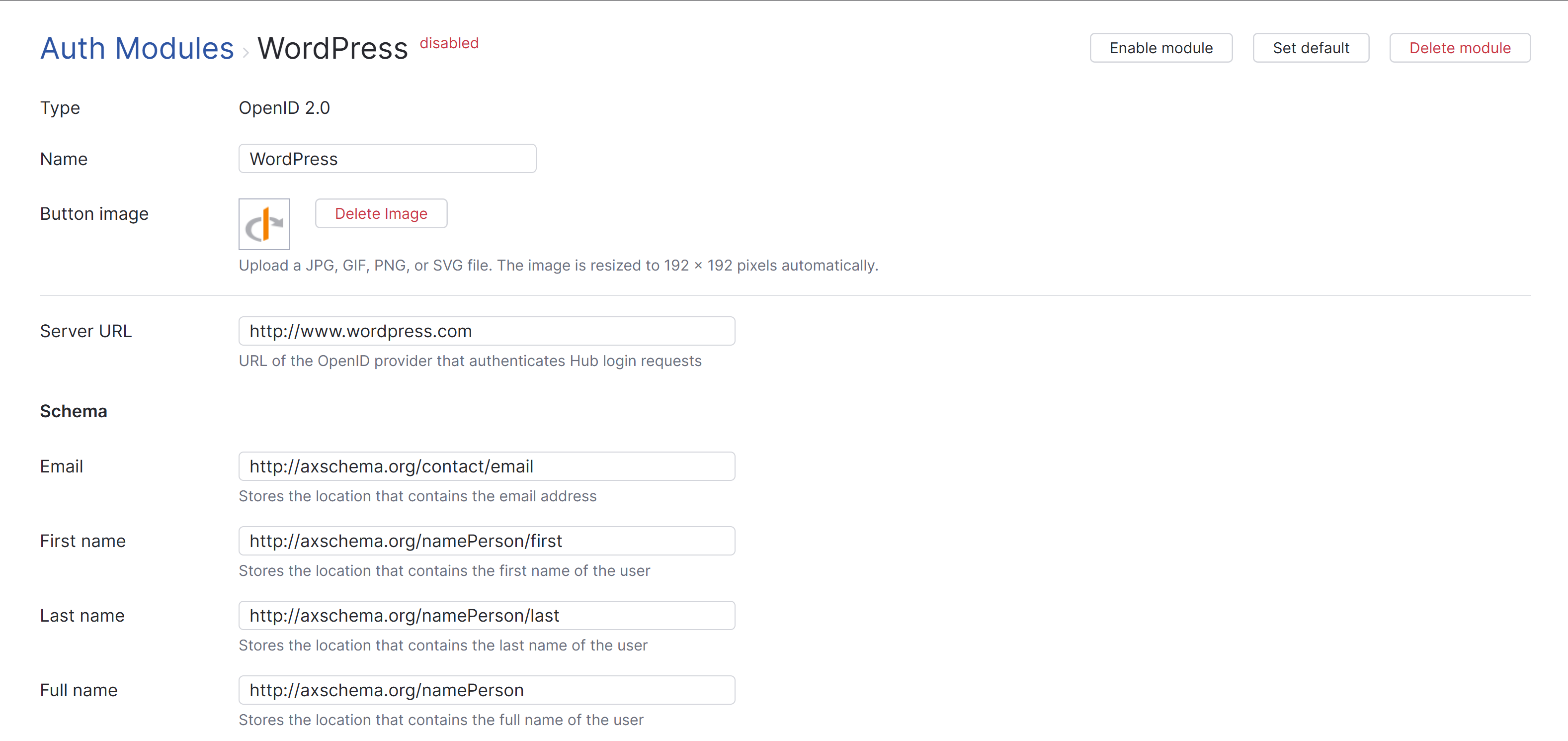

      Open id auth module settings

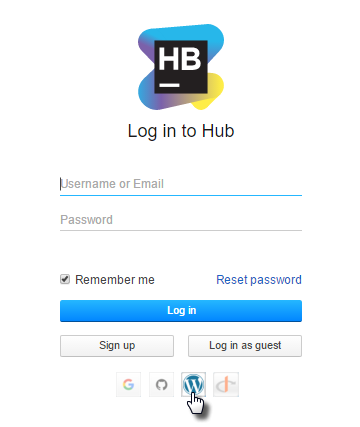

    • The icon stored in the Button Image setting is added to the login dialog window. Users can click this icon to authenticate with their OpenID credentials.


Settings

The settings are configured automatically when the module is added to Hub. You do not have to change these settings. To configure the options that define how Hub treats new user accounts with OpenID credentials, see Additional Settings.

Field

Description

Type

Displays the name of the application or service that is enabled for third-party authentication in Hub.

Name

Stores the name of the authentication module. Use this setting to distinguish this module from other authentication modules in the Auth Modules list. The name is also shown in the tooltip for the third-party service icon on the login form.

Button image

Displays the image used for the button that a user clicks to log in to Hub with their account in the connected authorization service. You can upload a JPG, GIF, or PNG file. The image is resized to 48 x 48 pixels automatically.

Server URL

Stores the URL of the OpenID provider used to authenticate a login request in Hub.

Schema

Use the following settings to map user data stored with the OpenID provider to user accounts in Hub.

Field

Description

Email

Stores the location that contains the email address.

First name

Stores the location that contains the first name of the user.

Last name

Stores the location that contains the last name of the user.

Full name

Stores the location that contains the full name of the user.

Avatar

Stores the location that contains the avatar of the user.

Additional Settings

When a user logs in to Hub with an OpenID account for the first time, Hub checks if an account with the same email address exists. If an account with the same email address exists, the OpenID credentials are added to the existing account.

Use the following settings to configure how Hub manages user accounts. These settings also let you reduce the loss of processing resources consumed by idle connections.

Option

Description

User creation

Enables creation of Hub accounts for unregistered users who log in with an account that is stored in the connected authorization service. Hub uses the email address to determine whether the user has an existing account.

Email auto-verification

Determines how Hub sets the verification status of an email address when the authentication service does not return a value for this attribute.

Auto-join groups

Adds users to a group when they log in with an account that is stored in the connected authorization service. You can select one or more groups. New users that auto-join a group inherit all the permissions assigned to this group.

We recommend that you add users to at least one group. Otherwise, a new user is only granted the permissions that are currently assigned to the All Users group.

Connection timeout

Sets the period of time to wait to establish a connection to the authorization service. The default setting is 5000 milliseconds (5 seconds).

Read timeout

Sets the period of time to wait to read and retrieve user profile data from the authorization service. The default setting is 5000 milliseconds (5 seconds).

Audit

Links to the Audit Events page in Hub. There, you can view a list of changes that were applied to this authentication module.

Actions

The following actions are available in the header:

Action

Description

Set default

Designates the authentication module as the default for your installation. Only one authentication module can be set as the default at any time. If another module is currently set as the default, that state is cleared.

This option is only shown when the current authentication module is not designated as the default.

Clear default

Removes the authentication module as the default for your installation.

If none of the available authentication modules are designated as the default, unauthenticated users are always directed to the Hub login page.

This option is only shown when the current authentication module is designated as the default.

Disable module

Disables the authentication module.

This option is only shown when the authentication module is currently enabled.

Enable module

Enables the authentication module.

This option is only shown when the authentication module is currently disabled.

Delete module

Removes the authentication module from Hub. Use only when you have configured additional authentication modules that let users log into your Hub installation.

Last modified: 22 August 2024
