Linker scripts

To assist you in creating and editing linker scripts for embedded development, CLion supports the Linker Script (LD) language.

The following code insight features are available for your .ld files:

• Customizable syntax highlighting

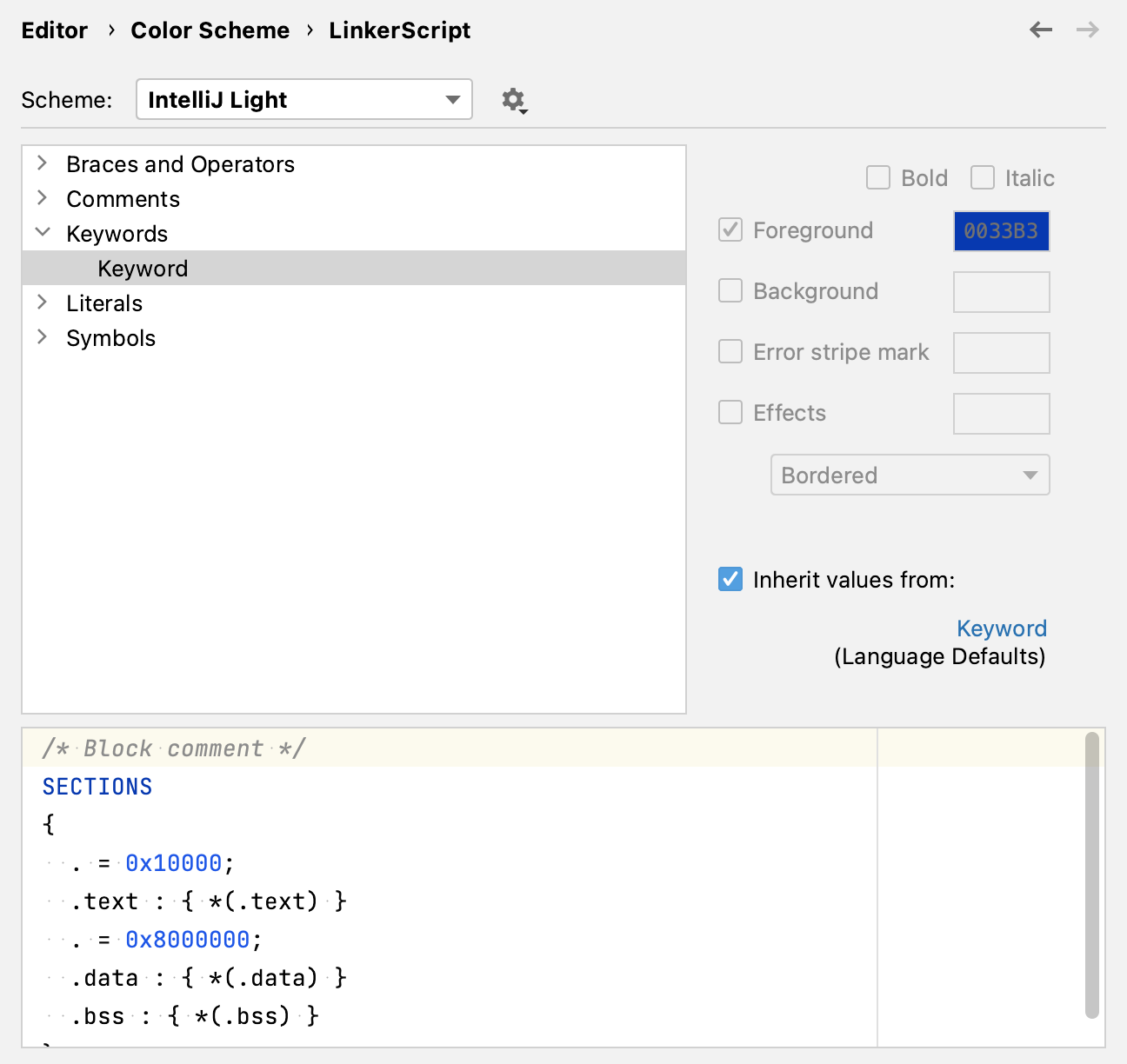

  To configure the color scheme for linker scripts, go to Settings | Editor | Color Scheme | LinkerScript:

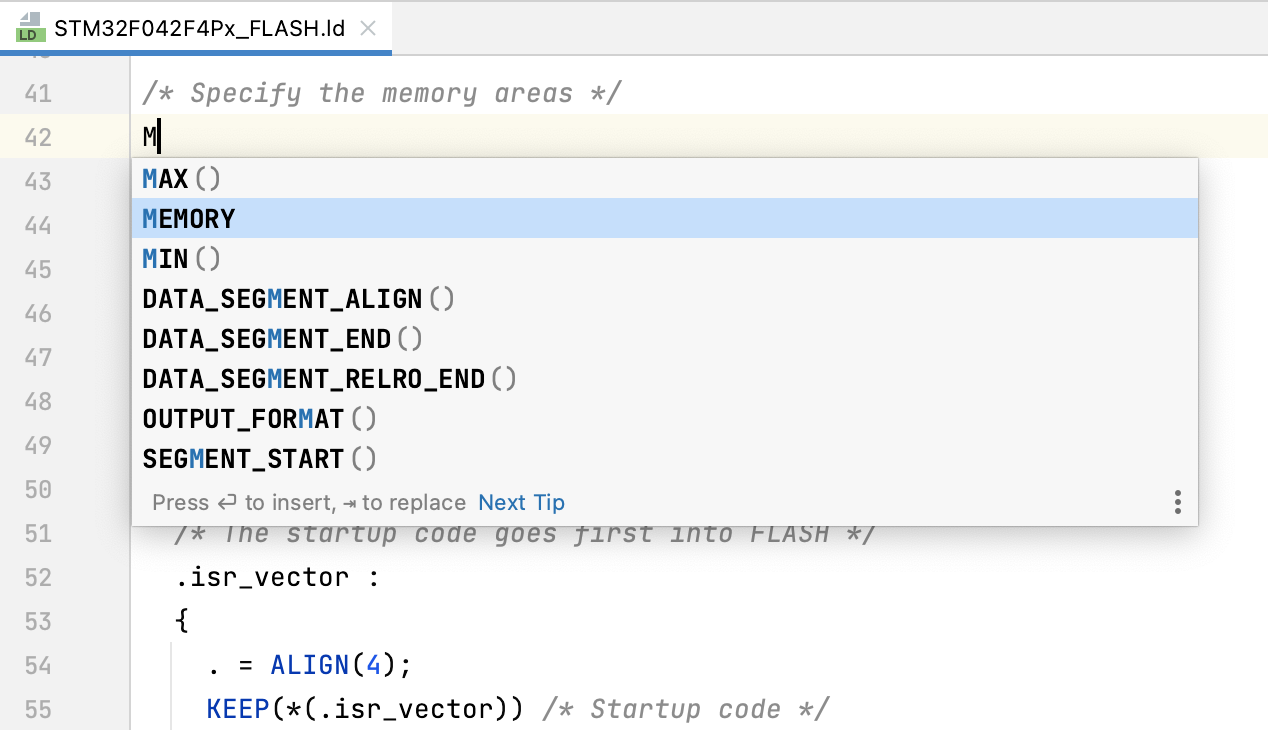

• Keywords completion

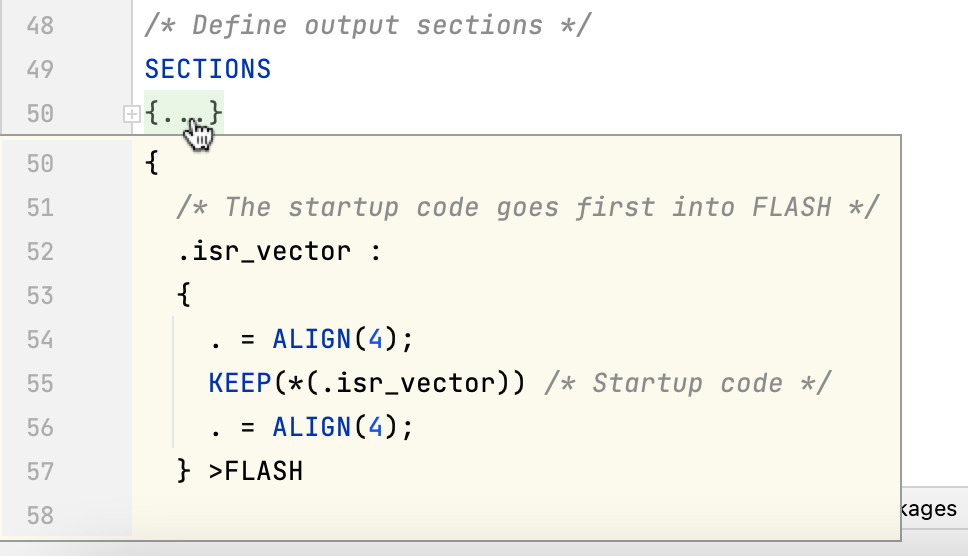

• Code folding

  Folding/unfolding is available for the sections, memory, and phdrs blocks:

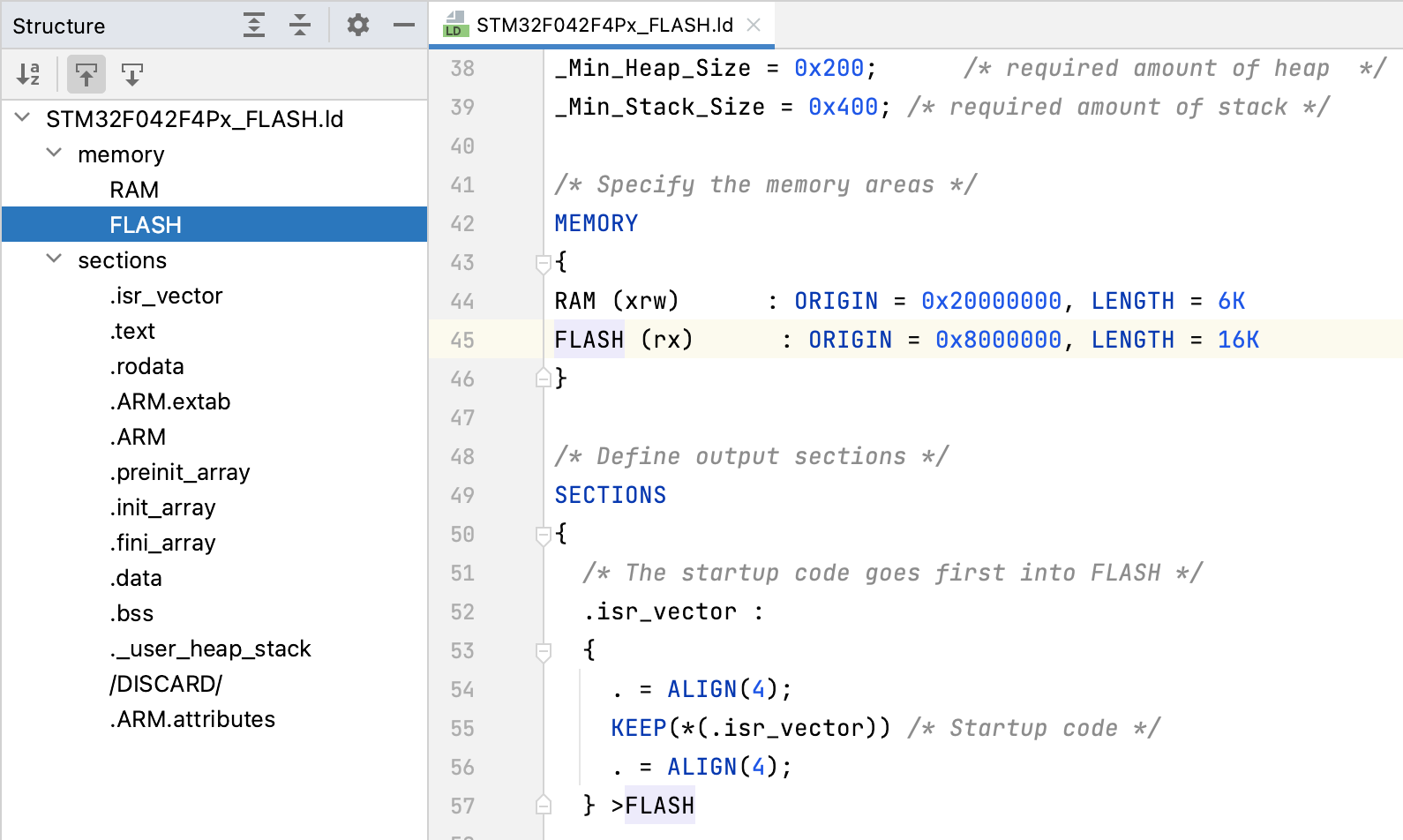

• Structure view

  To open the Structure view, press Alt+7 (for the tool window) or Ctrl+F12 (for the popup).

  In linker scripts, Structure shows the top-level commands, such as sections, memory, version, and phdrs:
